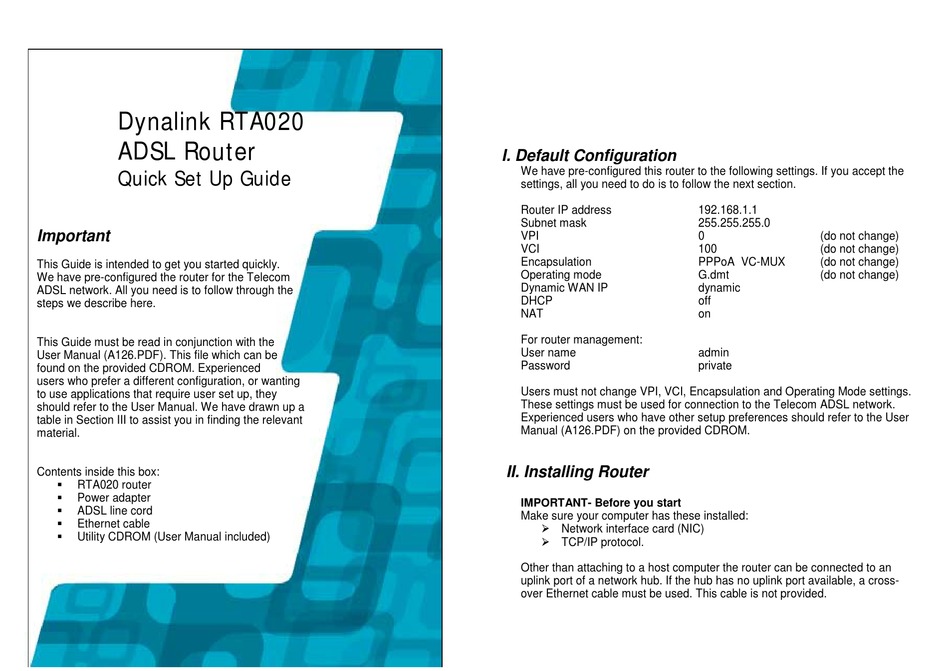

Dynalink RTA020

ADSL Router

Quick Set Up Guide
Important
This Guide is intended to get you started quickly.
We have pre-configured the router for the Telecom
ADSL network. All you need is to follow through the
steps we describe here.
This Guide must be read in conjunction with the
User Manual (A126.PDF). This file which can be
found on the provided CDROM. Experienced
users who prefer a different configuration, or wanting
to use applications that require user set up, they
should refer to the User Manual. We have drawn up a
table in Section III to assist you in finding the relevant
material.
Contents inside this box:
#
RTA020 router
#
Power adapter
#
ADSL line cord
#
Ethernet cable
#
Utility CDROM (User Manual included)
I. Default Configuration
We have pre-configured this router to the following settings. If you accept the
settings, all you need to do is to follow the next section.
Router IP address
Subnet mask
VPI
VCI
Encapsulation
Operating mode
Dynamic WAN IP
DHCP
NAT
For router management:
User name
Password
Users must not change VPI, VCI, Encapsulation and Operating Mode settings.
These settings must be used for connection to the Telecom ADSL network.
Experienced users who have other setup preferences should refer to the User
Manual (A126.PDF) on the provided CDROM.
II. Installing Router
IMPORTANT- Before you start
Make sure your computer has these installed:
! Network interface card (NIC)
! TCP/IP protocol.
Other than attaching to a host computer the router can be connected to an
uplink port of a network hub. If the hub has no uplink port available, a cross-
over Ethernet cable must be used. This cable is not provided.
192.168.1.1
255.255.255.0
0
(do not change)
100
(do not change)
PPPoA VC-MUX
(do not change)
G.dmt
(do not change)
dynamic
off
on
admin
private
