This chapter provides you the description for the LEDs and connectors on the front
and rear surface of the IAD. Before you use/install this wireless IAD, please take a
look at the information first.

Physical Outlook

Front Panel

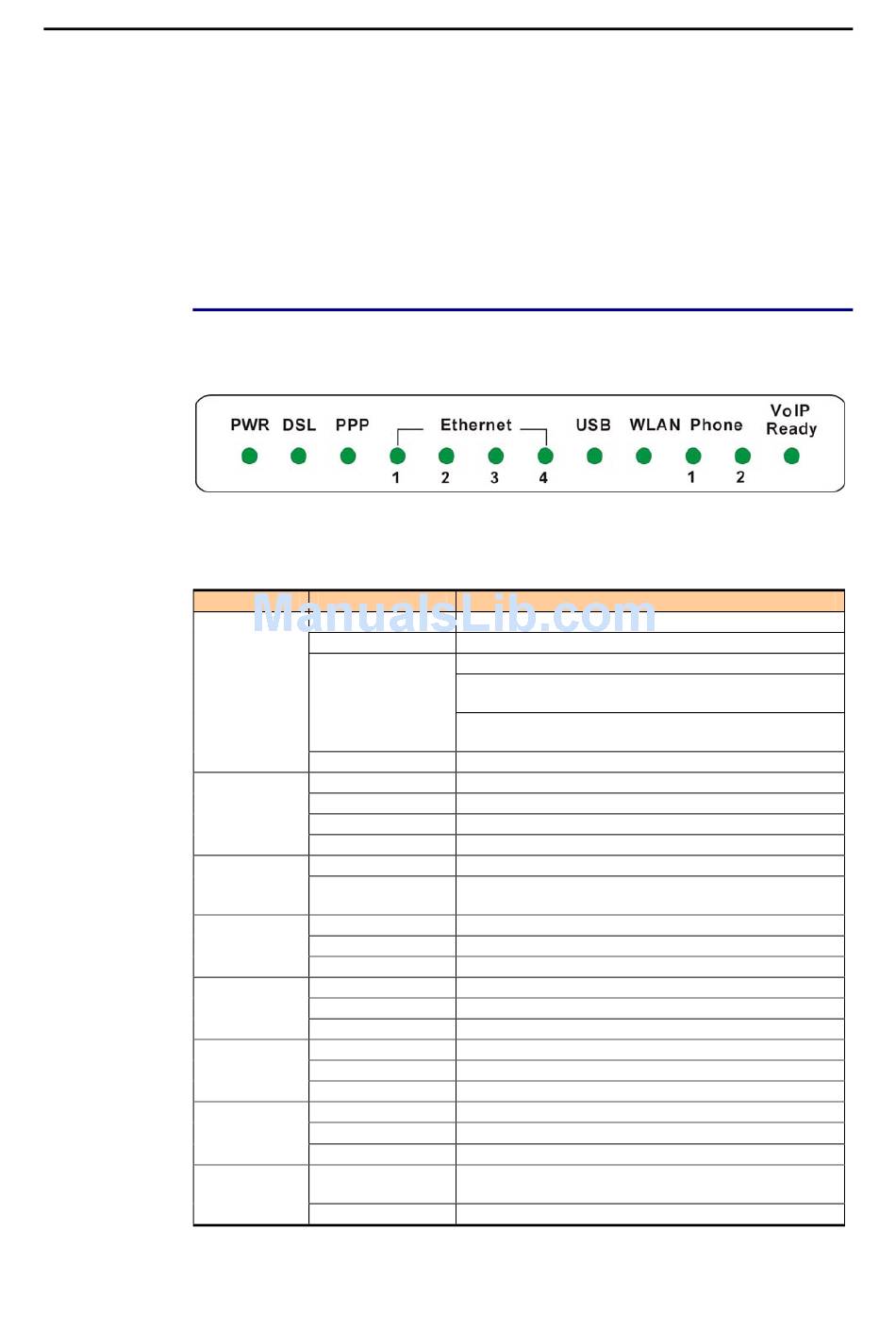

The following illustration displays the front panel of the Wireless IAD:
LED Indicators
The Wireless IAD is equipped with several LEDs on the front panel as described in
the table below:
Function Color
Off
Solid Green
Solid Red
Power
Flash Red
Off
Slow Flash Green
DSL
Fast Flash Green
Solid Green
Off
PPP
Solid Green
Off
Ethernet
Flash Green
Solid Green
Off
USB Flash Green
Solid Green
Off
WLAN Flash Green
Solid Green
Off
Flash Green
Phone 1 or 2
Solid Green
Off
VoIP Ready
Solid Green

Chapter 1: Overview

Definition
Power is off.
Power is on and the device operates normally.
Power on self-test in progress
The device enters the console mode of the boot
loader.
Power on self-test failure if the led always stays solid
red.
Firmware upgrades in progress
No DSL signal is detected.
DSL line is handshaking in progress
DSL line is training in progress
DSL line connection is up.
No PPPoA or PPPoE connection
At least one PPPoA or PPPoE connection is up. The
users can access the Internet now.
No Ethernet signal is detected.
User data is going through Ethernet port
Ethernet interface is ready to work.
No USB signal is detected.
User data is going through USB port
USB interface is ready to work.
No radio signal is detected.
User data is going through WLAN port
WLAN interface is ready to work.
The phone is on-hook or in PSTN mode.
There is one incoming VoIP phone call.
VoIP phone call is in use.
Voice over IP service is not ready. The users can
make PSTN phone calls only.
Voice over IP service is ready.
Chapter 1: Overview
