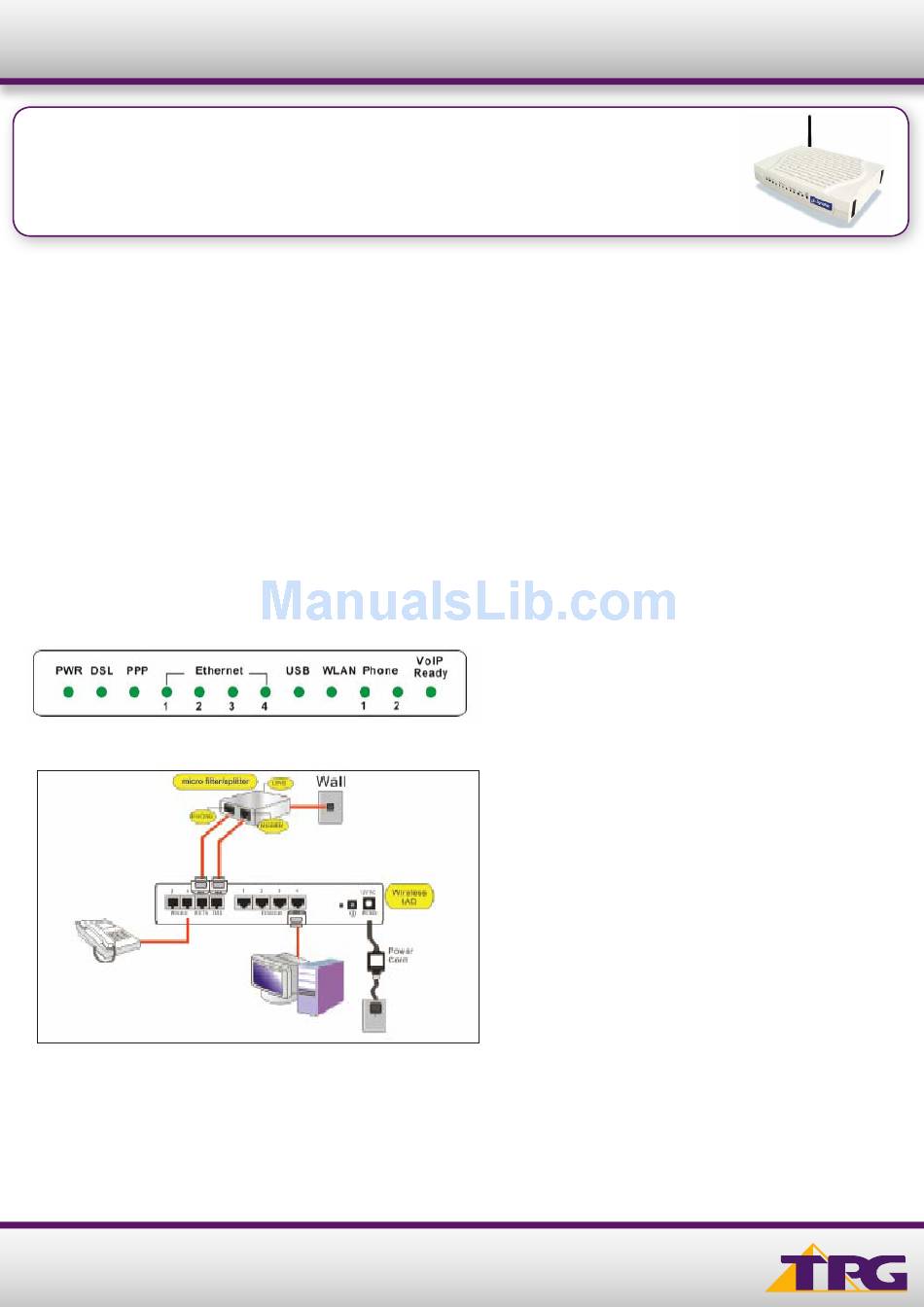

Modem Configuration Guide
Dynalink RTA1046VW
Configuring in Layer2 PPPoE for Windows XP and 2000
CONTENTS

1. Physical Connection

3. Configuring Internet connection in Layer2 PPPoE
PLEASE NOTE: Please have your router powered on and
connected directly to your PC via Ethernet cable before you begin
as these instruction are based on Ethernet
1. PHYSICAL CONNECTION
Front Panel
Back Panel
4
3
1. Power Supply
2. RJ45 Ethernet cable to the PC
3. PSTN Telephone handset connected to Phone1 port
– operating on VoIP (RJ11 connection)
4. RJ11 cable connecting PSTN port to Phone port on micro filter
5. RJ11 cable connecting DSL port to Modem port on micro filter
6. Line port of micro filter connecting to wall socket
6
5
2
1
Dynalink RTA1046VW
1
