QuickTouch Preset Handheld
Panel Presets

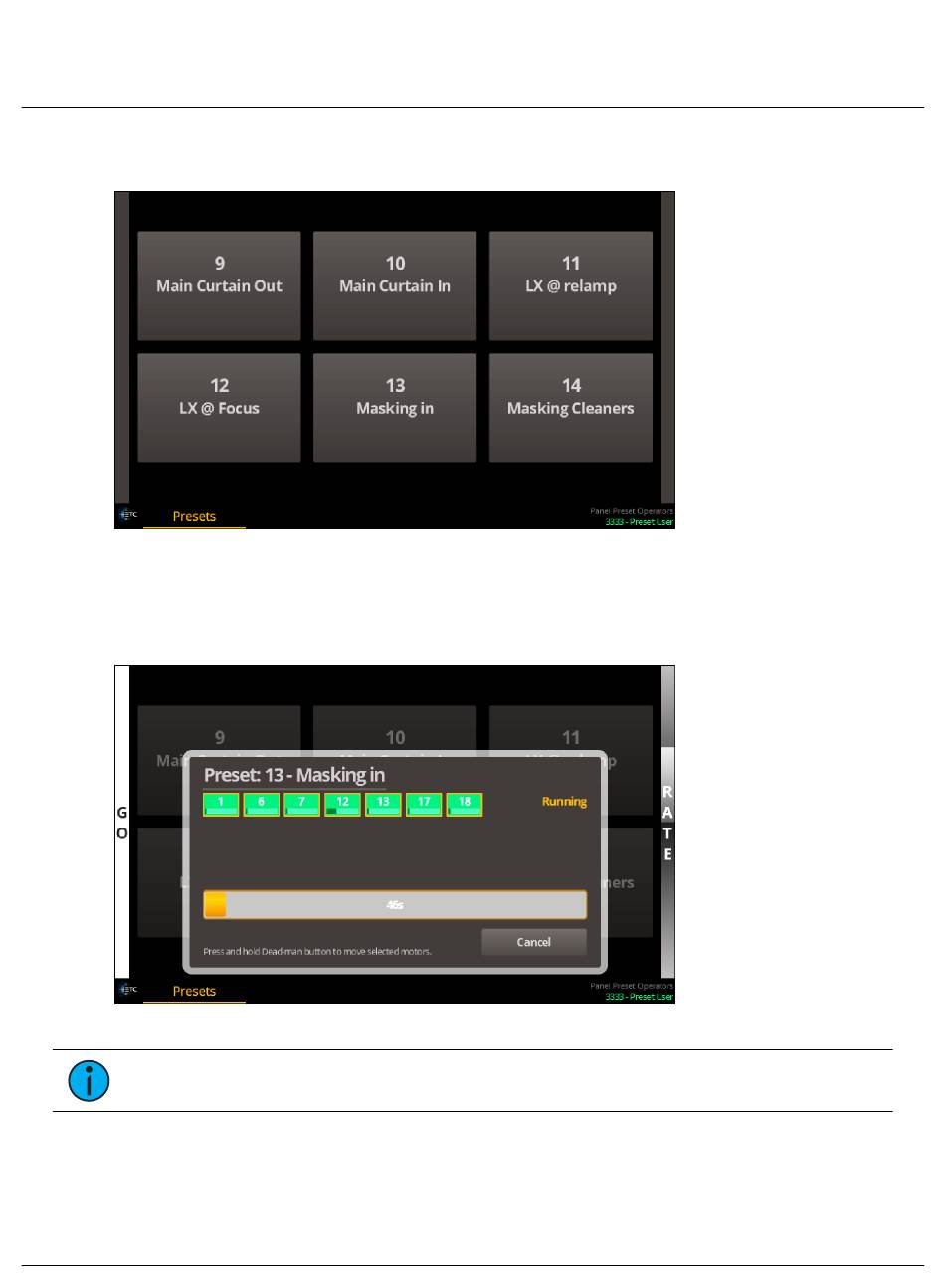

The Panel Presets screen contains a list of simple presets.
To run a preset, follow these steps:
1. Press the preset you want to open the preset dialog. The preset status of Loaded appears in
the upper right corner.
2. This dialog also displays icons for all of the motors required to move in the preset, as well as
progress bars while they are moving.
3. Press and hold the Deadman trigger to run the preset. The status changes to Running.
Note:
4. If you release the Deadman trigger during the preset move, the status changes to Paused and
the timer and progress bar stop. You can resume the preset whenever you want by pressing
and holding the Deadman trigger again.
5. Once the preset move is done the status changes to Finished and you can release the
Deadman trigger.
QuickTouch Preset Handheld
You can use the joystick to affect the rate of movement while running a preset.
