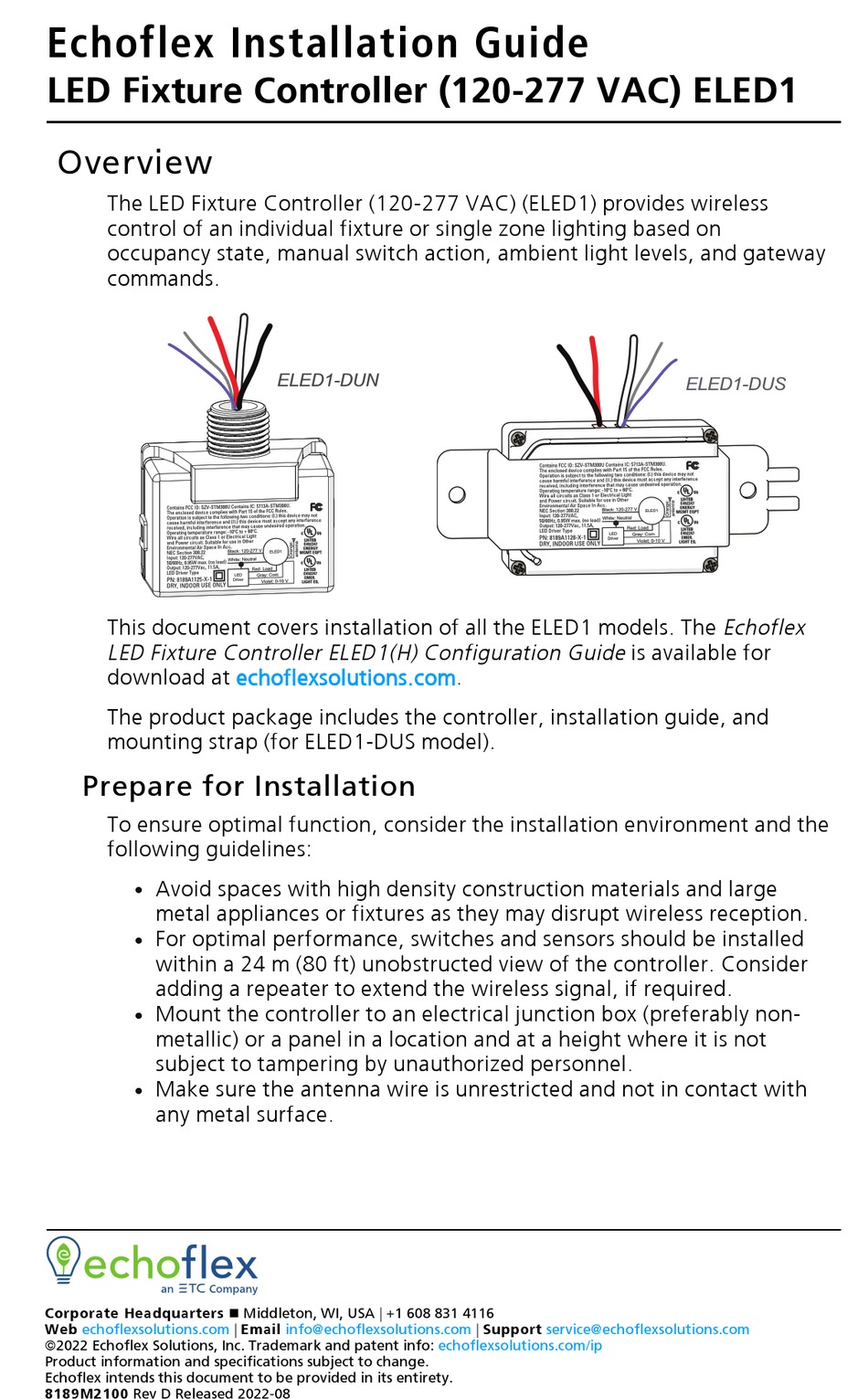

ETC Echoflex ELED1 Installation Manual

Echoflex Installation Guide
LED Fixture Controller (120-277 VAC) ELED1
Overview

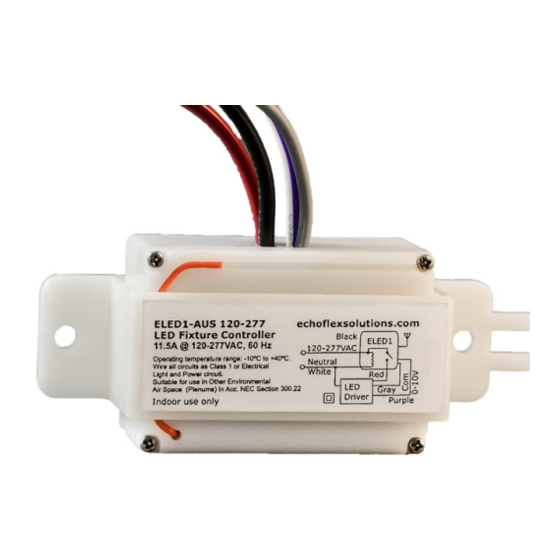

The LED Fixture Controller (120-277 VAC) (ELED1) provides wireless
control of an individual fixture or single zone lighting based on
occupancy state, manual switch action, ambient light levels, and gateway
commands.
This document covers installation of all the ELED1 models. The Echoflex
LED Fixture Controller ELED1(H) Configuration Guide is available for
download at echoflexsolutions.com.
The product package includes the controller, installation guide, and
mounting strap (for ELED1-DUS model).
Prepare for Installation
To ensure optimal function, consider the installation environment and the
following guidelines:
Avoid spaces with high density construction materials and large
•
metal appliances or fixtures as they may disrupt wireless reception.
For optimal performance, switches and sensors should be installed
•
within a 24 m (80 ft) unobstructed view of the controller. Consider
adding a repeater to extend the wireless signal, if required.
Mount the controller to an electrical junction box (preferably non-
•
metallic) or a panel in a location and at a height where it is not
subject to tampering by unauthorized personnel.
Make sure the antenna wire is unrestricted and not in contact with
•
any metal surface.
