SOFTWARE INSTALLATION

Before using the EVAL-ADAQ23875FMCZ, download and
install the ACE (Analysis, Control, Evaluation)
Download the software from
en/design-center/evaluation-hardware-and-software/ace-
software.html.
ACE is a desktop software application allowing the evaluation
and control of multiple evaluation systems across the Analog
Devices product portfolio. The installation process consists of the
ACE software installation and the
To ensure that the evaluation system is correctly recognized when
it is connected to the PC, install the
driver before connecting the EVAL-ADAQ23875FMCZ and the
SDP-H1 board to the USB port of the PC.
INSTALLING THE ACE
To install the ACE software, take the following steps:
1. Download the ACE
2. Double-click the ACEInstall.exe file to begin the
installation. By default, the software is saved to the
following location: C:\Program Files (x86) \Analog
Devices\ACE.
3. A dialog box appears asking for permission to allow the
program to make changes to the PC. Click Yes to begin the
installation process.

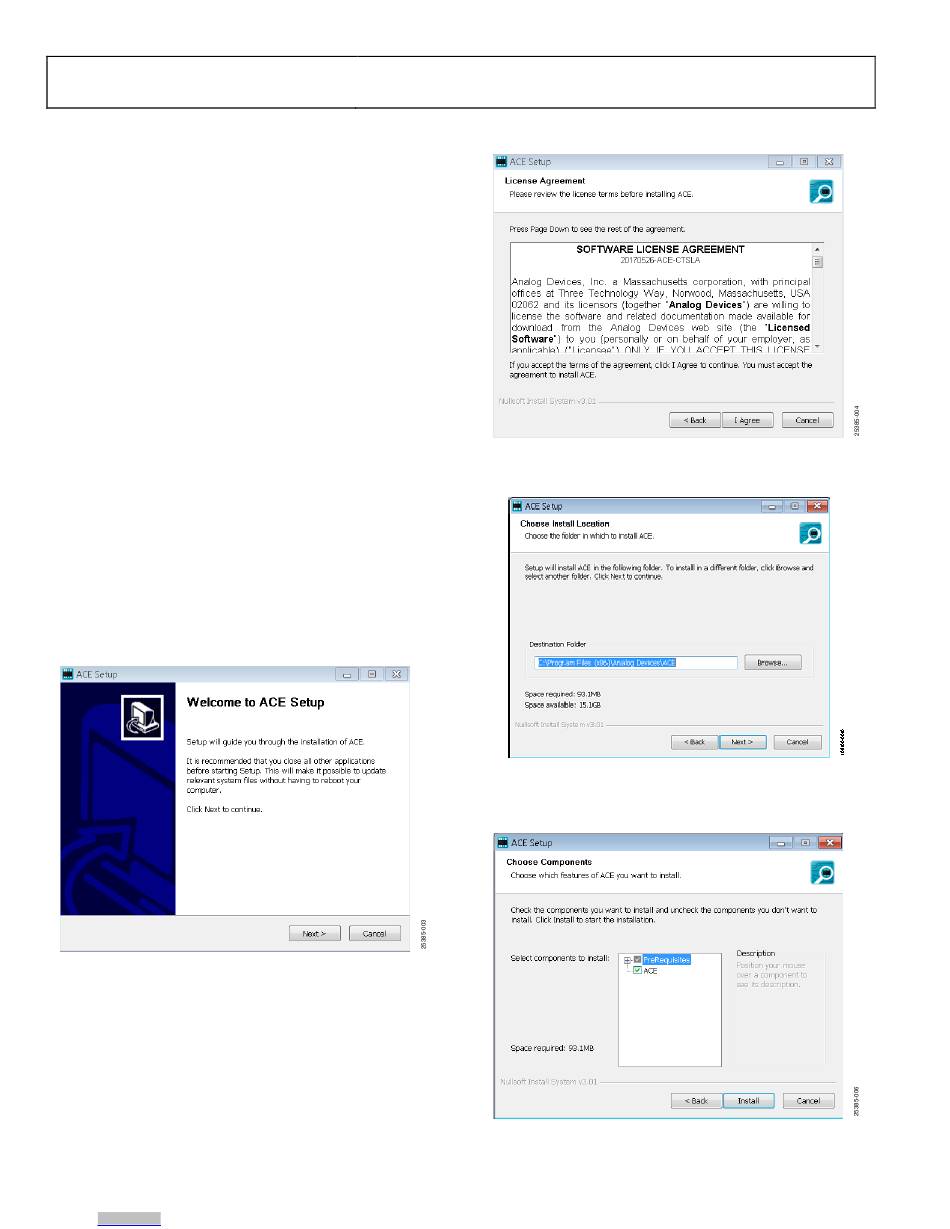

4. Click Next > to continue the installation, as shown in
Figure 3.
Figure 3. Evaluation Software Install Confirmation
5. Read the software license agreement and click I Agree (see
Figure 4).
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
software.
https://www.analog.com/
SDP-H1 driver installation.
ACE software and the
SOFTWARE
software to a Windows-based PC.
EVAL-ADAQ23875FMCZ
SDP-H1
6. Choose an installation location and click Next (see Figure 5).
7. Select the PreRequisites checkbox to include the installation
of the SDP-H1
Rev. 0 | Page 6 of 26
User Guide
Figure 4. License Agreement
Figure 5. Choose Install Location
driver. Click Install (see Figure 6).
Figure 6. Choose Components
