8-2
Chapter 8: Verifying Calibration
Section 8.3
Verifying Voltage
Inputs (INI4vi only)
Section 8.4
Service
User's Manual Pub. 0300128-04 Rev. A

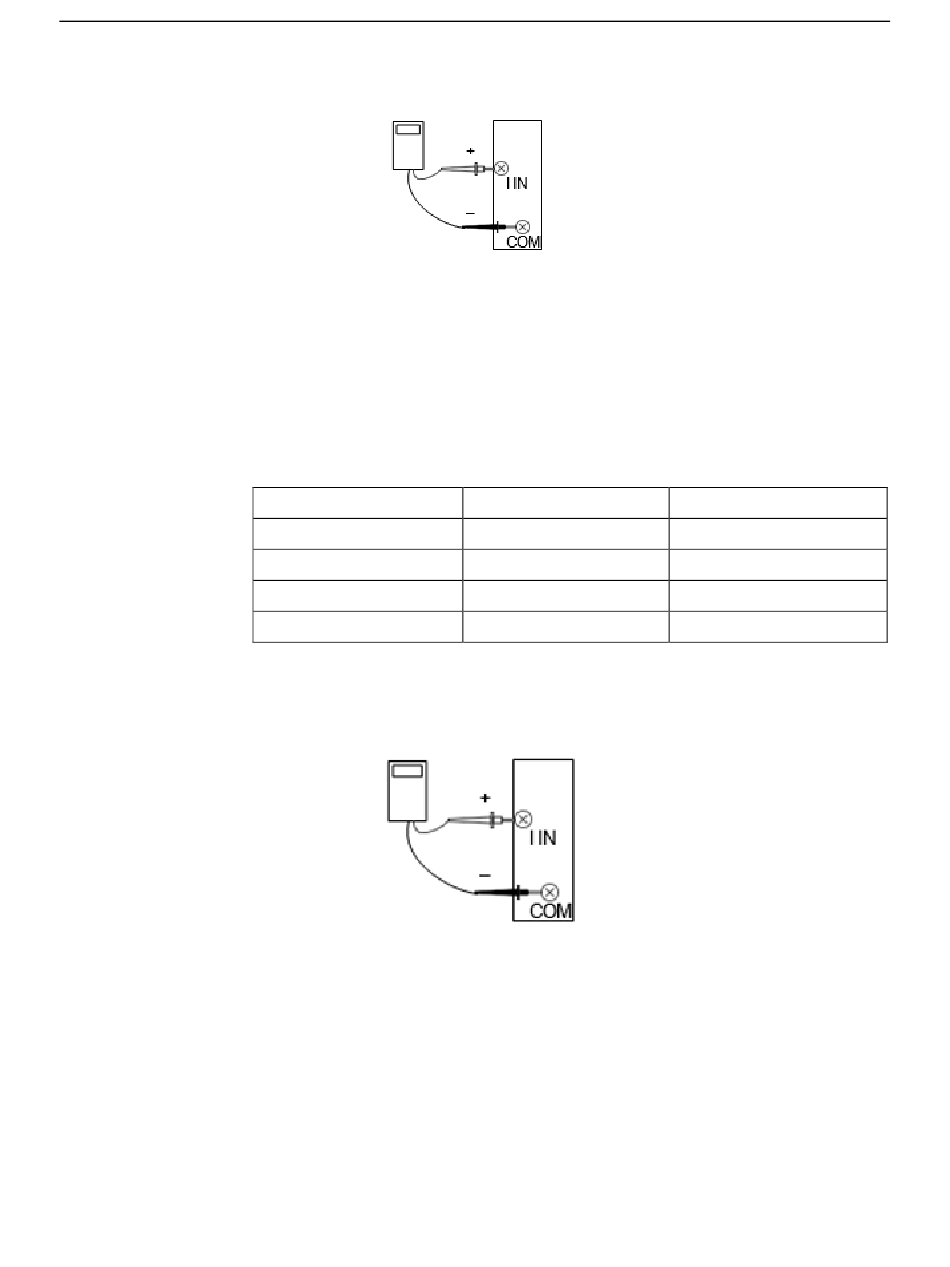

3. Use the precision input source to provide a 15 mA input across a
channel's input terminals.
4. Verify that the input data is between 15110 and 15260 counts.
5. Repeat steps 3 and 4 for each remaining channel.
To verify:
1. Configure your module for ±10 V input on all 4 channels using the
following configuration word values:
Address
O:e.0
O:e.1
O:e.2
O:e.3
e = slot number
2. Let the operating temperature stabilize for 2 minutes.
3. Use the precision input source to provide a 10 VDC input across a
channel's input terminals.
4. Verify that the input data is between 31805 and 32131 counts.
5. Repeat steps 3 and 4 for each remaining channel.
If the input data is out of range, call the Spectrum Controls Technical Services to
make arrangements for returning your module for factory calibration.
Binary Value
0000 0000 0010 0001
0000 0000 0010 0001
0000 0000 0010 0001
0000 0000 0010 0001
Decimal Equivalent
33
33
33
33
