To remove the terminal block, unscrew the two retaining screws at the top and
bottom of the terminal block, and using a screwdriver or needle-nose pliers,
carefully pry the terminal block loose.

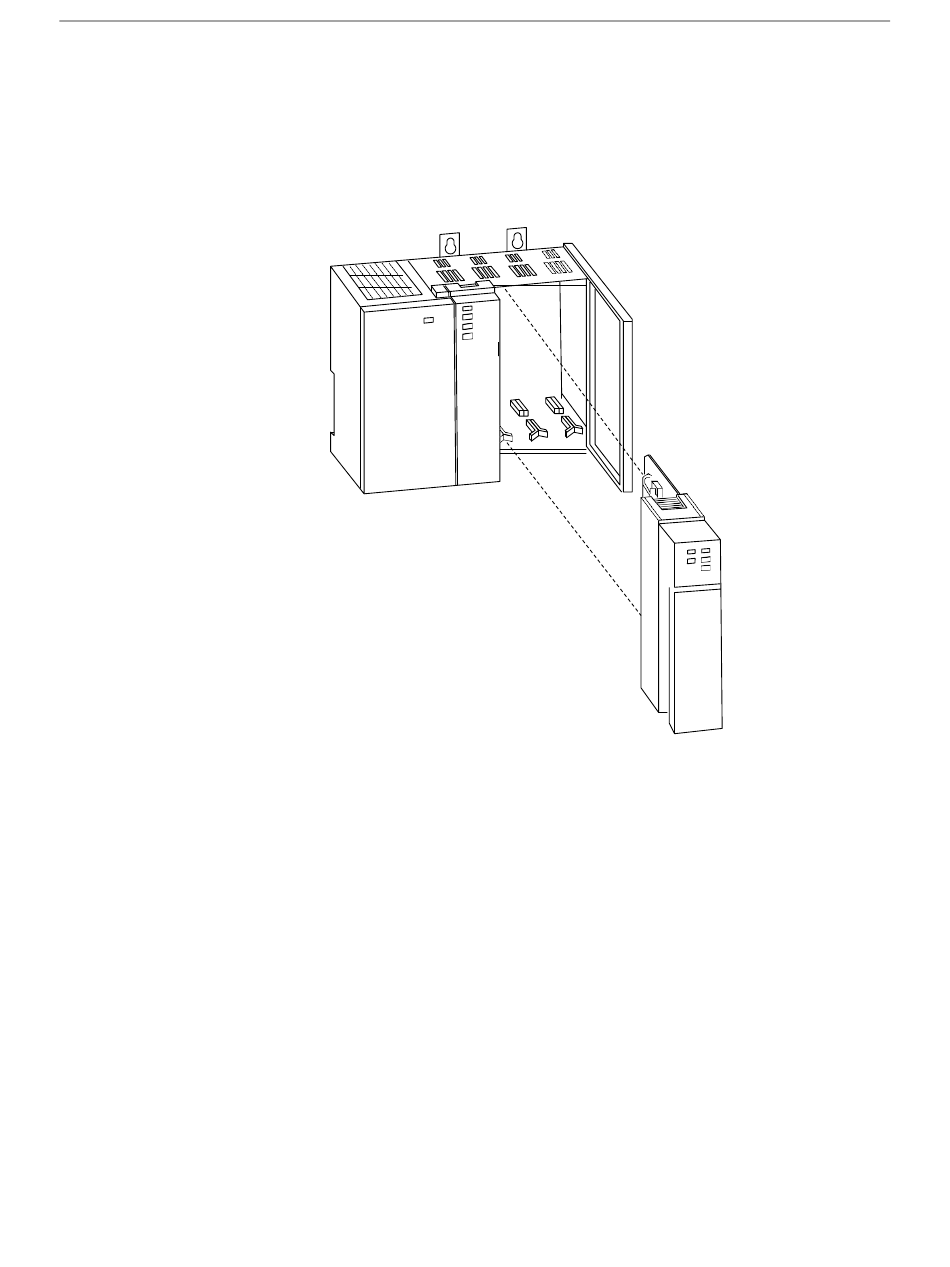

To insert your module into the rack, follow these steps:
1. Align the circuit board of your module with the card guides at the top
2. Slide your module into the chassis until both top and bottom retaining
3. Cover all unused slots with the Card Slot Filler, Allen-Bradley part
4. To remove your module, press the retaining clips at the top and bottom
Section 2.8
Wiring Your
Module
To wire the terminal block, you need:
Chapter 2: Installation and Wiring
and bottom of the chassis.
clips are secure. Apply firm even pressure on your module to attach it to
its backplane connector. Never force your module into the slot.
number 1746-N2.
of your module and slide it out.
A small, flat-blade screwdriver.
Belden 8761 (shielded, twisted pair) cable or equivalent.
User's Manual Pub. 0300266-04 Rev. A
2-5
