3-6
Chapter 3: Configuring the 1746sc-INI4I
Section 3.4 Auto-Calibration Time
User's Manual Pub. 0300128-04 Rev. A

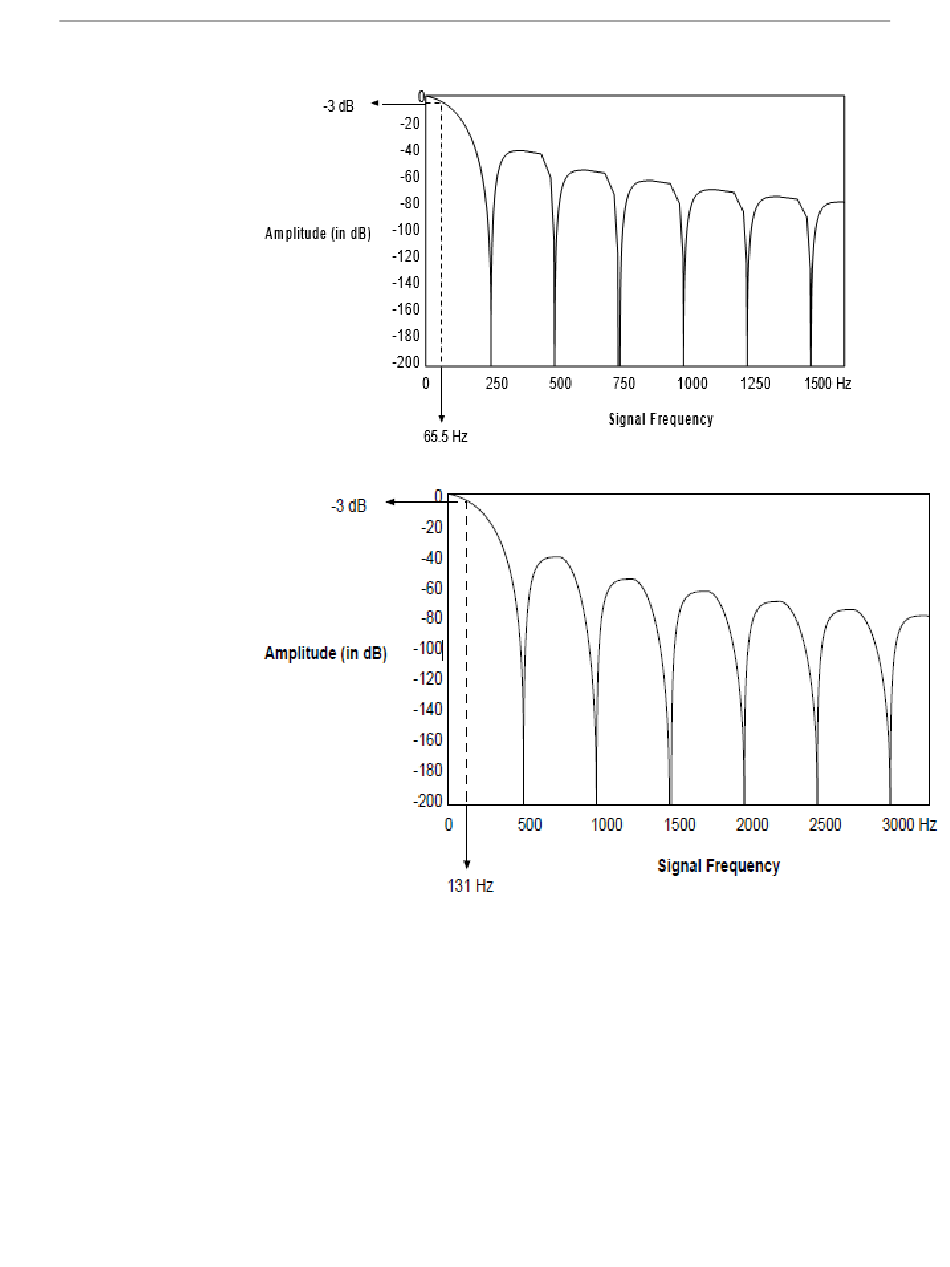

Figure 3-5. Signal Attenuation with 250 Hz Input Filter
Figure 3-6. Signal Attenuation with 500 Hz Input Filter
Your module requires some time to auto-calibrate a channel. During this time,
your module cannot sample and convert input signals. The following table shows
the time required for auto-calibration. When enabled, auto- calibration occurs
every 10 seconds for each channel, independently.
