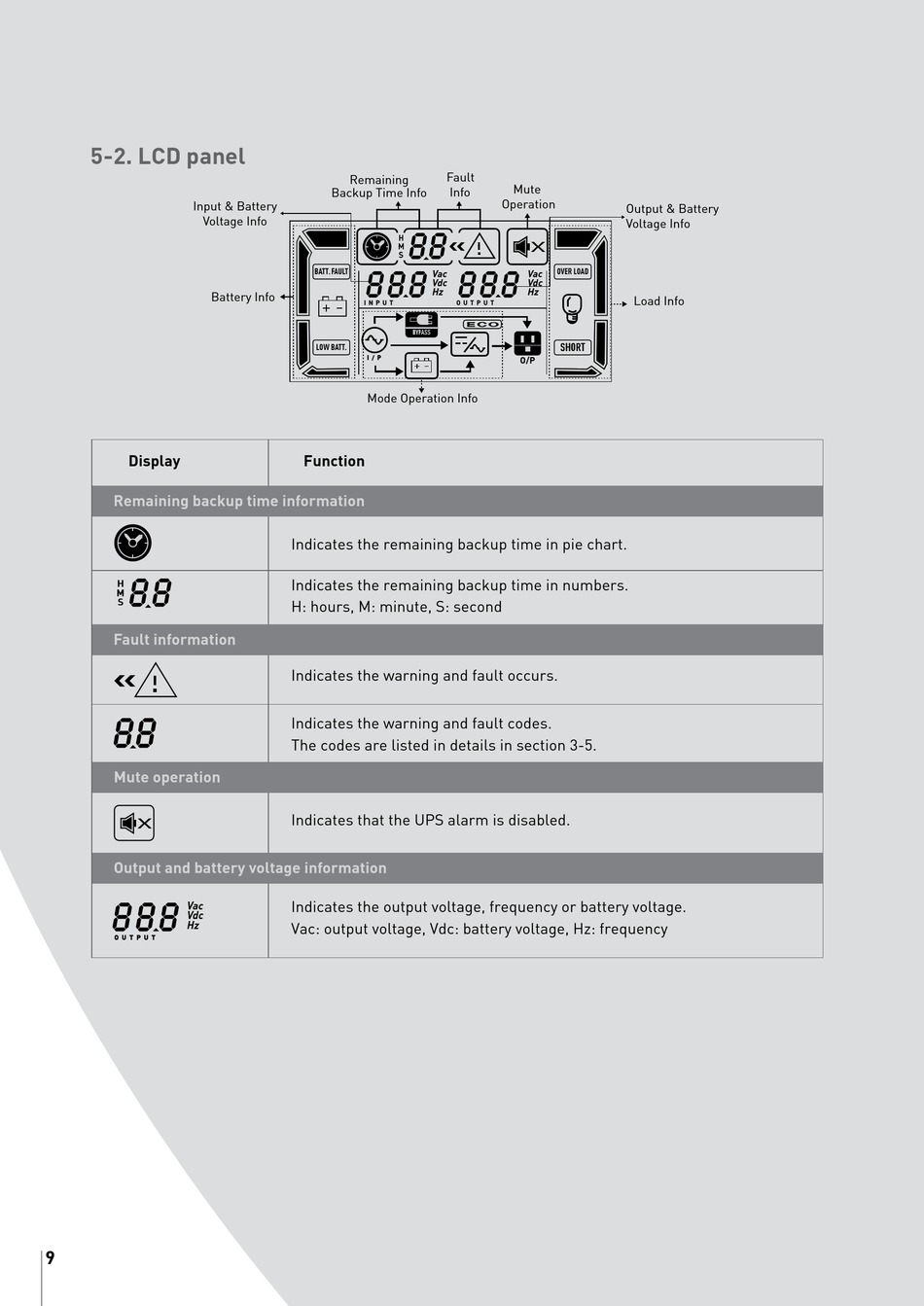

5-2. LCD panel

Input & Battery
Voltage Info
Battery Info
Display
Remaining backup time information
88
H
M
S
Fault information
88
Mute operation
Output and battery voltage information
888
Vac
Vdc
Hz
O U T P U T
9
Fault
Remaining
Info
Backup Time Info
88
H
M
S
888 888
BATT. FAULT
Vac
Vdc
Hz
I N P U T O U T P U T
BYPASS
LOW BATT.
I / P
Mode Operation Info
Function
Indicates the remaining backup time in pie chart.
Indicates the remaining backup time in numbers.
H: hours, M: minute, S: second
Indicates the warning and fault occurs.
Indicates the warning and fault codes.
The codes are listed in details in section 3-5.
Indicates that the UPS alarm is disabled.
Indicates the output voltage, frequency or battery voltage.
Vac: output voltage, Vdc: battery voltage, Hz: frequency
Mute
Operation
Output & Battery
Voltage Info
X
OVER LOAD
Vac
Vdc
Hz
Load Info
SHORT
O/P
