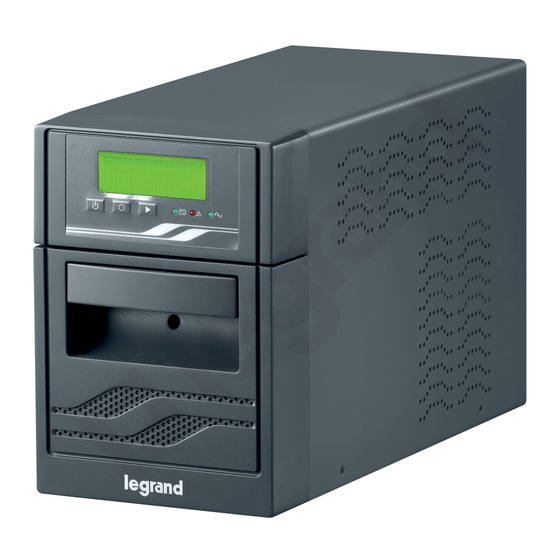

Summary of Contents for LEGRAND Niky S 1 kVA

  • Page 1: Table Of Contents

    Niky S 1-1.5-2-3 kVA Niky S 1-1.5-2-3 kVA Index 1 Introduction 2 Conditions of use 3 Installation 4 Signals and controls 5 Overload and automatic shutdown 6 Features 7 Changing batteries 8 Possible malfunctioning 9 Technical features...
  • Page 2: Introduction

    ® ® 1 Introduction This manual contains information for users of the Niky S 1-1.5-2-3 kVA models. You are advised to read this handbook carefully before installing your uninterruptible power supply, meticulously following the instructions given herein. The UPS Niky S is only been made for civil or industrial use; it is not in conformity with the standards for electro-medical equipment.
  • Page 3: Installation

    Niky S 1-1.5-2-3 kVA 3 Installation • Take your UPS out of its packing. • Make sure the mains supply voltage is identical to the one indicated in the label placed on the rear of the UPS. • Switch the UPS on by pressing the ON/OF button until the buzzer emits a sound and check it operates correctly with the mains (green LED on), and the display is on without alarm notifications.
  • Page 4: Overload And Automatic Shutdown

    ® 5 Overload and automatic shutdown Your UPS is equipped with a system to measure the power delivered at the outlet; when this exceeds the set thresholds, the protection and relative signals are activated; shutdown is automatic with a delay in relation to the size of the overload. Under the line mode the green led will be light.
  • Page 5 Software is available as on option for Win98/ME/2000, Novell and Linux, from the website www. ups.legrand.com without charge. User license is included in the product. Telephone protection The Niky S UPS has an integrated, standard RJ11/RJ45 passing telephone connectionthat provides...
  • Page 6: Changing Batteries

    ® 7 Changing batteries Caution Opening, repairing, or replacing parts inside the UPS must always be carried out by specialized technical personnel only. First of all, switch off the UPS with the ON/OFF button located on the front panel, then unplug the power cable from the 230V outlet socket. 1) Switch off the uninterruptible power supply.
  • Page 7: Possible Malfunctioning

    Niky S 1-1.5-2-3 kVA 8 Possible malfunctioning The UPS always operates on batteries: • There is no line voltage • Line voltage is out of allowed UPS range • The power supply cable is not correctly connected to mains socket. •...
  • Page 8: Technical Features

    ® 9 Technical features CONSTRUCTION SPECIFICATIONS 3 100 06 3 100 20 3 100 07 3 100 08 Weights 13 Kg 15 Kg 22 Kg 24 Kg Dimensions L x H x P in mm 242 x 169 x 361 242 x 169 x 464 Electronic protection against overloading and short-circuiting.
  • Page 9 Niky S 1-1.5-2-3 kVA 9 Technical features CONSTRUCTION SPECIFICATIONS 3 100 06 3 100 20 3 100 07 3 100 08 Electrical specifications on output with battery operation Rated output voltage 230 V ± 10 % Output frequency 50/60 Hz ± 1Hz Active output capacity on non-linear load 600W 900W...
  • Page 10 ® 9 Technical features 8 1 9 10 11 12 8. Batteries exhausted notification 9. Bypass notification 10. Mains voltage low notification 1. Mains LED 11. Mains voltage too high notification 2. Alarm LED 12. UPS output present notification 3. ON button 13.
