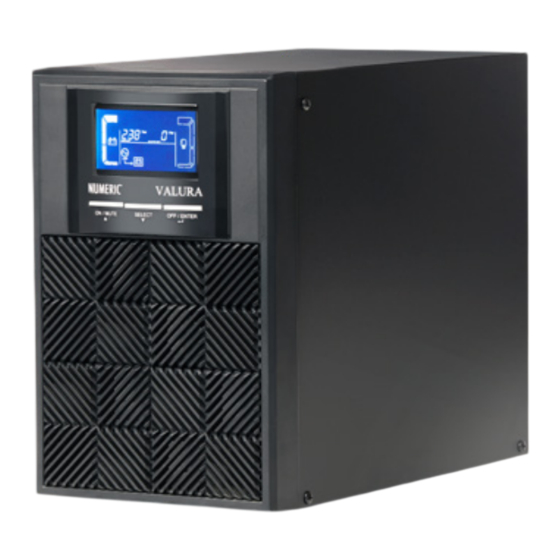

- Page 1 USER AND INSTALLATION MANUAL NEW ENERGY TO POWER Valura 1-3 kVA In-built Battery...
- Page 2 PREFACE. Congratulations, we are delighted to welcome you to our family of customers. Thank you for choosing Numeric as your power backup solution provider. You now have access to our widest network of 250+ service centers in the country. Since 1984, Numeric has been enabling its clients to optimize their business with top notch power solutions that promise seamless and clean power with controlled environmental footprints.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Index Page 1. Important Safety Warning 1-1. Transportation 1-2. Preparation 1-3. Installation 1-4. Operation 1-5. Maintenance, service and faults 2. Installation and setup 2-1. Rear panel view 2-2. Operating principle 2-2. Setup the UPS 3. Operations 3-1. Button operation 3-2. -
Page 4: Important Safety Warning
1. Important Safety Warning Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and carefully read the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully. 1-1. -
Page 5: Operation
1-4. Operation Do not disconnect the mains cable on the UPS system or the building wiring outlet (shockproof socket outlet) • during operations since this would cancel the protective earthing of the UPS system and of all connected loads. The UPS system features its own, internal current source (batteries). The UPS output sockets or output •... -
Page 6: Installation And Setup
2. Installation and setup NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use. 2-1. Rear panel view INTELLIGENT SLOT INTELLIGENT SLOT INTELLIGENT SLOT CIRCUIT OUTPUT... -
Page 7: Setup The Ups
2-2. Setup the UPS Step 1 UPS input connection Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension cords. Step 2 UPS output connection For socket-type outputs, simply connect devices to the outlets. • For terminal-type input or outputs, please follow below steps for the wiring configuration: •... - Page 8 Battery replacement NOTICE: This UPS is equipped with internal batteries and user can replace the batteries with shutting down the UPS and connected loads. Replacement is a safe procedure, isolated from electrical hazards. CAUTION!! Consider all warnings, cautions, and notes before replacing batteries. Note: Upon battery disconnection, equipment is not protected from power outages.
-
Page 9: Operations
3. Operations 3-1. Button operation Button Function Turn on the UPS: Press and hold ON/Mute button for at least 2 seconds to turn on the UPS. • Mute the alarm: When the UPS is on battery mode, press and hold this button for at least 5 •... - Page 10 Display Function Remaining backup time information Indicates the remaining backup time in pie chart. Indicates the remaining backup time in numbers. H: hours, M: minute, S: second Fault information Indicates that the warning and fault occurs. Indicates the warning and fault codes, and the codes are listed in details in 3-5 section.
-
Page 11: Audible Alarm
Battery information Indicates the Battery level by 0-25%, 26-50%, 51-75%, and 76-100%. Indicates a battery fault. Indicates low battery level and low battery voltage. Input & Battery voltage information Indicates the input voltage or frequency or battery voltage. Vac: Input voltage, Vdc: battery voltage, Hz: input frequency 3-3. -
Page 12: Ups Setting
3-5. UPS Setting Parameter 1 There are three parameters to set up the UPS. Parameter 1: 888 888 It’s for program alternatives. Refer to below table. Parameter 2 and parameter 3 are the setting options or values for each program. Parameter 2 Parameter 3 01: Output voltage setting... - Page 13 03: Output frequency setting Interface Setting Parameter 2 & 3: Output frequency setting. You may set the initial frequency on battery mode: BAT 50: presents output frequency is 50Hz BAT 60: presents output frequency is 60Hz O U T P U T If converter mode is enabled, you may choose the following output frequency: CF 50: presents output frequency is 50Hz...
- Page 14 06: Bypass enable/disable when UPS is off Interface Setting Parameter 3: Enable or disable Bypass function. You may choose the following two options: ENA: Bypass enable DIS: Bypass disable (Default) BYPASS 07: Bypass voltage range setting Interface Setting Parameter 2 & 3: S Parameter 2 & 3: Set the acceptable high voltage point and acceptable low voltage point for Bypass mode by pressing the Down key or Up key.
-
Page 15: Operating Mode Description
09: Total battery AH Interface Setting Parameter 3: Set up total battery AH value of the UPS. (unit: AH) 7-999: setting the total battery capacity from 7 to 999. Please set up this figure if external battery pack is connected. If the UPS is standard model, the default setting is 9AH. -
Page 16: Faults Reference Code
Operating mode Description LCD display UPS is powered off and no output supply power, Standby mode I N P U T O U T P U T but still can charge batteries. I / P 3-7. Faults Reference Code Fault event Fault code Icon Fault event... -
Page 17: Troubleshooting
4. Troubleshooting If the UPS system does not operate correctly, please solve the problem by using the table below. Symptom Possible cause Remedy The AC input power is not Check if the input power cord is connected well. firmly connected to the mains. No indication and alarm even though the mains is normal. - Page 18 Symptom Possible cause Remedy A UPS internal fault has occurred. There are two possible results: Fault code is shown as 01, 02, 03, The load is still supplied, 04, 11, 12, 13, 41 and 45 on LCD Contact your dealer but directly from AC power display and alarm is continuously sounding.
-
Page 19: Storage And Maintenance
5. Storage and Maintenance Operation The UPS system contains no user-serviceable parts. If the battery service life (3~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. In this case, please contact your dealer. Be sure to deliver the used battery to a recycling facility or ship it to your dealer in the replacement battery packing material. -
Page 20: Specifications
6. Specifications Tower (Inbuilt battery UPS) PARAMETERS 1KVA 2KVA 3 KVA Topology True online double conversion UPS Output power capacity 800 W 1600 W 2400 W INPUT Phase Single phase 160VAC/ 140VAC/ 120VAC/ 110VAC ±5% (Ambient temperature <35*C) Low line transfer (based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0) 175VAC/ 155VAC/ 135VAC/ 125VAC ±... - Page 24 Head Office 10th Floor, Prestige Center Court, Office Block, Vijaya Forum Mall, 183, N.S.K Salai, Vadapalani, Chennai - 600 026. Phone: +91 44 4656 5555 Lucknow Pune Regional Offices 209/B, 2nd Floor, Cyber Heights, Pinacle 664 park avenue, 8th floor, New Delhi Vibhuti Khand, Gomti Nagar, Plot no 102+103, CTS No.
