- Page 1 USER MANUAL HP i 33 10-30 kVA NEW ENERGY TO POWER www.numericups.com Cover Page_Front...
-
Page 2: Table Of Contents
Table of Contents Introduction 1.1 HP i 33 10-30 kVA 1.2 Functions and features Safety 2.1 Safety notes 2.2 Description Installation 3.1 Unpack check list 3.2 Cabinet outlook 3.3 LCD control panel 3.4 Installation notes 3.5 External protective devices 3.6 Power cables 3.7 Power cable connection 3.8 Battery connection 3.9 UPS parallel installation... -
Page 3: Introduction
1. INTRODUCTION TABLE OF CONTENTS Thank you for choosing our product. UPS Description Our company is specialized in the design, development and production of Uninterruptible Power Supplies (UPS). The UPS described in this manual is a high quality, meticulously designed product, built to guarantee the best Operation performance. -
Page 4: Hp I 33 10-30 Kva

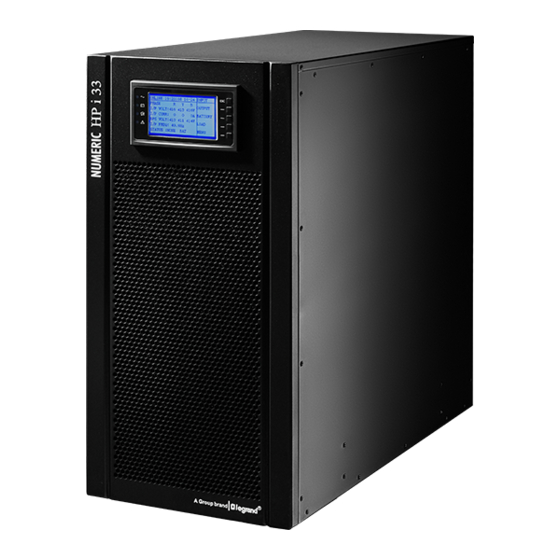

1.1 HP i 33 10-30 kVA Intelligent Charging Method • HP i 33 UPS adopts advanced three-stage charging method: HP i 33 10-30 kVA series (VFI-SS-111 Type) UPS is a three-in/three-out high frequency online UPS. 1st stage: High current constant current charging to guarantee to charge back to 90% The UPS can solve most of the power supply problems, such as blackout, over-voltage, under-voltage, sudden 2nd-stage: Constant voltage to vitalize battery and make sure batteries are fully charged... -
Page 5: Safety
2. SAFETY 2.2 Description of the symbols used in the manual and labels applied to the UPS Important Safety Instructions • Dangerous high voltage and high temperature exist inside the UPS. Study the operation and maintenance WARNING manual. Abide by the instructions and relative laws during the installation to avoid accidents and equipment This symbol points out the risk of electrical shock if the instructions are not followed. -
Page 6: Installation
3．INSTALLATION Communication Panel 3.1 Unpack Check list 3.1.1 Don’t lean the UPS when moving it out from the packaging 3.1.2 Check the appearance to see if the UPS is damaged or not during the transportation, do not switch on the UPS if any damage is found. Please contact the dealer. Check the accessories according to the packing list and contact the dealer in case of missing parts. -
Page 7: Installation Notes
3.4 Installation Notes The highest altitude that UPS may work normally with full load is 1500 meters. The load capacity should be reduced when this UPS is installed in places whose altitude is A minimum open space of at least 100 cm. should be left in the front and back of the cabinet to provide for higher than 1500 meters, as shown in the following table operation and maintenance. -
Page 8: Power Cables
3.6 Power Cable 3.7 Power Cable Connection The cable design shall comply with the voltage and current provided in this section. Kindly follow local wiring Connect the power cables only after the equipment has been finally positioned and practices and take into consideration the environmental conditions. secured, as per the procedure described here. -
Page 9: Battery Connection
3.8 Battery Connection Terminal sequence from left to right: Ground, battery positive, battery neutral, battery negative, input phase R(L1), bypass phase R(L1), input phase Y(L2), bypass phase Y(L2), input phase B(L3), bypass phase B(L3), input 10-30 kVA neutral line, output phase R(L1), output phase Y(L2), output phase B(L3), output neutral line and ground. The UPS adopts positive and negative double battery framework, totally 20 blocks (optional 16/18) in Choose appropriate power cable with adequate provision of diameter of the connection terminal of the cable series. -
Page 10: Ups Parallel Installation
CAUTION WARNING Ensure correct polarity battery string series connection. i.e. inter-tier and inter-block connections Make sure the N, R (L1), Y (L2), B (L3) lines are correct and grounding are from (+) to (-) terminals. Don’t mix batteries with different capacities or different brands, or is well-connected. -
Page 11: Computer Access
3.10 Computer Access • Connect one end of a USB cable to the computer and the other end to the USB Port on the UPS • On the main page of Muser4000, click the button of ‘APPEND’, which opens • Open the software Muser4000, click ‘SYSTEM’... -
Page 12: Ups Description
5. OPERATION 4. UPS DESCRIPTION The purpose of this UPS is to ensure a perfect supply voltage for the devices connected to it, whether main 5.1 Operation Modes power is present or not. After connection and power up, the UPS generates a sinusoidal alternating voltage The UPS is a double-conversion online UPS that may operate in the following alternative modes: with stable amplitude and frequency, regardless of any sudden change or variation in the main supply. -
Page 13: Turn On/Off Ups
5.2 Turn ON/OFF UPS 5.2.2 Test Procedure 5.2.1 Restart procedure CAUTION • Set the Battery Breaker to the ‘ON’ It may take 60 seconds to boost up the system and perform self-test completely, if the UPS • Switch ON UPS input Bypass switch is operating normally. -
Page 14: Cold Start Procedure
CAUTION When the battery is normal, the rectifier starts operating, 30 seconds later, the inverter starts operating and the battery LED is switched on. Never attempt to switch the UPS back to normal operation until you have verified that there are no internal faults in the UPS CAUTION •... -
Page 15: Parallel Setting
CAUTION 5.2.6 Parallel Setting After changing the parallel system ID, the connection between Muser4000 and • Connect the UPS with computer. Power on the UPS. equipment might be interrupted. If it occurs, please reconnect in accordance • Open Muser4000 software, after connecting with the UPS successfully, click ‘SYSTEM’->’USER SET’ with the instruction described before. - Page 16 08:08:08 13-01 MAIN 08:08:08 13-01 TURN ON 08:08:08 13-01 TO BPS 08:08:08 13-01 NO O/P LOAD: PBATT: 270v TURN ON LOAD: PBATT: 270v CONFIRM LOAD: PBATT: 270v LOAD: PBATT: 270v I/P VOLT: 380 380v I/P VOLT: 380 380v I/P VOLT: 380 380v I/P VOLT: 380 380v...
- Page 17 Alarm Information 08:08:08 13-01 AUDIO 08:08:08 13-01 AUDIO LOAD: PBATT: 270v ALARM ON LOAD: PBATT: 270v ALARM OFF Display message Meaning I/P VOLT: 380 380v I/P VOLT: 380 380v 0/P VOLT: 380 380v DETAIL 0/P VOLT: 380 380v DETAIL Relay of parallel circuit must be turned on when the systems are in parallel and PAR RLY ERR I/P FREQ: 50.0Hz I/P FREQ: 50.0Hz...
-
Page 18: Options
Alarm Information 5.4 Options Optional Isolation Transformer INIT FAIL This warning will occur when the procedure of initialization is wrong LBS LOSS Two parallel systems are not in synchronized SOFTSTART ERR Rectifier could not be started due to low DC BUS voltage MAIN-P ERROR Wrong phase rotation on the mains input (rectifier input) BUS UNBALANCE... - Page 19 DB9 interface: Connect to upper control terminal. The definition of the pins is defined The slot called SNMP supports the MEGA Tec protocol. We advise that Net Agent II-3 Port is another tool to remotely monitor and manage any UPS system. Net Agent II-3 Port supports the modem Dial-in (PPP) function as below: to enable the remote control via the internet when the network is unavailable.
-
Page 20: Maintenance
6. MAINTENANCE APPENDIX 1 PROBLEMS AND SOLUTIONS CAUTION All the maintenance operations should be done by authorized Numeric UPS Technical In case the UPS does not work normally, it might be a case of wrong installation, wiring or operation. Please Service Personnel. -
Page 21: Appendix 2 Usb Communication Port Definition
APPENDIX 2 S.No. Problem Possible reason Solution USB COMMUNICATION PORT DEFINITION Battery LED is flashing but Battery breaker does not switch Switch on the battery breaker. Definition of port: no charge voltage and current on, or batteries are damaged, or If batteries are damaged, need battery is reversely connected. -
Page 22: Appendix 3 Rs232 Communication Port Definition
APPENDIX 4 APPENDIX 3 RS232 COMMUNICATION PORT DEFINITION RS485 COMMUNICATION PORT DEFINITION Definition of Male port ： Definition of port: RS232 port and UPS RS232 port RS232 port and UPS RS232 port Connection between PC PC RS232 port UPS RS232 port Pin 2 Pin 2 UPS send, PC receive... -
Page 23: Appendix 5 Dry Contact Port Communication Port Definition
APPENDIX 5 APPENDIX 6 DRY CONTACT PORT COMMUNICATION PORT DEFINITION REPO INSTRUCTION Definition of Male port: Definition of port: Connection diagram ： Instruction: Connection between the button and UPS REPO port. Description Button UPS REPO Description Pin1 UPS Battery Low Pin 1 Pin 1 Pin2... -
Page 24: Appendix 7 Layout Of Bottom
APPENDIX 7 LAYOUT OF BOTTOM... - Page 25 Head Office 10th Floor, Prestige Center Court, Office Block, Vijaya Forum Mall, 183, N.S.K. Salai, Vadapalani, Chennai - 600 026. Phone: +91 44 4656 5555 Regional Offices New Delhi Kolkata A 25, 1st Floor, Mohan Co-Operative Plot No. KB22, Bhakta Tower, Industrial Estate, Mathura Road, 2nd &...
