3. Operations

3-1. Button Operation

Button Function
•
ON/Enter Button
•
•
OFF/ESC Button
•
•
Test/Up Button
•
•
Mute/Down
Button
•
Test/Up + Mute/ •
Down Button
* CVCF mode means converter mode.

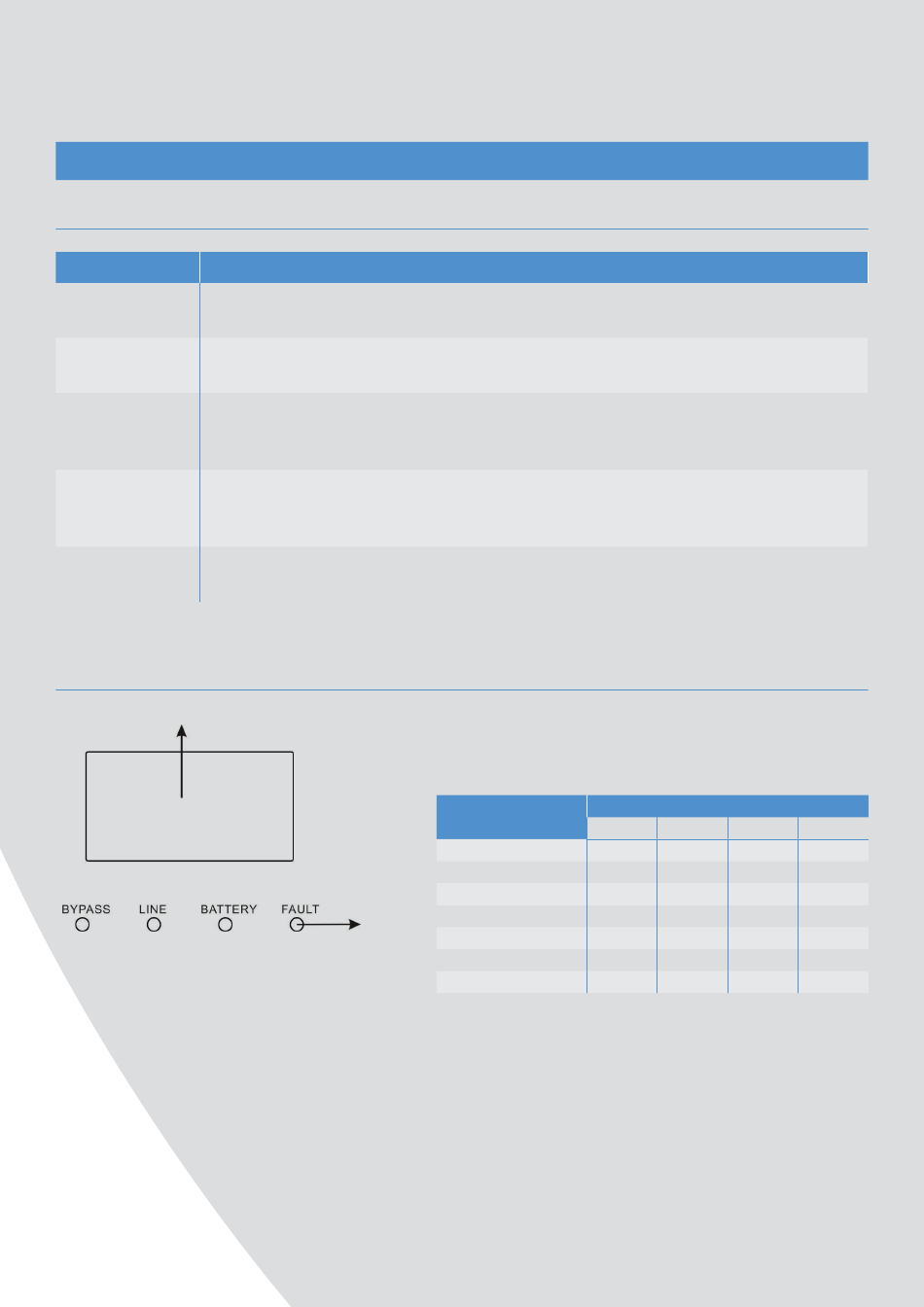

3-2. LED Indicators and LCD Panel

LCD panel
10
Turn on the UPS: Press and hold the button more than 1s to turn on the UPS.
Enter Key: Press this button to confirm the selection in setting menu.
Turn off the UPS: Press and hold the button more than 1s to turn off the UPS.
Esc key: Press this button to return to last menu in setting menu.
Battery test: Press and hold the button more than 1s to test the battery while in AC mode,
or CVCF mode.
UP key: Press this button to display next selection in setting menu.
Mute the alarm: Press and hold the button more than 1s to mute the buzzer. Please refer
to section 3-4 "Mute the buzzer" for details.
Down key: Press this button to display previous selection in setting menu.
Press and hold both buttons simultaneously for more than 1 second to enter or exit the
setting menu.
LED
indicators
LED Indicators:
There are 4 LEDs on front panel to show the UPS working
status:
Mode
Bypass
UPS Startup
l
Bypass mode
l
AC mode
¡
Battery mode
¡
CVCF mode
¡
Battery Test
l
Fault
¡
Note: l means LED is lighting, and ¡ means LED is faded.
LED
Line Battery Fault
l l l
¡ ¡ ¡
l ¡ ¡
¡ l ¡
l ¡ ¡
l l ¡
¡ ¡ l
