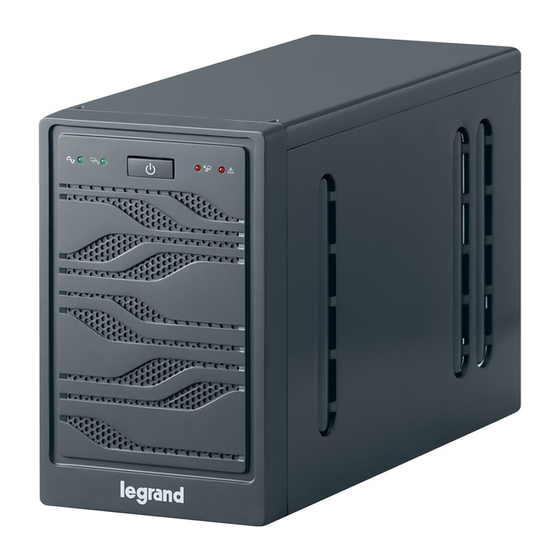

- Page 1 Niky 1000/1500 Index 1 Introduction 2 Conditions of use 3 Installation 4 Signals and controls 5 Overload and self-shutdown 6 Features 7 Changing batteries 8 Possible malfunctioning 9 Technical features...
-
Page 2: Conditions Of Use
® ® 1 Introduction This manual contains information for users of the Niky 1000/1500 models. You are advised to read this handbook carefully before installing your uninterruptible power sup- ply, meticulously following the instructions given herein. The UPS NIKY is only been made for civil or industrial use; it is not in conformity with the standards for electro-medical equipment. -
Page 3: Installation
Niky 1000/1500 3 Installation • Take your UPS out of its packing. • Make sure the mains supply voltage is identical to the one indicated in the label placed on the rear of the UPS. • Switch on your UPS with the ON/OFF button and check it operates correctly with the mains (green LED on). -
Page 4: Overload And Self-Shutdown
® 5 Overload and self-shutdown Your UPS is equipped with a system to measure the power delivered at the outlet; when this ex- ceeds the set thresholds, the protection and relative signals are activated; shutdown is automatic with a delay in relation to the size of the overload. Under the line mode the green led will be light. -
Page 5: Changing Batteries
UPS and control the operating system unattended shutdown. Software is available as on option for Win98/ME/2000, Novell and Linux, from the website www.ups.legrand.com without charge. User license is included in the product. Telephone protection The NIKY UPS has an integrated, standard RJ11/RJ45 passing telephone connectionthat provides protection for telephone or network equipment (modem, telephones, etc.) against overvoltage. -
Page 6: Possible Malfunctioning
® 8 Possible malfunctioning The UPS always operates on batteries: • There is no line voltage • Line voltage is out of allowed UPS range • The power supply cable is not correctly connected to mains socket. • The input circuit breaker has to be reset •... -
Page 7: Technical Features
Niky 1000/1500 9 Technical features 3 100 05 3 100 04 CONSTRUCTION SPECIFICATIONS 3 100 13 3 100 14 3 100 26 3 100 27 Weights 13 Kg. 16 Kg. Dimensions L x H x P in mm 147 x 239 x 354 Electronic protection against overloading and short-circuiting. - Page 8 ® 9 Technical features 3 100 05 3 100 04 CONSTRUCTION SPECIFICATIONS 3 100 13 3 100 14 3 100 26 3 100 27 Electrical specifications on output with battery operation Rated output voltage 230 V ± 10 % Output frequency 50/60 Hz ±...
- Page 9 Niky 1000/1500 9 Technical features 3 100 04 3 100 13 3 100 26 3 100 05 3 100 14 3 100 27 1 Status Leds 2 Power Switch 3 Telephone, fax, modem or network protection 4 Output sockets 5 AC Input with AC Fuse...
