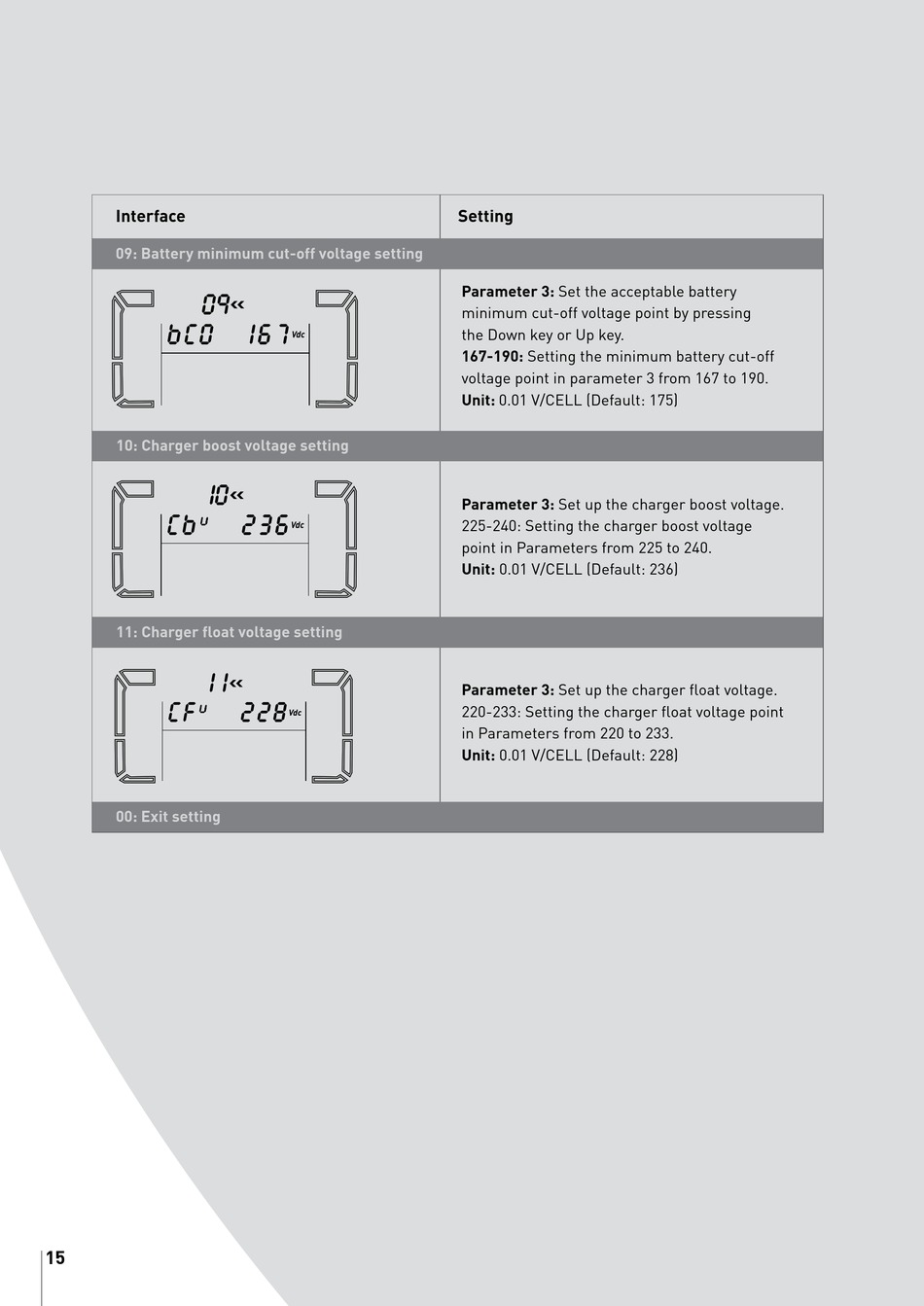

Interface
09: Battery minimum cut-off voltage setting
09
bC0
10: Charger boost voltage setting
10
Cb
u
11: Charger float voltage setting
1 1
CF
u
00: Exit setting
15
167
Vdc
236
Vdc
228
Vdc
Setting
Parameter 3: Set the acceptable battery
minimum cut-off voltage point by pressing
the Down key or Up key.
167-190: Setting the minimum battery cut-off
voltage point in parameter 3 from 167 to 190.
Unit: 0.01 V/CELL (Default: 175)
Parameter 3: Set up the charger boost voltage.
225-240: Setting the charger boost voltage
point in Parameters from 225 to 240.
Unit: 0.01 V/CELL (Default: 236)
Parameter 3: Set up the charger float voltage.
220-233: Setting the charger float voltage point
in Parameters from 220 to 233.
Unit: 0.01 V/CELL (Default: 228)
