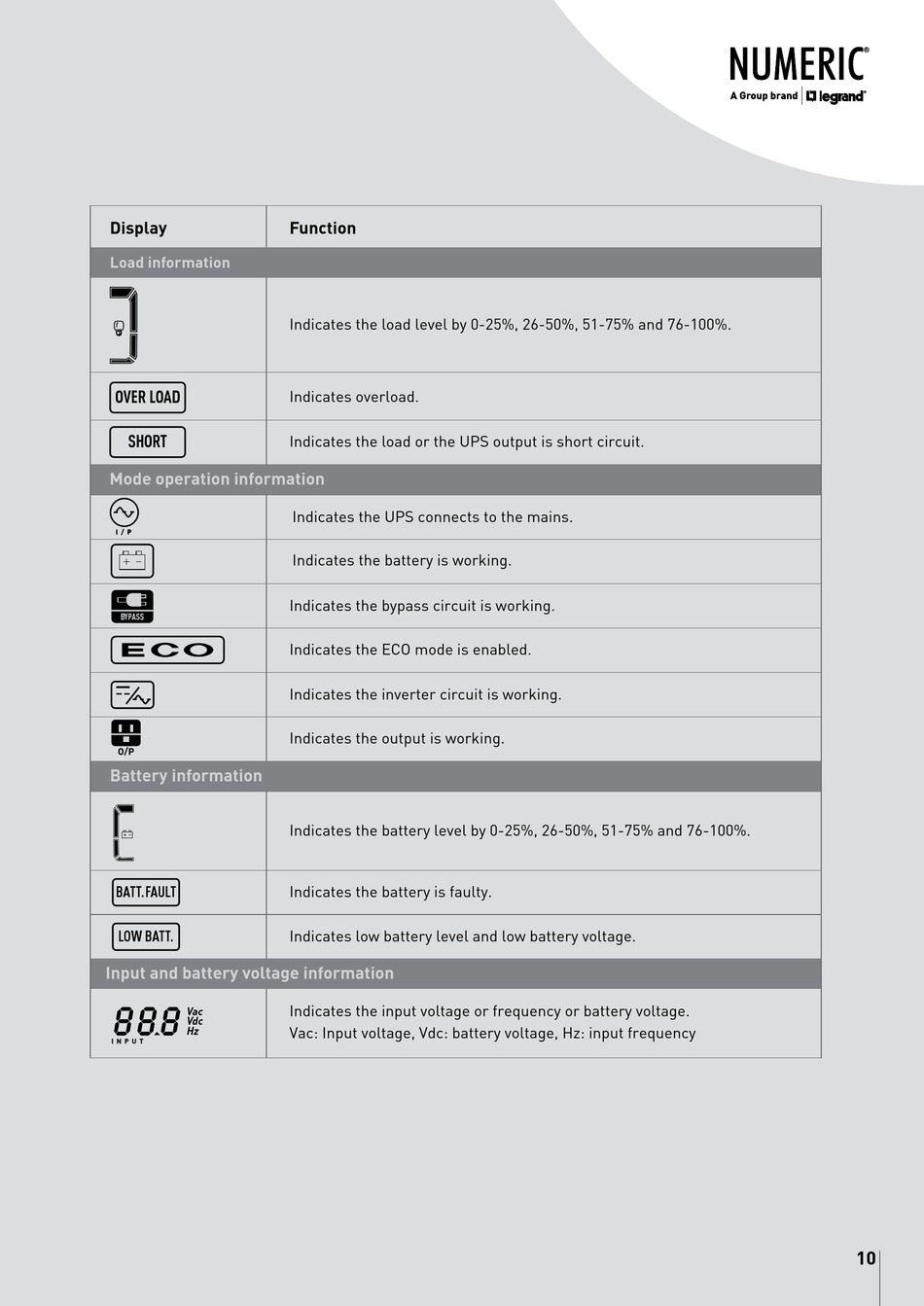

Display
Load information
OVER LOAD
SHORT
Mode operation information
I / P
BYPASS
O/P
Battery information
BATT.FAULT
LOW BATT.
Input and battery voltage information
888
Vac
Vdc
Hz
I N P U T
Function
Indicates the load level by 0-25%, 26-50%, 51-75% and 76-100%.
Indicates overload.
Indicates the load or the UPS output is short circuit.
Indicates the UPS connects to the mains.
Indicates the battery is working.
Indicates the bypass circuit is working.
Indicates the ECO mode is enabled.
Indicates the inverter circuit is working.
Indicates the output is working.
Indicates the battery level by 0-25%, 26-50%, 51-75% and 76-100%.
Indicates the battery is faulty.
Indicates low battery level and low battery voltage.
Indicates the input voltage or frequency or battery voltage.
Vac: Input voltage, Vdc: battery voltage, Hz: input frequency
