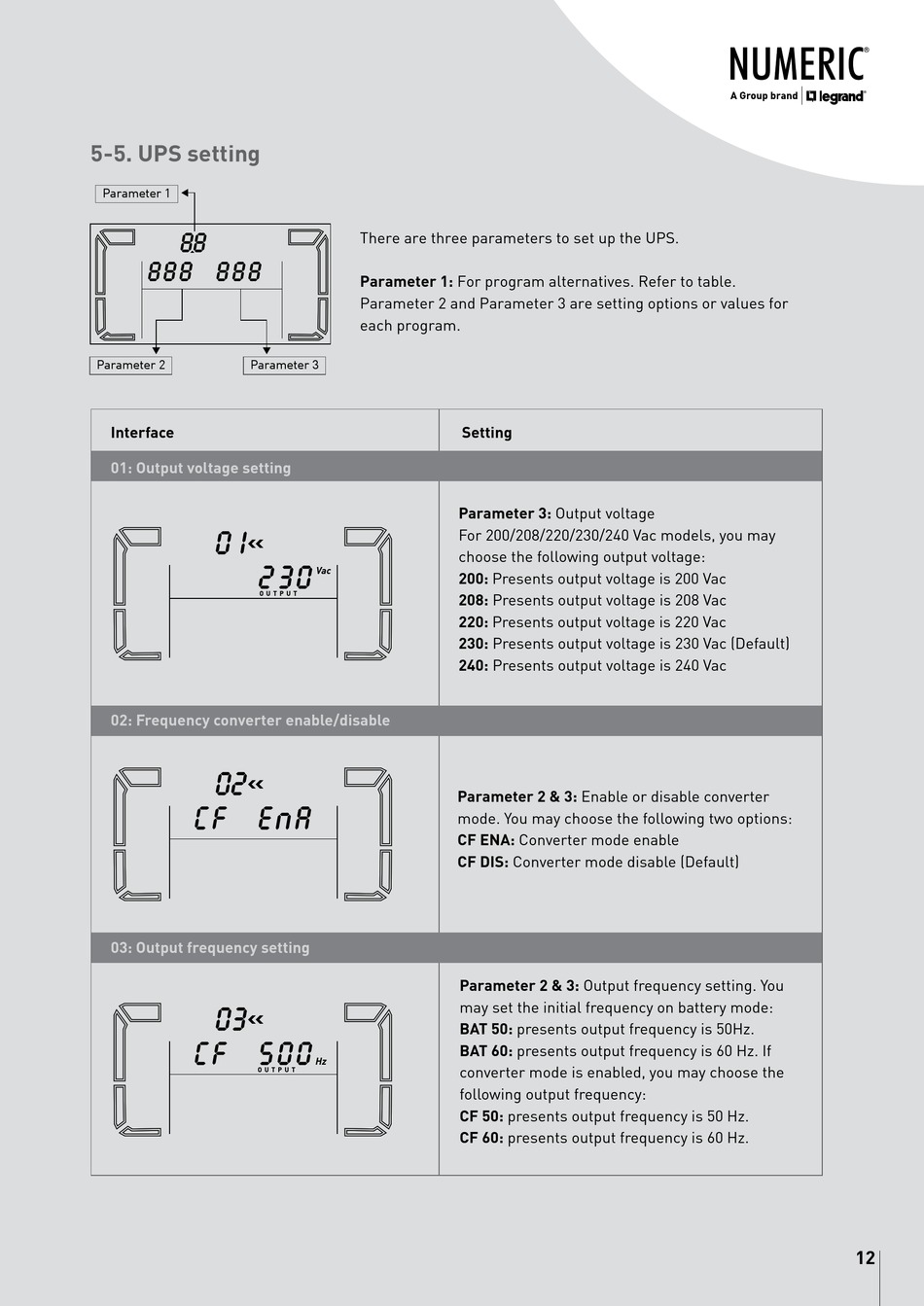

5-5. UPS setting

Parameter 1
88
888 888
Parameter 2 Parameter 3
Interface
01: Output voltage setting
0 1
230
O U T P U T
02: Frequency converter enable/disable
02
CF EnA
03: Output frequency setting
03
CF 5OO
O U T P U T
There are three parameters to set up the UPS.
Parameter 1: For program alternatives. Refer to table.
Parameter 2 and Parameter 3 are setting options or values for
each program.
Setting
Parameter 3: Output voltage
For 200/208/220/230/240 Vac models, you may
choose the following output voltage:
Vac
200: Presents output voltage is 200 Vac
208: Presents output voltage is 208 Vac
220: Presents output voltage is 220 Vac
230: Presents output voltage is 230 Vac (Default)
240: Presents output voltage is 240 Vac
Parameter 2 & 3: Enable or disable converter
mode. You may choose the following two options:
CF ENA: Converter mode enable
CF DIS: Converter mode disable (Default)
Parameter 2 & 3: Output frequency setting. You
may set the initial frequency on battery mode:
BAT 50: presents output frequency is 50Hz.
BAT 60: presents output frequency is 60 Hz. If
Hz
converter mode is enabled, you may choose the
following output frequency:
CF 50: presents output frequency is 50 Hz.
CF 60: presents output frequency is 60 Hz.
