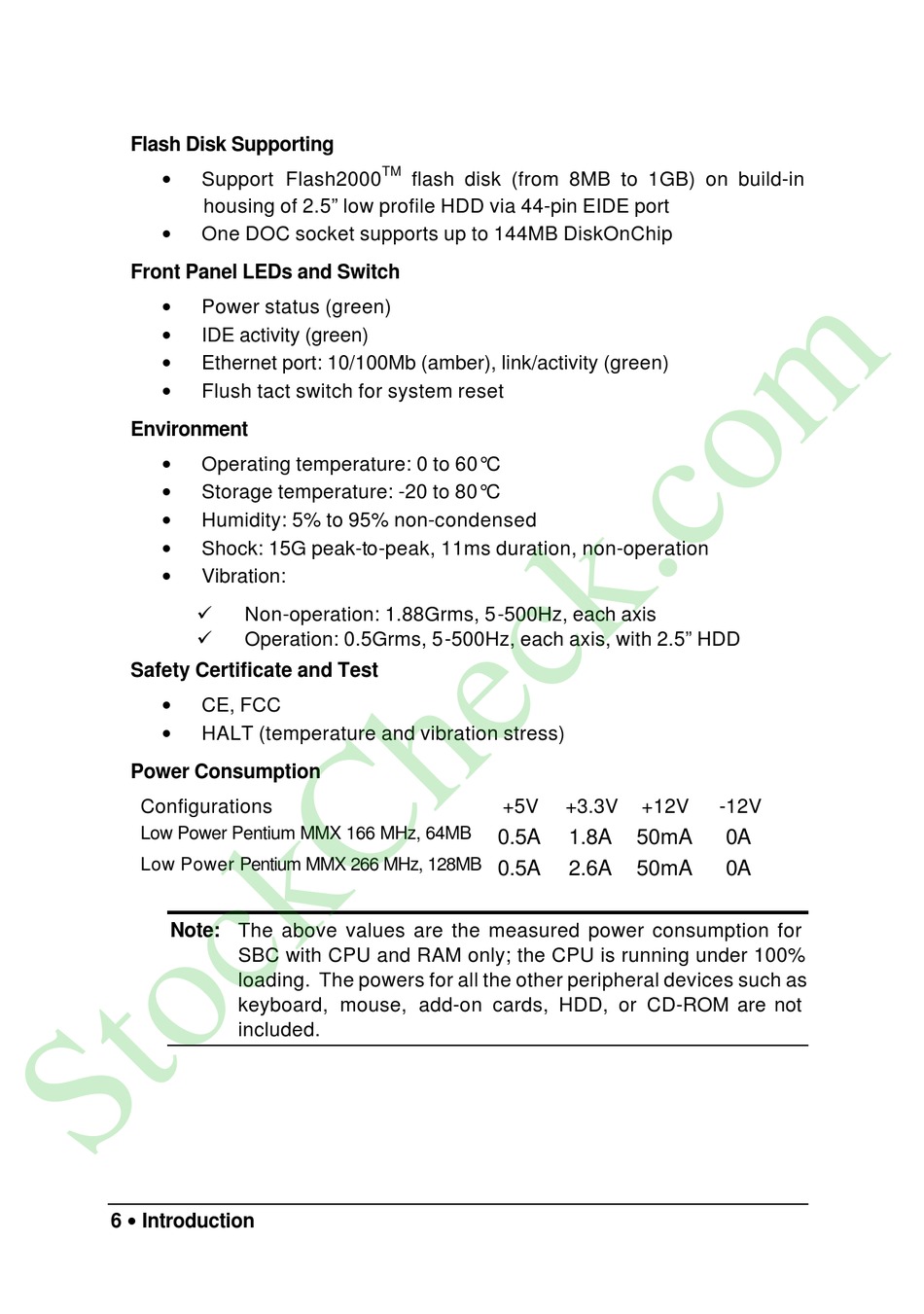

Flash Disk Supporting
•
Support Flash2000
housing of 2.5" low profile HDD via 44-pin EIDE port
•
One DOC socket supports up to 144MB DiskOnChip
Front Panel LEDs and Switch
•
Power status (green)
•
IDE activity (green)
•
Ethernet port: 10/100Mb (amber), link/activity (green)
•
Flush tact switch for system reset
Environment
•
Operating temperature: 0 to 60°C
•
Storage temperature: -20 to 80°C
•
Humidity: 5% to 95% non-condensed
•
Shock: 15G peak-to-peak, 11ms duration, non-operation
•
Vibration:
ü
Non-operation: 1.88Grms, 5-500Hz, each axis
ü
Operation: 0.5Grms, 5-500Hz, each axis, with 2.5" HDD
Safety Certificate and Test
•
CE, FCC
•
HALT (temperature and vibration stress)
Power Consumption
Configurations
Low Power Pentium MMX 166 MHz, 64MB
Low Power Pentium MMX 266 MHz, 128MB
Note: The above values are the measured power consumption for
SBC with CPU and RAM only; the CPU is running under 100%
loading. The powers for all the other peripheral devices such as
keyboard, mouse, add-on cards, HDD, or CD-ROM are not
included.
6 • Introduction
TM
flash disk (from 8MB to 1GB) on build-in
+5V
0.5A
0.5A
+3.3V +12V -12V
1.8A 50mA 0A
2.6A 50mA 0A
