- Page 1 Assembly and Operating Instructions max. 130 kg ~ 210 Min. 130 kg L 180 | B 163 | H 212 SW950223.01.01 Art. No. SW-95.0223 Multi Gym GX...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Setup Location Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List... - Page 5 BodyCraft weight stations, for example, offer a very wide range of exercise possibilities. This ranges from traditional strength training such as bench presses to rehabilitation exercises and workouts for complex sports such as golf, tennis or badminton.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions Packaging dimensions (L x W x H) and article weight (gross, incl. packaging) approx.: Box 1: 200.6 cm x 43.2 cm x 18.4 cm 47.2 kg Box 2: 111.7 cm x 102.2 cm x 26 cm 85.9 kg Box 3: 188 cm x 18.1 cm x 12 cm... -
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 12: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠... -
Page 15: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Assembly of Front and Rear Upright, Guide Rods and Weight Plates Assemble the front upright (3) to the base frame (1) by using two bolts (99), four washers (116) and... - Page 16 Step 2: Assembly of the Top Frame Insert the guide rod mount (129) onto the guide rods (5). Assemble the guide rod mount (129) to the top frame (2) by using two bolts (108). Screw two set screws (112) into the guide rods (5). Place the top frame (2) on top, making sure to insert the guide rods (5) and rear upright (4).
- Page 17 Step 3: Assembly of the Cable Arm Assembly Assemble the cable arm assembly (11) to cable arm connector (17) by using two bolts (103) and two washers (116). Assemble the cable arm connector (17) to front upright (3) by using two bolts (97), four washers (116) and two nylon nuts (124).
- Page 18 Step 4: Assembly of the Press Station Attach the press arm support (13) to the top frame (2) by aligning the holes and inserting one bolt (95) with two washers (115) and one nylon nut (123). Attach four end caps (68) to the press arm support (13). Attach press arm (7) to the press arm support (13) by aligning the holes and inserting the press arm axle (28).
- Page 19 Step 5: Assembly of Seat and Back Pad Assemble the seat frame (9) to the front upright (3) by using three bolts (99), six washers (116) and three nylon nuts (124). Assemble the seat back adjuster (12) to the front upright (3) by using one bolt (99), two washers (116) and one nylon nut (124).
- Page 21 Step 6: Assembly of the Top Cable NOTICE Do not mount both pulleys T3 and T5 to one side. Assemble cables and pulleys simultaneously. Grab the threaded end of the top cable (87) and run the cable over pulley T1. Assemble pulley T1 at the front of the top frame (2) by using one bolt (101) and one nylon nut (124), as shown in Fig T1.
- Page 22 ࣑ ATTENTION If you purchased the optionial leg press, please orient the floating pulley block (21) with the threaded end down and the flat side up (as described in the leg press manual). 13. Route the cable over pulley T11. Assemble pulley T11 to the top frame (2) by using one bolt (101) and one nylon nut (124).
- Page 24 Step 7: Assembly of the Ab Cable Route the steel ball end of the ab cable (88) through the slot in the front upright (3) and attach two pulleys in the slot (as shown in Fig. A1) by using two bolts (99), four washers (116), four bushings (77), and two nylon nuts (124).
- Page 26 Step 8: Assembly of the Lower Cable Route the steel ball end of the lower cable (89) under pulley L1. Assemble pulley L1 at the front of the low pull station by using one bolt (101) and one nylon nut (124). Route the cable to pulley L2.
- Page 28 Step 9: Assembly of the Connect Cable Hook the steel ball end of the connect cable (90) to the receptor C1 welded to the base frame (1). Route the cable up and over pulley C2. Assemble pulley C2 to the bottom of the double pulley block (19) by using one bolt (101) and one nylon nut (124).
- Page 29 Step 10: Assembly of the Cable Arm Cable NOTICE The cable arm cable (91) is already routed through the cable arms (14). Assemble pulleys P3 and P7, along with their pulley guide brackets (32) to the cable arm assembly (11) by using one bolt (101) and one nylon nut (124) each. Route the cable above these pulleys.
- Page 31 Step 11: Assembly of the Weight Stack Shrouds Tighten all bolts, starting with the bolts at the base of the main frame. Attach the weight stack shrouds (26) to the tabs welded on base frame (1) and top frame (2) by using four round bolts (104) and four washers (117).
- Page 32 Step 12: Assembly of the Accessories Attach the lat bar (29), curl bar (30) and single handle (43) to the GX strength training system.
- Page 33 Step 13: Cable Adjustment of GX Strength Training System NOTICE The cables should be tightened to the point just before the top plate lifts off the stack. If the top plate is not resting on the stack, you need to add length. If there is slack in the cables, you need to shorten the cables.
-
Page 34: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 35: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 36: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Cables Screw connections Pulleys and cable routing... -
Page 37: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 38: Ordering Spare Parts

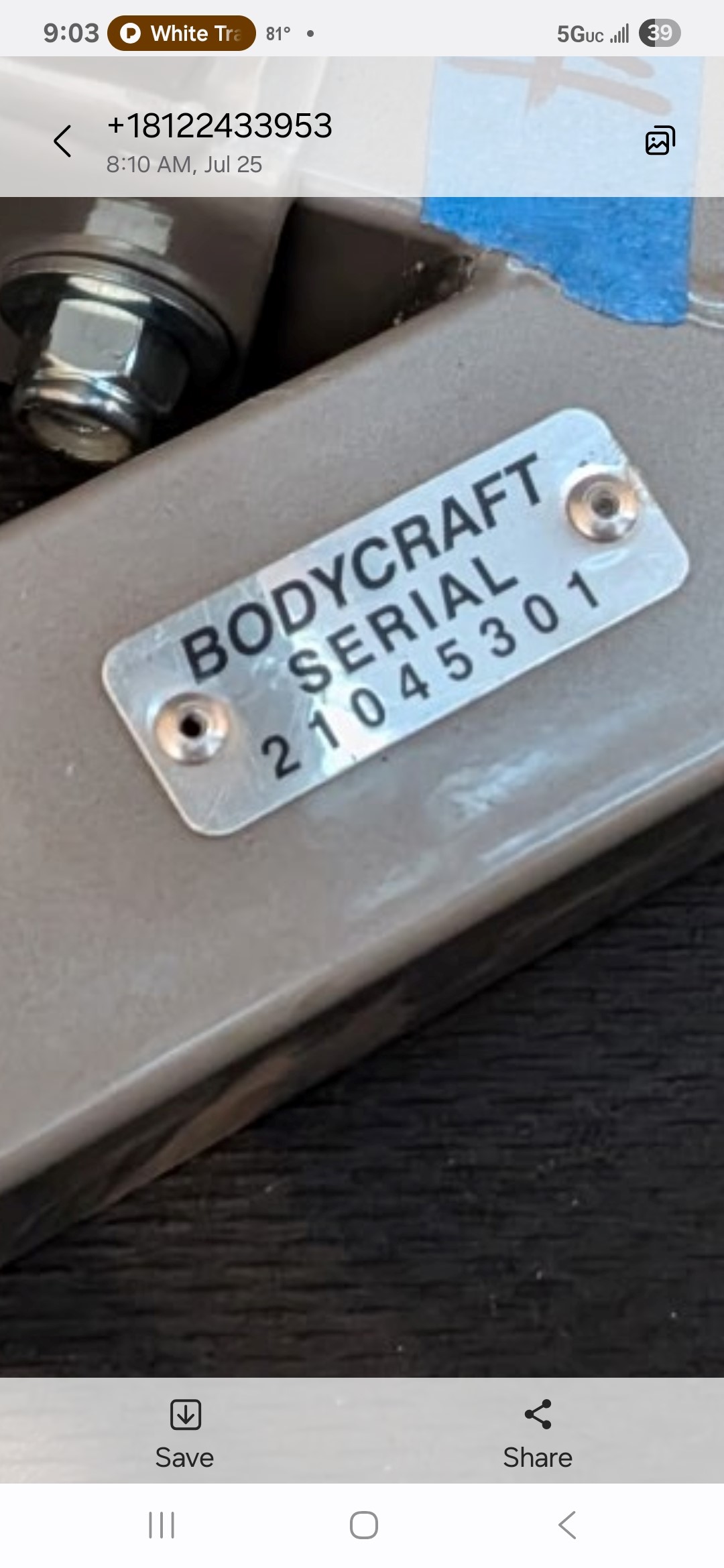

The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: BodyCraft / multi gym Model Name: Article Number: SW-95.0223... -
Page 39: Parts List
Parts List Name Qty. BASE FRAME TOP FRAME FRONT UPRIGHT REAR UPRIGHT GUIDE ROD LEG EXTENSION HANDLE PRESS ARM SEAT ADJ. FRAME SEAT FRAME LEG EXTENSION ARM CABLE ARM ASSEMBLY SEAT BACK ADJUSTER PRESS ARM SUPPORT CABLE ARM SWIVEL CABLE ARM END LEG HOLDER CABLE ARM CONNECTOR ADJUSTABLE PULLEY BLOCK... - Page 40 CURL BAR LEG EXTENSION AXLE PULLEY GUIDE BRACKET CABLE ARM COLLAR STEEL SPACER AXLE COLLAR COLLAR HOOK PLATE SELECTOR ROD TOP PLATE WEIGHT PLATE 185L NONSLIP 235L NONSLIP AB CRUNCH STRAP SINGLE HANDLE ANKLE STRAP LINK CLIP SEAT PAD BACK PAD FOAM PAD COVER OF FOAM PAD 1-1/4"...
- Page 41 1" T SHAPE END PLUG 114mm PULLEY 90mm PULLEY 50 X 75mm RECT. END CAP 50mm SQ. END CAP 25 X 50mm RECT. END CAP 40 X 80mm OVAL PLUG 1-1/4" ROUND END PLUG PLASTIC WASHER ALUMINUM CAP 1" ID PLASTIC GUIDE ROD HOLDER 1"...
- Page 42 3/8" X 4" HEX BOLT 3/8" X 3-1/8" HEX BOLT 3/8" X 3-1/4" HEX BOLT 3/8" X 3" HEX BOLT 3/8" X 2-3/4" HEX BOLT 3/8" X 1-3/4" HEX BOLT 3/8" X 1-3/4" HEX THREADED BOLT 3/8" X 1" HEX THREADED BOLT 5/16"...
-
Page 43: Exploded Drawing
Exploded Drawing... -
Page 44: Warranty
WARRANTY Training equipment from cardiostrong® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. Error Descriptions Your fitness equipment is developed for long-term, high-quality training. - Page 45 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
