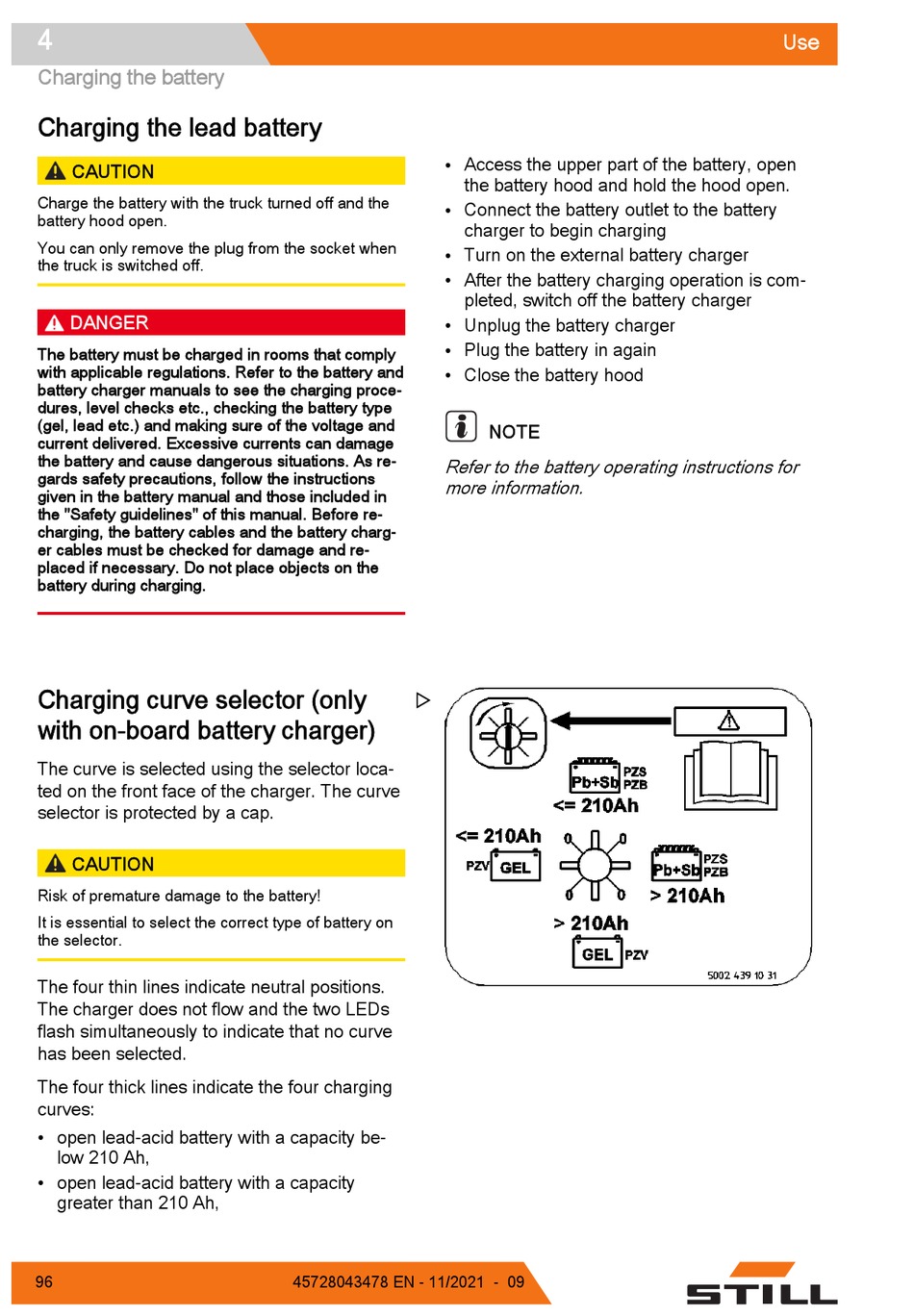

Charging the battery

Charging the lead battery

CAUTION
Charge the battery with the truck turned off and the
battery hood open.
You can only remove the plug from the socket when
the truck is switched off.
DANGER
The battery must be charged in rooms that comply
with applicable regulations. Refer to the battery and
battery charger manuals to see the charging proce-
dures, level checks etc., checking the battery type
(gel, lead etc.) and making sure of the voltage and
current delivered. Excessive currents can damage
the battery and cause dangerous situations. As re-
gards safety precautions, follow the instructions
given in the battery manual and those included in
the "Safety guidelines" of this manual. Before re-
charging, the battery cables and the battery charg-
er cables must be checked for damage and re-
placed if necessary. Do not place objects on the
battery during charging.
Charging curve selector (only
with on-board battery charger)
The curve is selected using the selector loca-
ted on the front face of the charger. The curve
selector is protected by a cap.
CAUTION
Risk of premature damage to the battery!
It is essential to select the correct type of battery on
the selector.
The four thin lines indicate neutral positions.
The charger does not flow and the two LEDs
flash simultaneously to indicate that no curve
has been selected.
The four thick lines indicate the four charging
curves:
open lead-acid battery with a capacity be-
●
low 210 Ah,
open lead-acid battery with a capacity
●
greater than 210 Ah,
96
Access the upper part of the battery, open
●
the battery hood and hold the hood open.
Connect the battery outlet to the battery
●
charger to begin charging
Turn on the external battery charger
●
After the battery charging operation is com-
●
pleted, switch off the battery charger
Unplug the battery charger
●
Plug the battery in again
●
Close the battery hood
●
Refer to the battery operating instructions for
more information.

45728043478 EN - 11/2021 - 09
NOTE
Use
