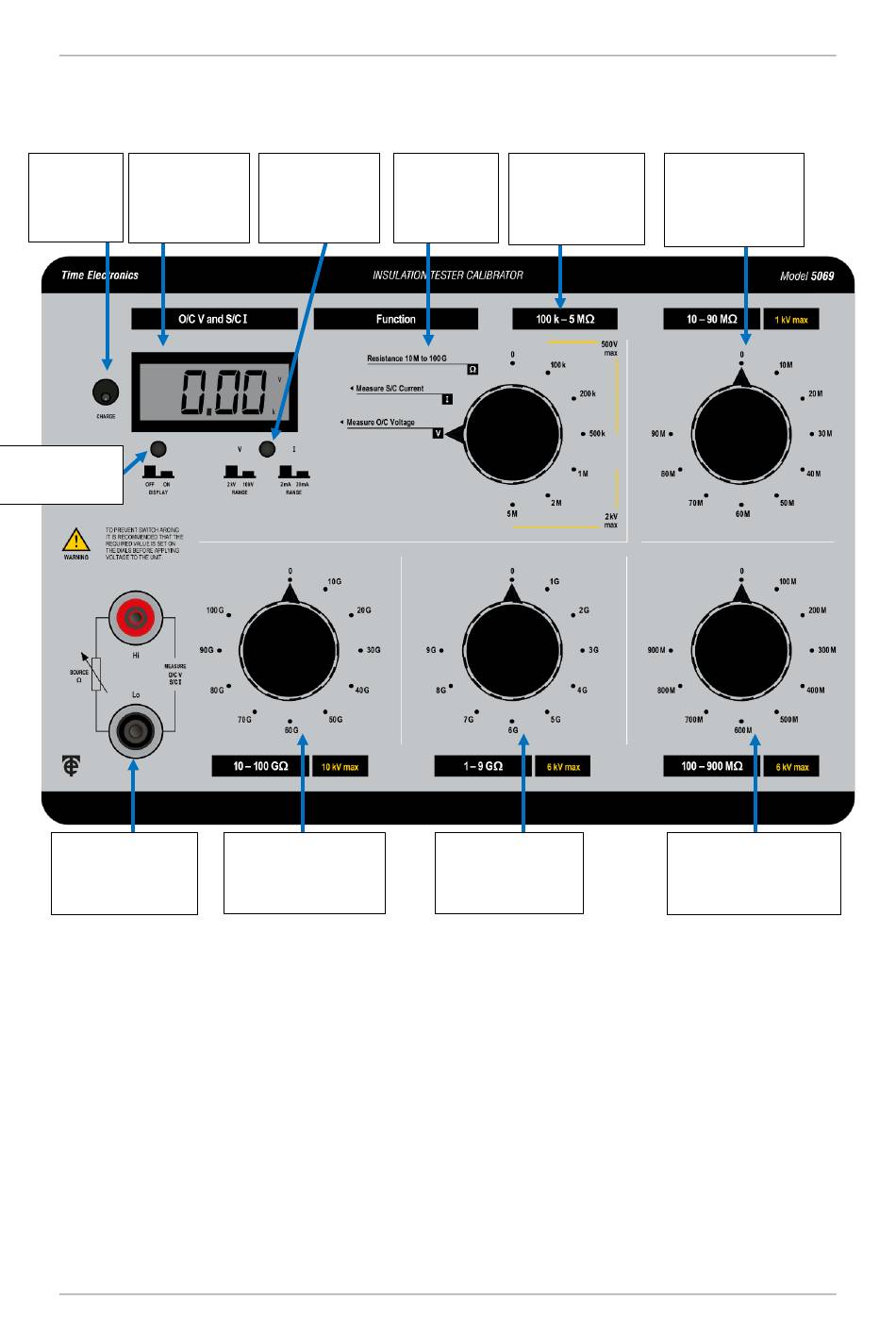

Controls

V/I Meter
Voltage/Current
Charging
Meter
socket
V/I Meter
On/Off button
4 mm recessed
UUT connection
sockets
4.1

Descriptions of Controls

• On/Off Button: To power the voltage/current meter on or off.
• Charging Socket. A socket to recharge the 5069 voltage/current meter.
• Voltage/Current Meter: Displays the O/C voltage or S/C current when used.
• V or I Range Selection Button: Select the range to use for the V or I measure function.
• Function Selectors: Use to select the required function.
• Resistance 100 kΩ to 5 MΩ Set Points: Spot resistance values used individually.
• Decades Resistance Ranges: Rotate knobs to set required resistance values.
• 4 mm Recessed Sockets: Used to connect the 5069 to the insulation tester (UUT).
5069 Insulation Tester Calibrator
V or I Range
Selection
Selectors
Button
Decade
Resistance
10 GΩ to 100 GΩ
Resistance
Function
100 kΩ to 5 MΩ
Set Points
Decade
Resistance
1 GΩ to 9 GΩ
User Manual
v2.2
Decade
Resistance
10 MΩ to 90 MΩ
Decade
Resistance
100 MΩ to 900 MΩ
