LEDS:

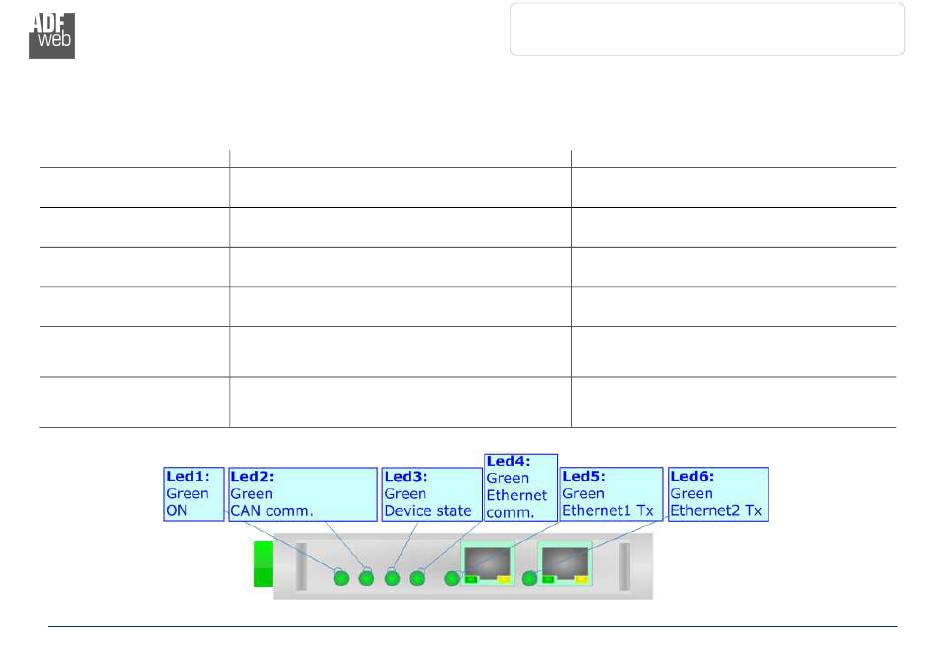

The device has got seven LEDs that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: ON (green)
2: CAN comm. (green)
3: Device State (green)
4: Ethernet comm. (green)
5: Ethernet1 link (green)
6: Ethernet2 link (green)
ADFweb.com S.r.l.
Normal Mode
ON: Device powered
OFF: Device not powered
It blinks when a CAN message is received
Blinks slowly (~1Hz)
It blinks when EtherNet/IP communication is running
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
User Manual EtherNet/IP Master / DeviceNet Slave
Document code: MN67647_ENG
Boot Mode
ON: Device powered
OFF: Device not powered
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
