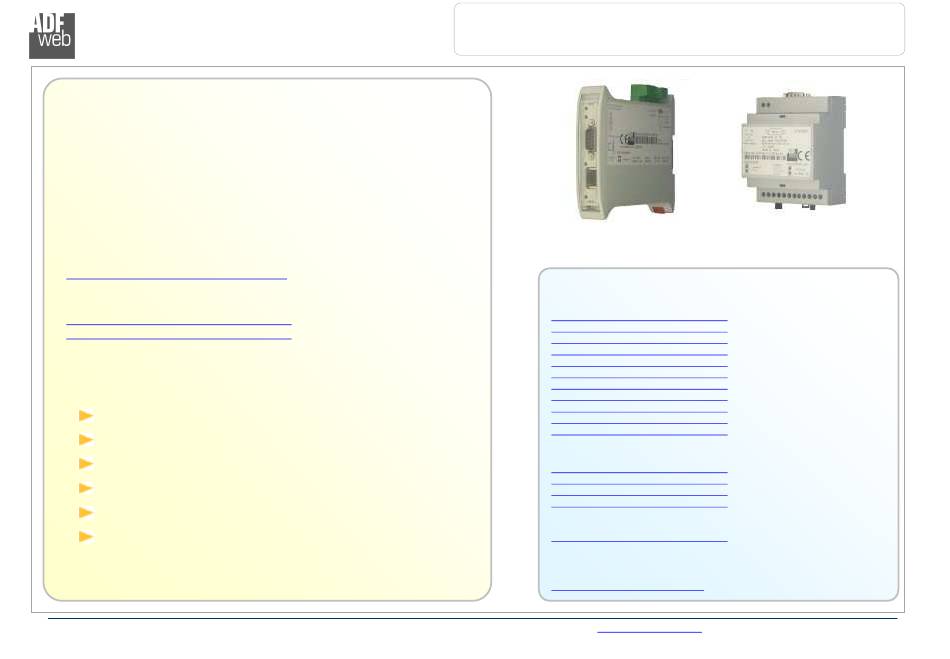

Industrial Electronic Devices
User Manual
Revision 1.000
English
Gateway / Bridge
Ethernet from/to DeviceNet Master
(Order Code: HD67154-A1 – HD67154-B2)
for Website information:
www.adfweb.com?Product=HD67154
for Price information:
www.adfweb.com?Price=HD67154-A1
www.adfweb.com?Price=HD67154-B2
Benefits and Main Features:
Very easy to configure
Low cost
Rail mountable
Wide supply input range
Galvanic isolation between two buses
Industrial temperature range:
-30°C / 70°C (-22°F / 158°F)
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual Ethernet from/to DeviceNet Master
Document code: MN67154_ENG
HD67154-A1
For other DeviceNet products see also the following link:
DeviceNet Slave from/to
www.adfweb.com?Product=HD67043
www.adfweb.com?Product=HD67058
www.adfweb.com?Product=HD67134
www.adfweb.com?Product=HD67136
www.adfweb.com?Product=HD67137
www.adfweb.com?Product=HD67138
www.adfweb.com?Product=HD67139
www.adfweb.com?Product=HD67140
www.adfweb.com?Product=HD67141
www.adfweb.com?Product=HD67235
www.adfweb.com?Product=HD67554
DeviceNet Master from/to
www.adfweb.com?Product=HD67151
www.adfweb.com?Product=HD67152
www.adfweb.com?Product=HD67153
www.adfweb.com?Product=HD67555
Do you have an your customer protocol? See the following link:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 1.000
Page 1 of 14
HD67154-B2
(Ethernet)
(M-Bus)
(CANopen SDO Client)
(CANopen SDO Server)
(J1939)
(Modbus Slave)
(Modbus TCP Client)
(Modbus TCP Server)
(Modbus Master)
(CAN)
(PROFIBUS)
(Modbus Slave)
(Modbus TCP Server)
(CANopen)
(PROFIBUS)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADF Web HD67154-A1
Summary of Contents for ADF Web HD67154-A1
- Page 1 Page 1 of 14 Industrial Electronic Devices User Manual Revision 1.000 English Gateway / Bridge Ethernet from/to DeviceNet Master (Order Code: HD67154-A1 – HD67154-B2) HD67154-A1 HD67154-B2 for Website information: www.adfweb.com?Product=HD67154 For other DeviceNet products see also the following link: DeviceNet Slave from/to for Price information: www.adfweb.com?Product=HD67043...
-
Page 2: Updated Documentation
User Manual Ethernet from/to DeviceNet Master Document code: MN67154_ENG Revision 1.000 Page 2 of 14 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: Page Updated INDEX... -
Page 3: Connection Scheme
User Manual Ethernet from/to DeviceNet Master Document code: MN67154_ENG Revision 1.000 Page 3 of 14 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67154-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... - Page 4 User Manual Ethernet from/to DeviceNet Master Document code: MN67154_ENG Revision 1.000 Page 4 of 14 Industrial Electronic Devices Figure 2: Connection scheme for HD67154-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
-
Page 5: Power Supply
User Manual Ethernet from/to DeviceNet Master Document code: MN67154_ENG Revision 1.000 Page 5 of 14 Industrial Electronic Devices CHARACTERISTICS: The Ethernet from/to DeviceNet Master Gateway allows the following characteristics: Two-directional information between Ethernet and DeviceNet bus; Electrical isolation between two buses; Power supply of 8…19 VAC 4VA or 8…35 VDC 4W;... -
Page 6: New Project / Open Project
User Manual Ethernet from/to DeviceNet Master Document code: MN67154_ENG Revision 1.000 Page 6 of 14 Industrial Electronic Devices USE OF COMPOSITOR SW67154: To configure the Gateway, use the available software that runs with Windows, called SW67154. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 7: Set Communication
User Manual Ethernet from/to DeviceNet Master Document code: MN67154_ENG Revision 1.000 Page 7 of 14 Industrial Electronic Devices SET COMMUNICATION: This section defines the fundamental communication parameters of two buses Ethernet and DeviceNet. By pressing the “Set Communication” button from the main window for SW67154 (Fig. 3) the “SET COMMUNICATION”... -
Page 8: Devicenet Network
User Manual Ethernet from/to DeviceNet Master Document code: MN67154_ENG Revision 1.000 Page 8 of 14 Industrial Electronic Devices DEVICENET NETWORK: By pressing the “DeviceNet Network” button from the main window for SW67154 (Fig. 3) the window “DeviceNet Network” appears (Fig. 5). Here it is possible to define the Slaves DeviceNet Devices with their ID, number of Input and number of Output bytes. -
Page 9: Update Device
User Manual Ethernet from/to DeviceNet Master Document code: MN67154_ENG Revision 1.000 Page 9 of 14 Industrial Electronic Devices UPDATE DEVICE: Section “Update Firmware” (Fig. 6): In order to load the parameters or update the firmware in the device, follow these instructions: Turn off the Device;... - Page 10 User Manual Ethernet from/to DeviceNet Master Document code: MN67154_ENG Revision 1.000 Page 10 of 14 Industrial Electronic Devices CHARACTERISTICS OF THE CABLES: THERNET The connection at Ethernet socket must be with a Ethernet Cable with a RJ45 plug. 232: The connection from RS232 socket to a serial port (example one from a personal computer) must be made with a NULL MODEM cable (a serial cable where the pins 2 and 3 are crossed).
-
Page 11: Ethernet Protocol
User Manual Ethernet from/to DeviceNet Master Document code: MN67154_ENG Revision 1.000 Page 11 of 14 Industrial Electronic Devices ETHERNET PROTOCOL: This protocol has got two functions for write and read frames. These routines can use both the UDP protocol and the TCP by setting the parameter wanted with the Compositor SW67154. - Page 12 User Manual Ethernet from/to DeviceNet Master Document code: MN67154_ENG Revision 1.000 Page 12 of 14 Industrial Electronic Devices RITE UNCTION The request include the following byte: Byte Number Description Type of Operation (Write = 2) ID of the Slave DeviceNet to Write Starting Address Hi Starting Address Lo Number of Byte to Write Hi...
-
Page 13: Mechanical Dimensions
Revision 1.000 Page 13 of 14 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 12: Mechanical dimensions scheme for HD67154-B2 Figure 11: Mechanical dimensions scheme for HD67154-A1 ORDER CODE: Order Code: HD67154-A1 - Gateway – Ethernet from/to DeviceNet Master Order Code: HD67154-B2 - Gateway –... -
Page 14: Warranties And Technical Support
User Manual Ethernet from/to DeviceNet Master Document code: MN67154_ENG Revision 1.000 Page 14 of 14 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com srl products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com. RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: 1) Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
