User Manual IEC 61850 Server / BACnet Slave
Document code: MN67738_ENG
Revision 1.000
Page 11 of 30
Industrial Electronic Devices
ETHERNET:

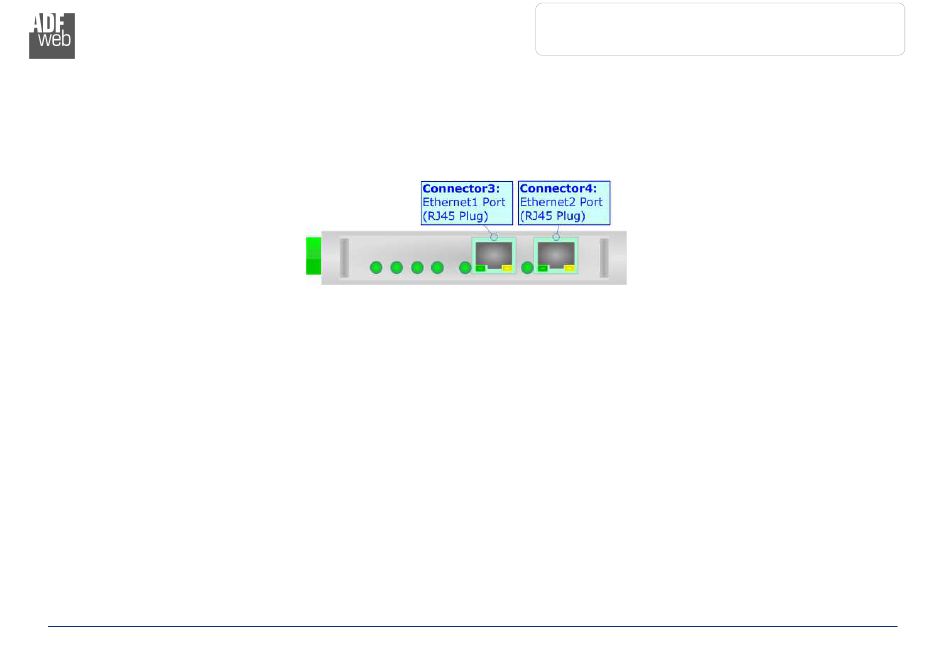

IEC 61850 connection, BACnet/IP connection and the updating of the converters must be made using Connector3 and/or Connector4 of the
HD67738-XXX-A1 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to
the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a
straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross cable.
