Industrial Electronic Devices
In the field
"MAC
Address" the MAC of BACnet MS/TP side of the converter is
defined;
The field
"Max
Masters" specifies the highest allowable address for master
nodes. The value shall be less than or equal to 127;
The field
"Max Info
Frames" specifies the maximum number of information
frames the node may send before it must pass the token;
In the field
"Device
Istance" it is possible to assign a number to the
BACnet node (used for the Device Istance);
In the field "Network" the BACnet MS/TP network number is defined;
If the field
"BACnet description up to 32
description of the BACnet objects can be up to 32 chars.
NTP:
This section is used to define the general parameters of NTP. The means of the
fields are:
In the field
"Server
URL" the URL or the IP Address of the NTP Server is
defined;
In the field
"Poll Time
synchronization is defined.
ADFweb.com S.r.l.
chars" is checked, the
(seconds)" the polling time for the time
User Manual IEC 61850 Server / BACnet Slave
Document code: MN67738_ENG
Revision 1.000

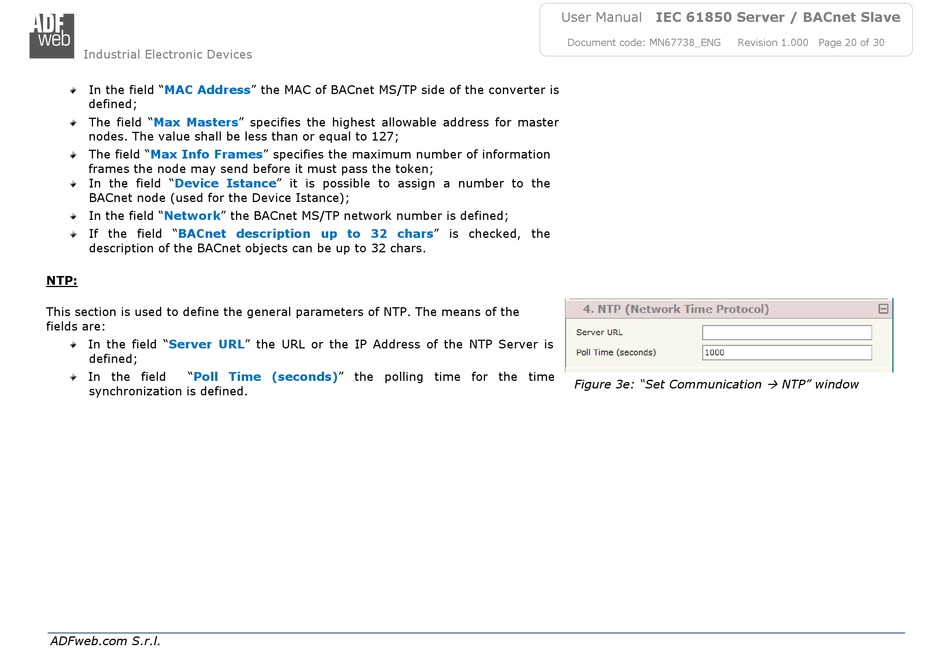

Figure 3e: "Set Communication
Page 20 of 30
NTP" window
