BAC S :
NET LAVE
This section is used to define the main parameters of BACnet line. It is possible to
select the type of BACnet to use from:
BACnet/IP (it uses Ethernet);
BACnet MS/TP (it uses RS485).
If selected "BACnet/IP" the means of the fields for "BACnet" are:
In the fields "IP ADDRESS" the IP address of BACnet/IP side of the
converter is defined;
In the fields "SUBNET
converter is defined;
In the fields "GATEWAY" the default gateway of the network is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature
is used for going out of the net;
In the field "Port" the port used for BACnet communication is defined. The
default port used for BACnet communication is 47808, but is possible to
insert any value;
In the field "BACnet Device
converter is defined;
In the field "Device Identifier" the device instance of BACnet/IP side of the
converter is defined;
If the field "BACnet description up to 32
description of the BACnet objects can be up to 32 chars.
If selected "BACnet MS/TP" the means of the fields for "BACnet" are:
In the field "Baudrate" the baudrate of BACnet MS/TP side of the converter
is defined;
In the field "Parity" the parity of BACnet MS/TP side of the converter is
defined;
In the field "BACnet Device
converter is defined;
ADFweb.com S.r.l.
Mask" the SubNet Mask of BACnet/IP side of the
Name" the name of BACnet/IP side of the
chars" is checked, the
Name" the name of BACnet MS/TP side of the
User Manual IEC 61850 Server / BACnet Slave
Document code: MN67738_ENG Revision 1.000

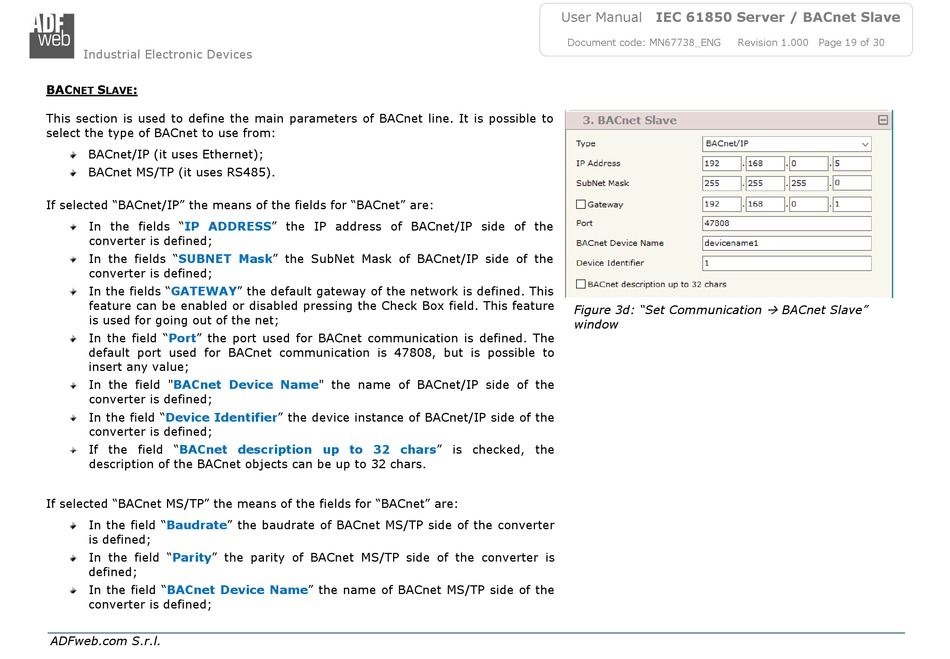

Figure 3d: "Set Communication
