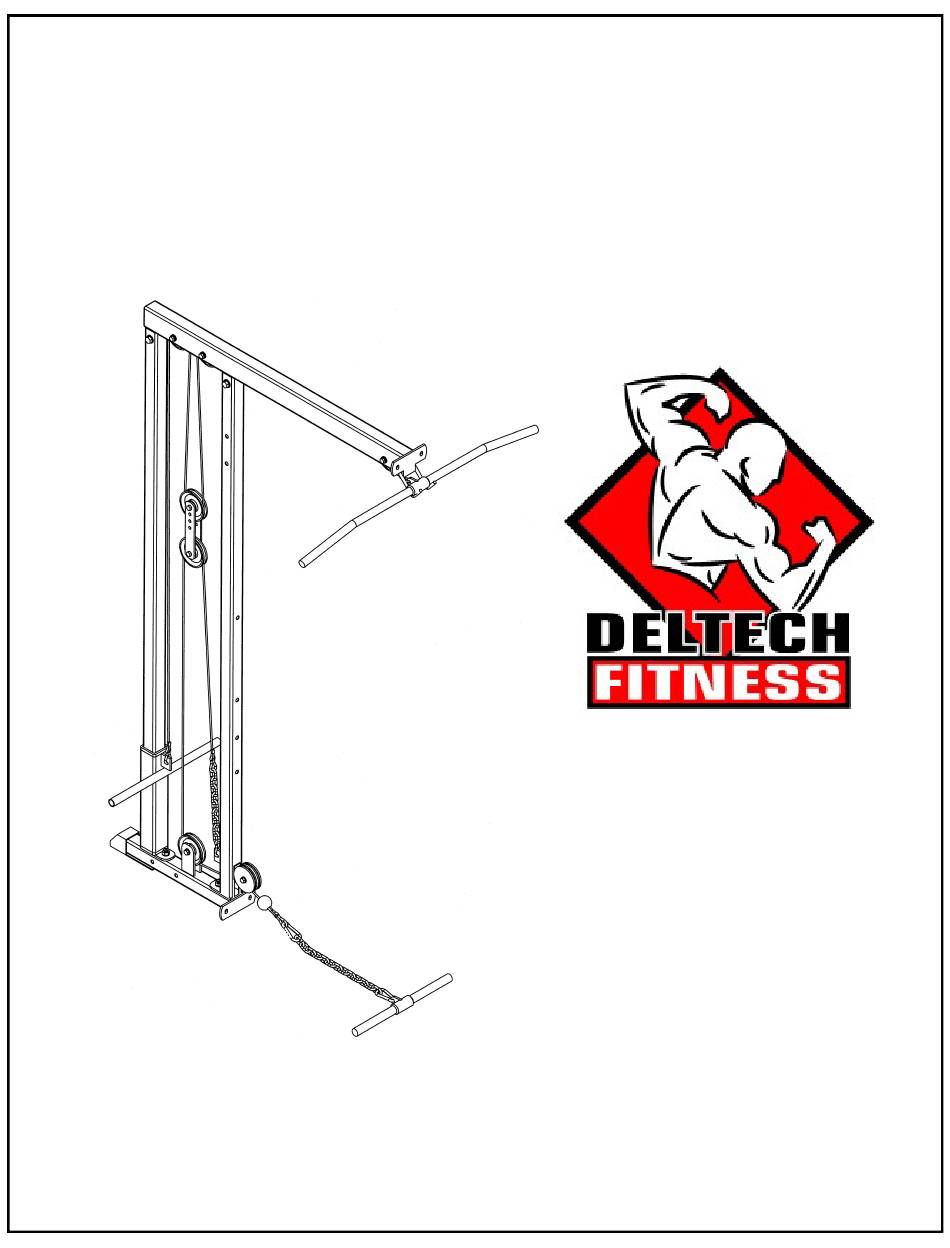

DF830
LAT ATTACHMENT
Assembly Manual
(888) 258-0533
FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY
*NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF830 and is the answer not in the manual?

Questions and answers

Related Manuals for Deltech Fitness DF830

Summary of Contents for Deltech Fitness DF830

  • Page 1 DF830 LAT ATTACHMENT Assembly Manual (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...

  • Page 2: Box Contents

    TUBE TUBE QTY 1 QTY 1 PULLEY FLANGE 4” FLANGE QTY 2 QTY 2 DF830 HARDWARE QTY 1 DF830 INSTRUCTIONS *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 3 M12 x 105MM BOLT QUICK CLIP M12 WASHER M10 WASHER SNAP HOOK QTY 2 QTY 2 QTY 14 QTY 8 QTY 6 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...

  • Page 4: Frame Assembly

    FRAME ASSEMBLY (NOTE: THE NUTS USED ON THIS ARE LOCKNUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT.) TOOLS REQUIRED: METRIC WRENCHES OR SOCKET SET ATTACH THE BOTTOM SUPPORT (B) TO THE BOTTOM CROSSMEMBER OF THE POWER RACK OR SMITH MACHINE YOU ARE INSTALLING TO USING M12 x 75MM BOLTS (O), 4”...
  • Page 5 FRAME ASSEMBLY INSTALL THE REAR SUPPORT TUBE (G) TO THE BOTTOM SUPPORT (B) ALIGNING HOLES IN FLANGE WITH PIN AND THREADED STUD. INSTALL 12MM WASHER (U) AND 12MM NUT (S) AND TIGHTEN. INSTALL THE FRONT SUPPORT TUBE (H) TO THE BOTTOM SUPPORT (B) ALIGNING HOLES IN FLANGE WITH PIN AND THREADED STUD.
  • Page 6 LOWER PULLEY ASSEMBLY INSTALL THE 4-1/2” PULLEY (K) INTO THE CENTER FLANGES OF THE BOTTOM SUPPORT USING THE M10 x 45MM BOLT (R), 10MM WASHERS (V), AND M10 LOCK- NUT (T). INSTALL THE 3-1/2” PULLEY (L) INTO THE FRONT FLANGES OF THE BOTTOM SUPPORT USING THE M10 x 45MM BOLT (R), 10MM WASHERS (V), AND M10 LOCK- NUT (T).
  • Page 7 FRAME ASSEMBLY DISREGARD THIS STEP IF USING WITH STACK LOADED ATTACHMENT INSTALL THE WEIGHT CARRIAGE ASSEMBLY ONTO THE REAR FRAME WITH THE WEIGHT BAR FACING FORWARD. SLIDE DOWN UNTIL IT RESTS ON THE RUBBER BUMPER.
  • Page 8 FRAME ASSEMBLY IIF YOU ARE ATTACHING TO DF4900 SMITH MACHINE, USE ITEM Y- M12 x 105MM BOLTS ATTACH THE FRONT OF THE TOP FRAME ASSEMBLY TO THE POWER RACK WITH M12 x 75MM BOLTS (O), M12 WASHERS (U), 4” FLANGE (J), AND LOCKNUTS (S). (IF YOU ARE ATTACHING TO DF4900 SMITH MACHINE USE M12 x 105MM BOLTS INSTEAD) ATTACH THE BACK OF THE TOP FRAME ASSEMBLY TO THE FRAME SUPPORT TUBES WITH M12 x 65MM BOLTS (P), M12 WASHERS (U), AND LOCKNUTS (S).

  • Page 9: Floating Pulley Assembly

    FLOATING PULLEY ASSEMBLY (NOTE: THE NUTS USED ON THIS BENCH ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT.) ASSEMBLE THE FLOATING PULLEY ASSEMBLY USING THE 4-1/2” PULLEYS (K), THE PULLEY FLANGES (I), THE M10 x 45MM BOLTS (R), THE 10MM FLAT WASHERS (V), AND THE 10MM LOCKNUTS (T).
  • Page 10 UPPER CABLE INSTALLATION THE UPPER AND LOWER CABLES ARE THE SAME. STARTING WITH THE CABLE END WITHOUT THE BALL, INSERT CABLE INTO FRONT OPENING OF THE UPPER PULLEY FRAME AND FEED IT TOWARDS THE BACK. PULL CABLE END OUT THROUGH REAR OPENING.
  • Page 11 UPPER CABLE INSTALLATION INSERT 3-1/2” PULLEY INTO FRONT OPENING OF UPPER PULLEY FRAME AND INSTALL USING THE M10 x 70MM BOLT (Q), PULLEY BUSHINGS (M), AND M10 LOCKNUT (T). REPEAT FOR MIDDLE PULLEY.
  • Page 12 UPPER CABLE INSTALLATION FEED CABLE END AROUND TOP PULLEY OF FLOATING PULLEY ASSEMBLY AND THEN USING THE M10 x OVER 3-1/2” PULLEY. INSTALL 3-1/2” PULLEY IN UPPER PULLEY FRAME 70MM BOLT (Q), PULLEY BUSHINGS (M), AND M10 LOCKNUT (T).
  • Page 13 UPPER CABLE INSTALLATION ATTACH SNAP END OF CABLE AND ATTACH TO FLANGE ON WEIGHT SLIDE.
  • Page 14 LOWER CABLE INSTALLATION KEEPER BAR STARTING WITH THE CABLE END WITHOUT THE BALL, INSERT CABLE UNDER 3-1/2” PULLEY ON FRONT SUPPORT TUBE. MAKE SURE THAT CABLE IS BELOW PULLEY AND ABOVE KEEPER BAR ON BOTTOM OF PULLEY FRAME (SEE INSET PICTURE)
  • Page 15 LOWER CABLE INSTALLATION FEED CABLE THROUGH OPENING IN FRONT SUPPORT TUBE. INSTALL CABLE AROUND 4-1/2” LOWER PULLEY, UP AND AROUND BOTTOM PULLEY OF FLOATING PULLEY ASSEMBLY. ATTACH SNAP HOOKS TO BOTH ENDS OF CHAIN. ATTACH ONE END TO CABLE AND THE OTHER END TO MOUNTING FLANGE ON FRONT SUPPORT TUBE.
  • Page 16 LAT BAR INSTALLATION ATTACH LAT BAR TO UPPER CABLE WITH SNAP HOOK. MOVE TO CRADLE WHEN NOT IN USE. LOW ROW BAR INSTALLATION ATTACH LOW ROW BAR TO LOWER CABLE WITH 2 SNAP HOOKS AND CHAIN. YOU CAN ALSO USE THIS CHAIN ON THE HIGH PULLEY TO DO TRICEP EXERCISES.

  • Page 17: Troubleshooting Tips

    TROUBLESHOOTING TIPS 1. CABLE WILL NOT MOVE OR RUBS CHECK TO MAKE SURE ALL CABLES ARE IN THE V GROOVE OF THE PULLEYS. CHECK ALL PULLEYS TO MAKE SURE THEY ROTATE FREELY. 2. SEAT OR LEG HOLD-DOWN WON’T ADJUST MAKE SURE THE TIGHTEN DOWN KNOB IS LOOSENED BEFORE MAKING ADJUSTMENTS. 3.

  • Page 18: Safety Notice

    SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
