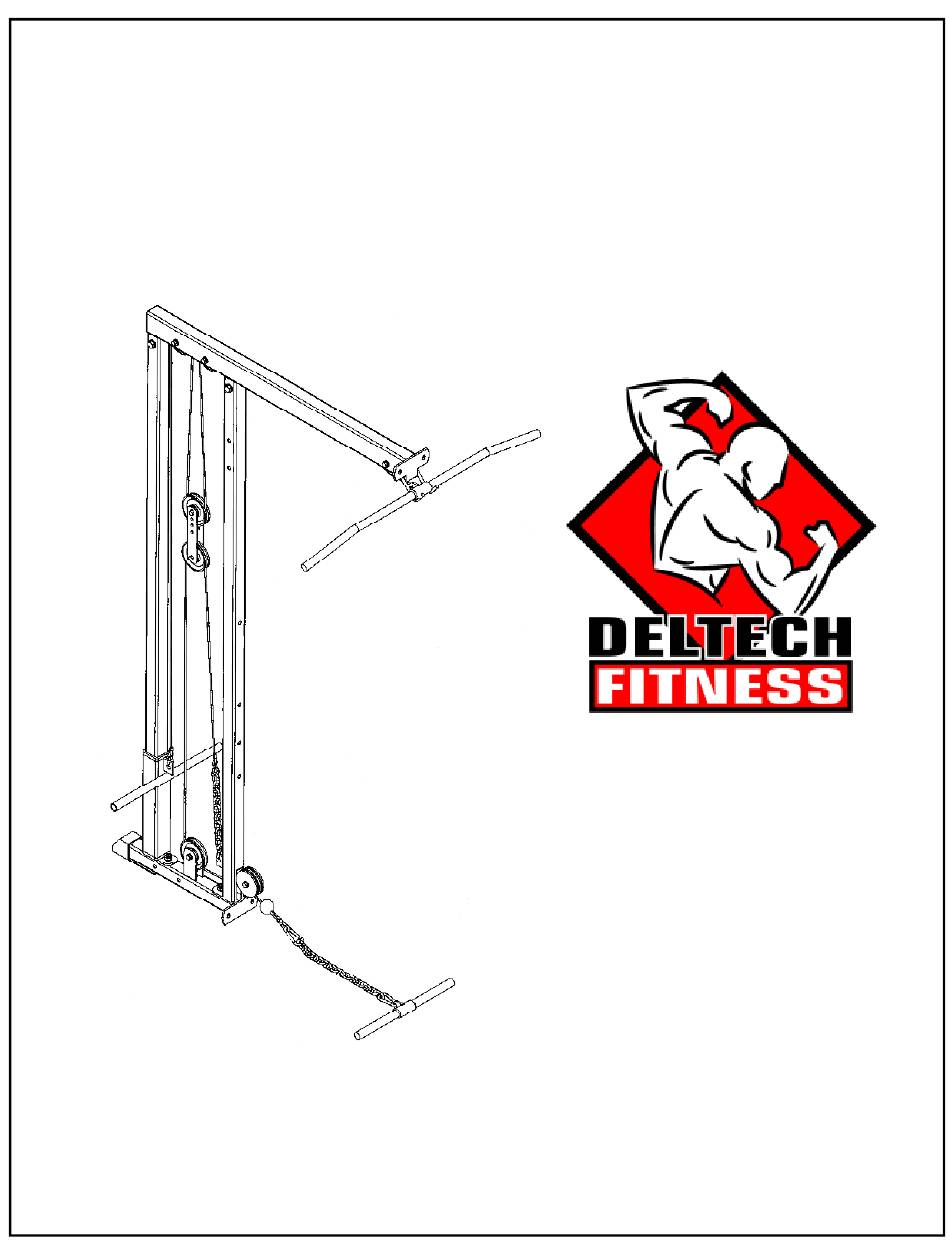

- Page 1 DF830 LAT ATTACHMENT Assembly Manual (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
-
Page 2: Box Contents
TUBE TUBE QTY 1 QTY 1 PULLEY FLANGE 4” FLANGE QTY 2 QTY 2 DF830 HARDWARE QTY 1 DF830 INSTRUCTIONS *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533... - Page 3 M12 WASHER M10 WASHER SNAP HOOK QUICK CLIP M10 LOCKNUT QTY 14 QTY 8 QTY 6 QTY 2 QTY 7 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
-
Page 4: Frame Assembly
FRAME ASSEMBLY (NOTE: THE NUTS USED ON THIS ARE LOCKNUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT.) TOOLS REQUIRED: METRIC WRENCHES OR SOCKET SET ATTACH THE BOTTOM SUPPORT (B) TO THE BOTTOM CROSSMEMBER OF THE POWER RACK OR SMITH MACHINE YOU ARE INSTALLING TO USING M12 x 75MM BOLTS (O), 4”... - Page 5 FRAME ASSEMBLY INSTALL THE REAR SUPPORT TUBE (G) TO THE BOTTOM SUPPORT (B) ALIGNING HOLES IN FLANGE WITH PIN AND THREADED STUD. INSTALL 12MM WASHER (U) AND 12MM NUT (S) AND TIGHTEN. INSTALL THE FRONT SUPPORT TUBE (H) TO THE BOTTOM SUPPORT (B) ALIGNING HOLES IN FLANGE WITH PIN AND THREADED STUD.
- Page 6 LOWER PULLEY ASSEMBLY INSTALL THE 4-1/2” PULLEY (K) INTO THE CENTER FLANGES OF THE BOTTOM SUPPORT USING THE M10 x 45MM BOLT (R), 10MM WASHERS (V), AND M10 LOCK- NUT (T). INSTALL THE 3-1/2” PULLEY (L) INTO THE FRONT FLANGES OF THE BOTTOM SUPPORT USING THE M10 x 45MM BOLT (R), 10MM WASHERS (V), AND M10 LOCK- NUT (T).
- Page 7 FRAME ASSEMBLY DISREGARD THIS STEP IF USING WITH STACK LOADED ATTACHMENT INSTALL THE WEIGHT CARRIAGE ASSEMBLY ONTO THE REAR FRAME WITH THE WEIGHT BAR FACING FORWARD. SLIDE DOWN UNTIL IT RESTS ON THE RUBBER BUMPER.
-
Page 8: Top Frame Assembly
TOP FRAME ASSEMBLY INSTALL THE 3-1/2” PULLEYS (L) INTO THE TOP FRAME (A) USING THE PULLEY BUSHINGS (M), THE M10 x 70MM BOLTS (Q), AND THE M10 LOCK NUTS (T). - Page 9 FRAME ASSEMBLY ATTACH THE FRONT OF THE TOP FRAME ASSEMBLY TO THE POWER RACK OR SMITH MACHINE WITH M12 x 65MM BOLTS (P), M12 WASHERS (U), 4” FLANGE (J), AND LOCKNUTS (S). HAND TIGHTEN ONLY ATTACH THE BACK OF THE TOP FRAME ASSEMBLY TO THE FRAME SUPPORT TUBES WITH M12 x 65MM BOLTS (P), M12 WASHERS (U), AND LOCKNUTS (S).
-
Page 10: Floating Pulley Assembly
FLOATING PULLEY ASSEMBLY (NOTE: THE NUTS USED ON THIS BENCH ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT.) ASSEMBLE THE FLOATING PULLEY ASSEMBLY USING THE 4-1/2” PULLEYS (K), THE PULLEY FLANGES (I), THE M10 x 45MM BOLTS (R), THE 10MM FLAT WASHERS (V), AND THE 10MM LOCKNUTS (T). -
Page 11: Cable Installation
CABLE INSTALLATION DISREGARD THIS STEP IF USING WITH STACK LOADED ATTACHMENT NOTE: BOTH CABLES ARE THE SAME LENGTH THIS CHAIN ATTACHES BETWEEN THE END OF THE CABLE AND THE MOUNTING FLANGE ON THE FRONT SUPPORT. THE CHAIN ALLOWS FOR CABLE LENGTH ADJUSTMENT THIS CHAIN ATTACHES BETWEEN THE OTHER END OF THE CABLE AND THE LOW ROW BAR. -
Page 12: Safety Notice
SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
