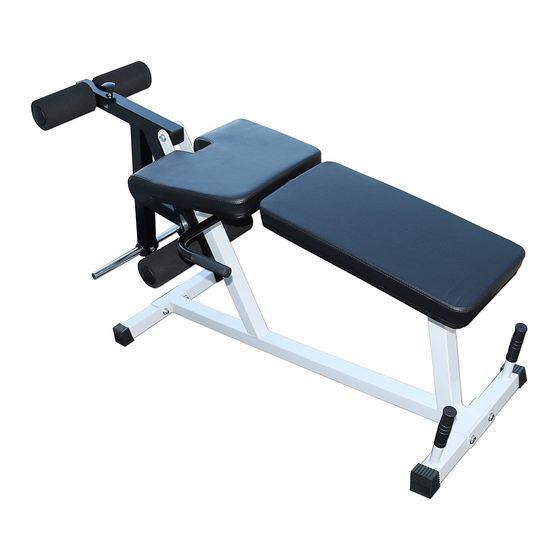

ASSEMBLY INSTRUCTIONS FOR
THE DF807 LEG CURL / LEG EXTENSION
(888) 258-0533
FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY
*NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF807 LEG CURL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Deltech Fitness DF807 LEG CURL

Summary of Contents for Deltech Fitness DF807 LEG CURL

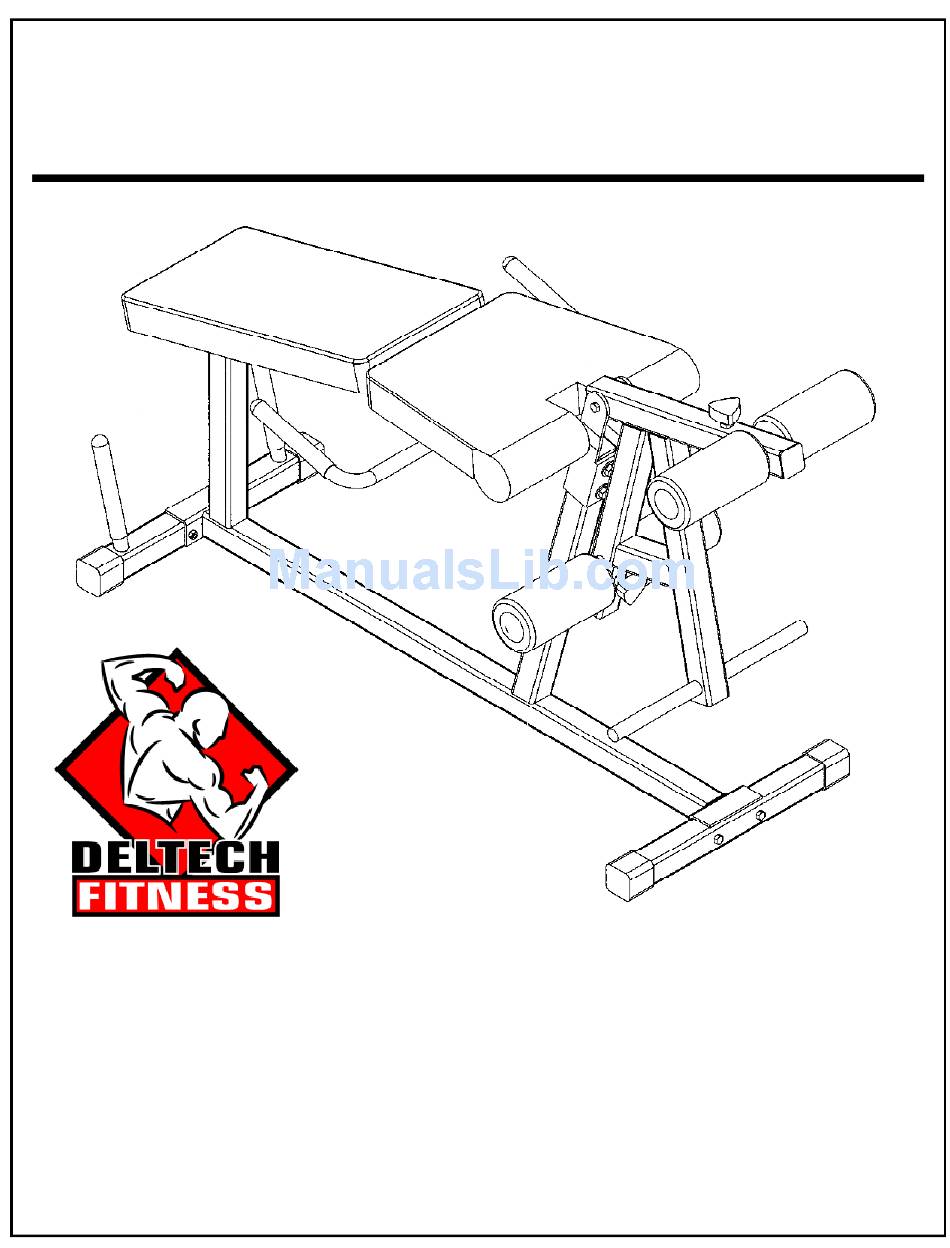

  • Page 1 ASSEMBLY INSTRUCTIONS FOR THE DF807 LEG CURL / LEG EXTENSION (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...

  • Page 2: Box Contents

    WEIGHT PLATE QTY 2 QTY 1 MOUNT BODY FRAME QTY 1 QTY 1 DF807 DF807 HARDWARE INSTRUCTIONS QTY 1 QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 3 QTY 8 QTY 1 MUSHROOM CAP 10MM WASHER QTY 4 QTY 8 (888) 258-0533 FOR YOUR SAFETY READ AL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...

  • Page 4: Frame Assembly

    FRAME ASSEMBLY TOOLS REQUIRED: WRENCHES OR METRIC SOCKET SET ASSEMBLE THE FRONT FOOT (D) TO THE BODY FRAME (K) USING THE M12 x 76MM BOLTS (S), 12MM WASHERS (X), AND 12MM LOCK NUTS (W). NOW INSTALL THE RUBBER SHOES (P). ASSEMBLE THE REAR FOOT (F) ONTO THE BODY FRAME (K) USING THE M12 x 76MM BOLTS (S), 12MM WASHERS (X), AND 12MM LOCK NUTS (W).

  • Page 5: Bracket Installation

    BRACKET INSTALLATION INSTALL SQUARE CAP (M) IN TO THE BODY FRAME ASSEMBLY. ATTACH THE MOUNT (L) ON TO THE BODY FRAME ASSEMBLY USING 12MM x 76MM BOLTS (S), 12MM WASHERS (X) AND 12MM NUT (W).

  • Page 6: Handle Installation

    HANDLE INSTALLATION Note: Handle can be mounted facing forward or backward depending on user preference SCREW THE RUBBER BUMPER (N) ONTO THE BODY FRAME ASSEMBLY. SLIDE THE HAND GRIPS (O) ONTO THE HANDLE (H). ATTACH THE HANDLE (H) TO THE BODY FRAME ASSEMBLY USING THE 12MM x 76MM CARRIAGE BOLTS (T), 12MM WASHERS (X), AND 12MM LOCK NUTS (W).
  • Page 7 FRONT & REAR PAD ASSEMBLY HANDLE REMOVED FOR CLARITY ATTACH THE FRONT AND REAR PAD (B) & (C) TO THE BODY FRAME ASSEMBLY USING THE 10MM x 25MM BOLTS (U) AND THE 10MM WASHERS (Y).

  • Page 8: Leg Extension Assembly

    LEG EXTENSION ASSEMBLY SLIDE THE ADJUSTMENT TUBES (E) INTO EACH END OF THE LEG SWING (G). SLIDE THE 2 LEG PAD TUBES (I) THROUGH THE ADJUSTMENT TUBES UNTIL AN EQUAL AMOUNT IS ON EACH SIDE. NOW SLIDE THE WEIGHT PLATE ROD (J) THROUGH THE LEG SWING (G) AND ADJUST UNTIL EVEN ON BOTH SIDES.
  • Page 9 LEG EXTENSION ASSEMBLY SLIDE THE LEG PADS (A) ONTO BOTH SIDES OF EACH OF THE LEG PAD TUBES. INSTALL THE MUSHROOM CAPS (Z) INTO THE ENDS OF THE LEG PAD TUBES AND TAP WITH RUBBER MALLET.. INSERT KNOBS (Q) INTO LEG SWING ASSEMBLY. INSTALL SQUARE CAPS (M) INTO EACH TUBE END AND TAP WITH RUBBER MALLET.
  • Page 10 LEG EXTENSION INSTALLATION ATTACH THE LEG SWING ASSEMBLY TO THE BODY FRAME ASSEMBLY USING THE 12MM x 90MM BOLT (R), 12MM WASHERS (X), AND 12MM NUT (W). TIGHTEN WITH WRENCH. MAKE SURE ALL THE BOLTS ARE TIGHT BEFORE USE. REMEMBER TO CHECK THEM PERIODICALLY TO ENSURE THEY ALWAYS STAY TIGHT.

  • Page 11: Safety Notice

    SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
