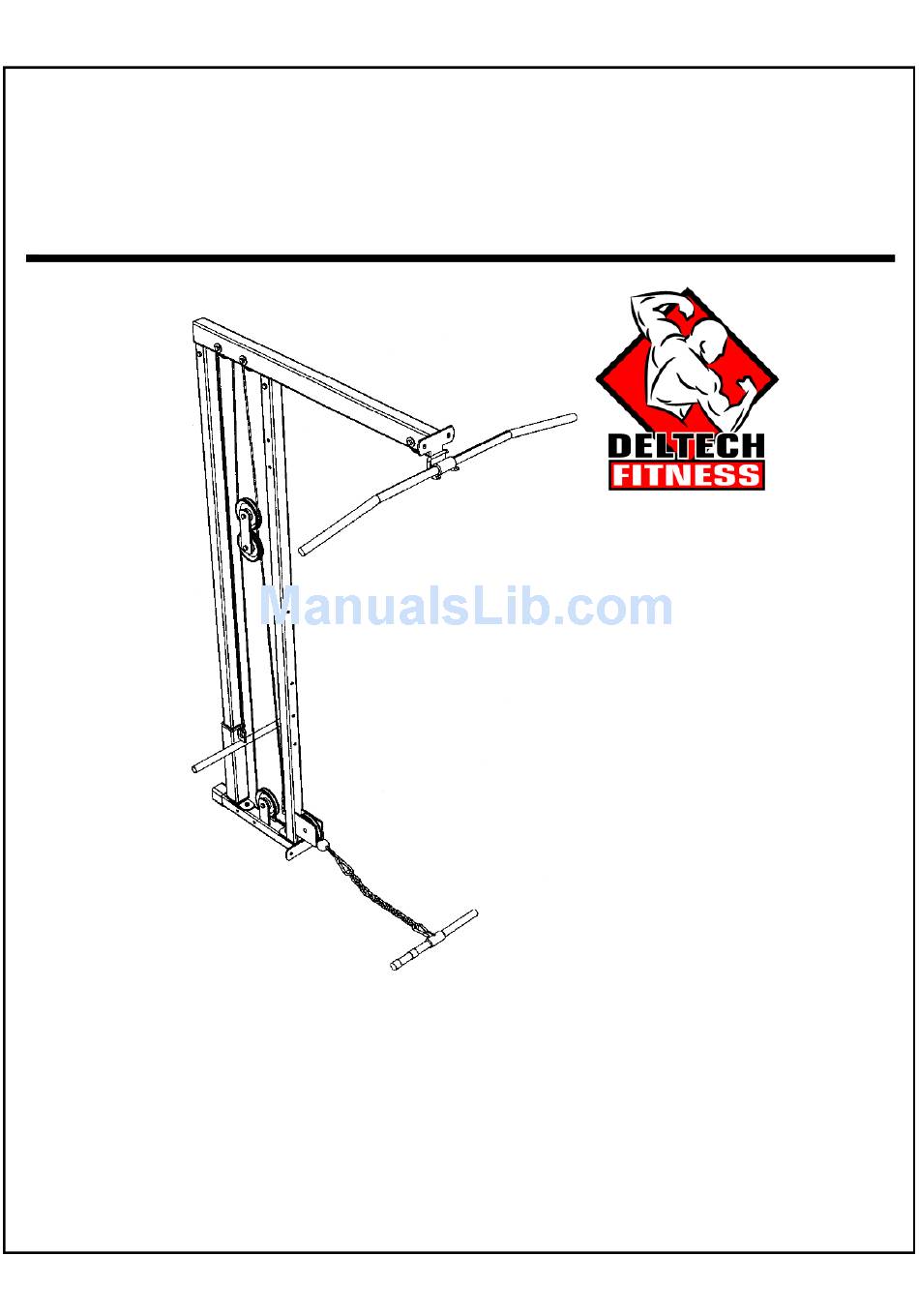

- Page 1 ASSEMBLY INSTRUCTIONS FOR THE DF830 LAT ATTACHMENT (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
-
Page 2: Box Contents
QTY 1 QTY 1 5” FLANGE 4” FLANGE QTY 2 QTY 2 DF830 DF830 HARDWARE INSTRUCTIONS QTY 1 QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533... - Page 3 QTY 4 QTY 5 QTY 4 QTY 15 M10 WASHER SNAP HOOK QUICK CLIP QTY 22 QTY 5 QTY 2 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
-
Page 4: Frame Assembly
FRAME ASSEMBLY TOOLS REQUIRED: METRIC WRENCHES OR SOCKET SET INSTALL THE REAR SUPPORT (G) TO THE BOTTOM SUPPORT (B), ALIGNING HOLES IN FLANGE WITH PIN AND THREADED STUD. INSTALL 12MM WASHER (W) AND 12MM NUT (V) AND TIGHTEN. INSTALL THE FRONT SUPPORT (H) TO THE BOTTOM SUPPORT (B), ALIGNING HOLES IN FLANGE WITH PIN AND THREADED STUD. - Page 5 FRAME ASSEMBLY (NOTE: THE NUTS USED ON THIS ARE LOCKNUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT.) INSTALL THE 4 1/2” PULLEYS (M) INTO THE FRAME USING THE M12 x 55MM BOLTS (T), THE M12 FLAT WASHERS (W), AND THE M12 LOCKNUTS(V). INSTALL THE RUBBER SHOE (K) ONTO THE BOTTOM SUPPORT.
- Page 6 WEIGHT CARRIAGE ASSEMBLY INSTALL THE REDUCERS (M) INTO EACH END OF WEIGHT CARRIAGE (F). SCREW THE RUBBER BUMPER (L) INTO BOTTOM FLANGE.
- Page 7 FRAME ASSEMBLY INSTALL THE WEIGHT CARRIAGE ASSEMBLY ONTO THE REAR FRAME WITH THE WEIGHT BAR FACING FORWARD. SLIDE DOWN UNTIL IT RESTS ON THE RUBBER BUMPER.
-
Page 8: Top Frame Assembly
TOP FRAME ASSEMBLY (NOTE: THE NUTS USED ON THIS ARE LOCKNUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT.) INSTALL THE 3-1/2” PULLEYS (P) INTO THE TOP FRAME (A) USING THE PULLEY BUSHINGS (Q), THE M12 x 65MM BOLTS (T), AND THE M12 LOCK NUTS (V). - Page 9 FRAME ASSEMBLY INSTALL THE UPPER FRAME ASSEMBLY TO THE FRAME SUPPORTS WITH M12 x 65MM BOLTS (S), M12 WASHERS (W), AND LOCKNUTS (B).
-
Page 10: Floating Pulley Assembly
FLOATING PULLEY ASSEMBLY (NOTE: THE NUTS USED ON THIS BENCH ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT.) ASSEMBLE THE FLOATING PULLEY ASSEMBLY USING THE 4 1/2” PULLEYS (O), THE 5” FLANGES (I), THE M12 x 55MM BOLTS (U), THE 12MM FLAT WASHERS (W), AND THE 12MM LOCKNUTS (V). -
Page 11: Cable Installation
CABLE INSTALLATION WARNING: THE BAR CATCH IS MEANT FOR HOLDING THE BAR ONLY, NOT FOR BODY WEIGHT NOTE: BOTH CABLES ARE THE SAME LENGTH THE CHAIN ATTACHES TO THE BOTTOM CABLE BETWEEN THE CABLE AND THE ROW BAR. STARTING WITH THE CABLE END WITHOUT THE BALL, INSTALL UPPER CABLE OVER FRONT PULLEY, BACK TO MIDDLE PULLEY, DOWN TO TOP PULLEY OF FLOATING PULLEY ASSEMBLY, UP TO REAR PULLEY AND DOWN TO WEIGHT CARRIAGE. -
Page 12: Final Installation
FINAL INSTALLATION ATTACH THE LAT ATTACHMENT TO THE POWER RACK OR SMITH MACHINE USING THE M12 x 75MM BOLTS (S), 4” FLANGE PLATES (J), M12 WASHERS (W) AND M12 LOCKNUTS (V). MAKE SURE ALL THE BOLTS ARE TIGHT BEFORE USE. REMEMBER TO CHECK THEM PERIODICALLY TO MAKE SURE THEY ALWAYS STAY TIGHT. -
Page 13: Safety Notice
SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU. - Page 14 T-SHIRT ORDER FORM DELTECH FITNESS T - SHIRT SIZES AVAILABLE ARE M-XXL. THE COLOR OF THE SHIRTS ARE WHITE. RED AND BLACK LOGO. ONLY $12.99 DELTECH FITNESS MUSCLE SHIRT SIZES AVAILABLE M-XXL THE COLOR AVAILABLE IS BLACK. RED AND WHITE LOGO.
