Summary of Contents for Deltech Fitness DF2000

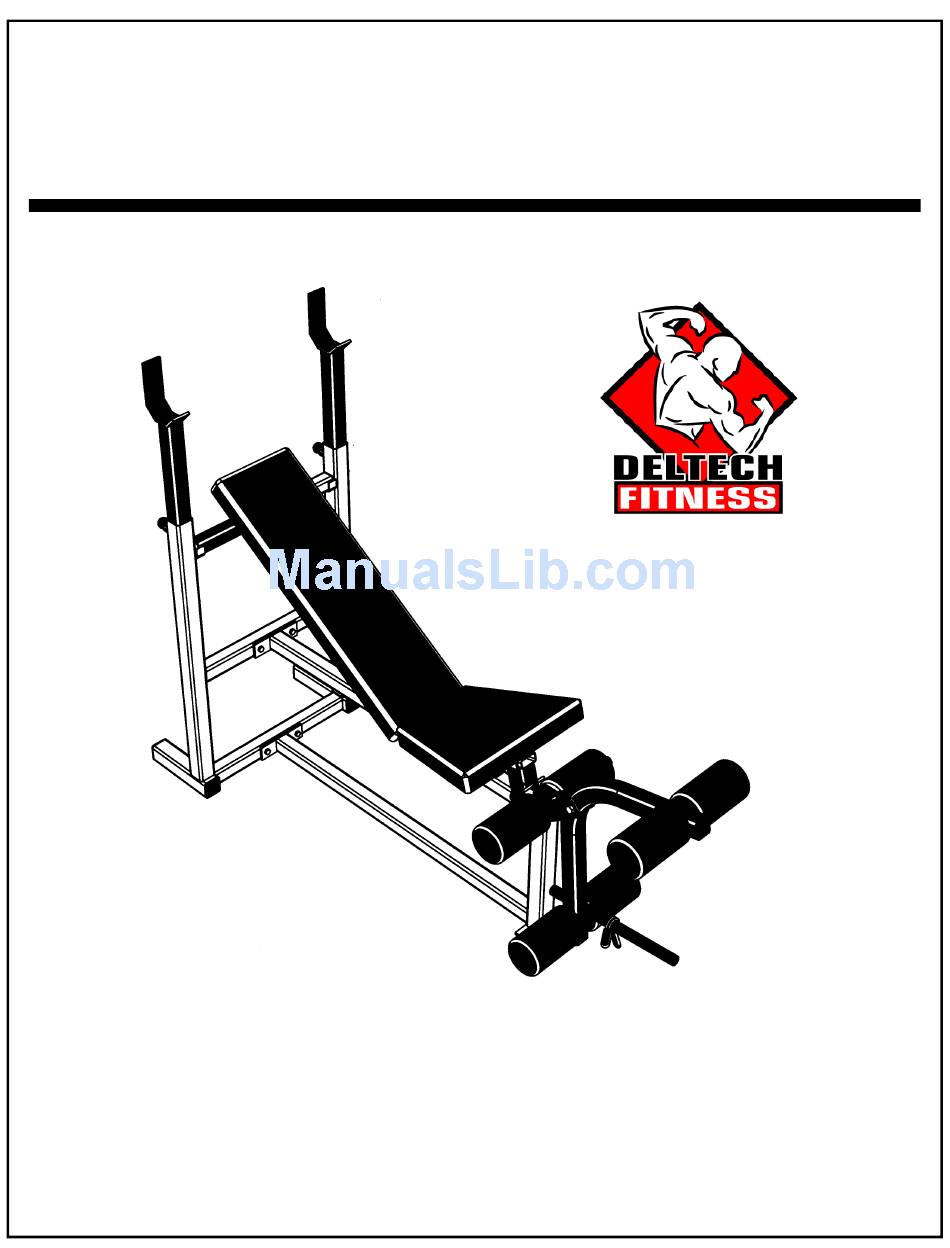

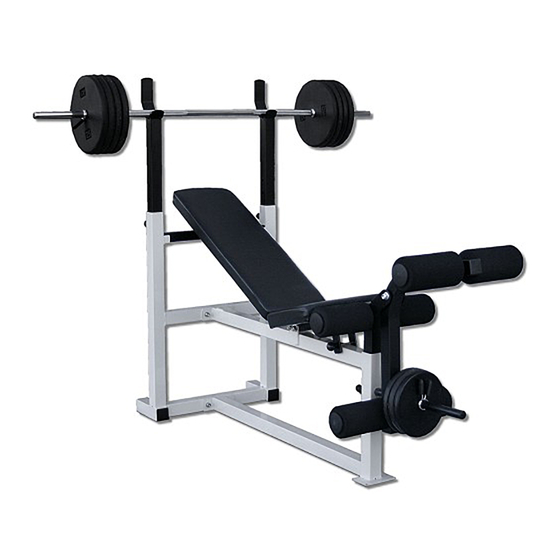

- Page 1 ASSEMBLY INSTRUCTIONS FOR THE DF2000 STANDARD BENCH (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
-
Page 2: Box Contents
BOX CONTENTS BACKREST SEAT LEG YOKE WEIGHT HOLDER QTY 1 QTY 1 QTY 1 QTY 2 BACKREST SUPPORT SEAT SUPPORT SEAT FRAME QTY 1 QTY 1 QTY 1 INCLINE SUPPORT LEG EXTENSION WEIGHT FRAME QTY 1 QTY 1 QTY 1 INSTRUCTIONS HARDWARE LEG PAD... - Page 3 HARDWARE 1” x 2” CAP 1-1/2” SQUARE CAP 2” SQUARE CAP 1-3/4” SQUARE CAP QTY 2 QTY 2 QTY 4 QTY 3 (factory installed) (factory installed) (factory installed) (factory installed) RUBBER BUMPER SEAT SUPPORT PIN TURN KNOB MUSHROOM CAP QTY 1 QTY 1 QTY 3 QTY 6...
- Page 4 USE THE M10 x 25MM BOLTS (X) AND THE M10 FLAT WASHERS (Z) TO SECURE THE BACKREST (A) AND THE SEAT (B) TO THE SUPPORTS (E) AND (F). *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
-
Page 5: Leg Extension Assembly
THE LEG YOKE (C). THEN SLIDE THE LEG PADS (L) ON TO THE LEG PAD TUBES (K). INSERT THE MUSHROOM CAPS (Q). *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533... - Page 6 WEIGHT FRAME ASSEMBLY NOTE: THE INCLINE BAR (J) IS NOT USED IN THE FLAT POSITION (NOTE: THE NUTS USED ON THIS BENCH ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT.) INSERT THE WEIGHT HOLDERS (D) INTO THE WEIGHT FRAME (H). SECURE THE WEIGHT HOLDERS BY LOOSENING THE KNOB ON THE PULL-PIN AND PULLING OUTWARD TO ALLOW THE WEIGHT HOLDERS TO ADJUST TO THE DESIRED HEIGHT.
-
Page 7: Main Frame Assembly
MAIN FRAME ASSEMBLY ATTACH MAIN FRAME (G) TO THE WEIGHT FRAME ASSEMBLY USING M12 x 74MM BOLTS (V), THE M12 WASHERS (Y) AND M12 LOCK NUTS (AA). -
Page 8: Final Assembly
FINAL ASSEMBLY ATTACH THE BACKREST ASSY TO THE MAIN FRAME ASSEMBLY USING THE M12 x 79MM BOLT (U), THE M12 WASHERS (Y) AND THE M12 LOCK NUT (AA). ATTACH THE SEAT ASSEMBLY TO THE MAIN FRAME ASSEMBLY USING THE M12 x 79MM BOLT (U) , THE M12 WASHER (Y) AND THE M12 LOCK NUT (AA). - Page 9 ADJUSTMENT ADJUSTING THE WEIGHT ARMS: RAISE AND LOWER THE WEIGHT ARMS USING THE PULL PIN. TURN THE KNOB TO LOOSEN FOR ADJUSTMENT. MAKE SURE THE PULL PIN IS SECURE IN THE ADJUSTMENT HOLE THEN TURN THE KNOB TO TIGHTEN BEFORE USE. (THE PULL PIN IS DESIGNED TO FIT TIGHTLY AGAINST THE TUBE AND WILL NOT ADJUST UNLESS IT IS LOOSENED FIRST.) THE LEG EXTENSION IS ADJUSTED THE SAME WAY.
-
Page 10: Safety Notice
SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU. - Page 11 WEIGHT BENCH ACCESSORIES DF106 Add leg extension and leg curls to your bench with this leg attachment. Get more information at www.fitnessdestination.com DF105 Add preacher curls to your bench with this preacher curl attachment. Get more information at www.fitnessdestination.com DF1200 Add lat pulls to your bench with this lat attachment.
- Page 12 T-SHIRT ORDER FORM DELTECH FITNESS T - SHIRT SIZES AVAILABLE ARE M-XXL. THE COLOR OF THE SHIRTS ARE WHITE. RED AND BLACK LOGO. ONLY $12.99 DELTECH FITNESS MUSCLE SHIRT SIZES AVAILABLE M-XXL THE COLOR AVAILABLE IS BLACK. RED AND WHITE LOGO.
