Deltech Fitness DF835 Assembly Manual

Weight stack attachment
Hide thumbs

Advertisement

Quick Links

Download this manual
DF835
WEIGHT STACK ATTACHMENT
Assembly Manual
(888) 258-0533
FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY
*NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533

Advertisement

loading
Need help?

Need help?

Do you have a question about the DF835 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Deltech Fitness DF835

Summary of Contents for Deltech Fitness DF835

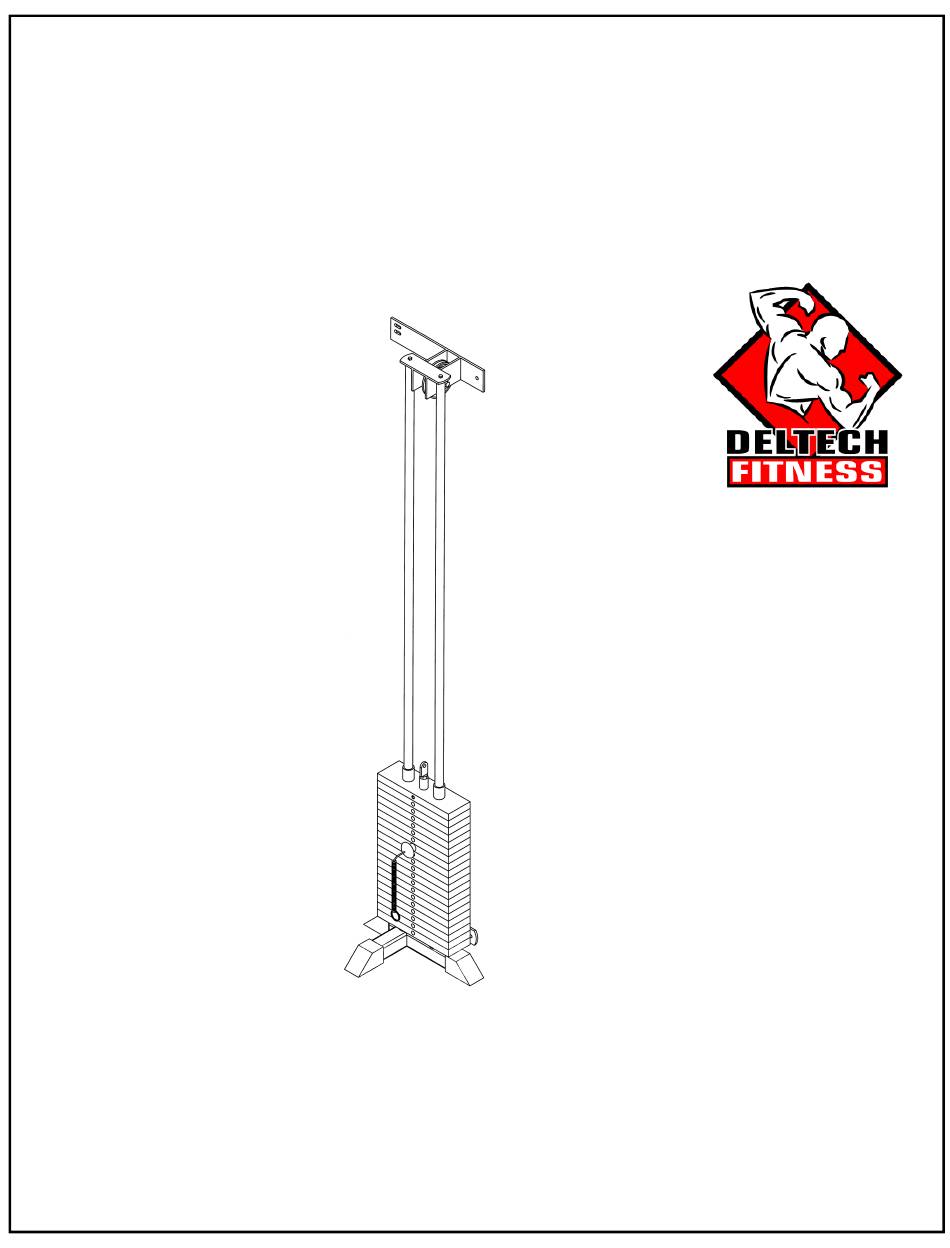

  • Page 1 DF835 WEIGHT STACK ATTACHMENT Assembly Manual (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 2 QTY 1 (19) 10 LB. PLATES QTY 1 QTY 1 QTY 1 CHROME RODS WEIGHT STACK ROD QTY 2 QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 3 QTY 3 QTY 1 SPRING PIN CABLE WEIGHT STACK RUBBER DONUTS QTY 1 QTY 2 CONNECTOR QTY 2 QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 4 WEIGHT STACK BOTTOM FRAME ASSEMBLY INSTALL THE RUBBER SHOES (M) 0NTO THE BOTTOM SUPPORT(B). ATTACH THE BOTTOM SUPPORT (B) TO THE LAT ATTACHMENT USING THE M10 x 75MM BOLTS (I) M10 FLAT WASHERS (J) AND M10 LOCK NUTS (K).

  • Page 5: Weight Stack Assembly

    WEIGHT STACK ASSEMBLY INSERT WEIGHT STACK ROD (E) INTO CENTER HOLE OF TOP PLATE (D) ALIGNING TOP HOLE OF WEIGHT STACK ROD WITH SPRING PIN HOLE. INSERT SPRING PIN (P) AND TAP WITH HAMMER UNTIL FLUSH WITH SURFACE. SCREW WEIGHT STACK CONNECTOR (R) INTO TOP OF WEIGHT STACK ROD AND TIGHTEN WITH WRENCH.

  • Page 6: Weight Stack Installation

    WEIGHT STACK INSTALLATION INSTALL THE RUBBER DOUGHNUTS (O) ONTO THE BOTTOM OF THE CHROME RODS (F) , LEAVING APPROXIMATELY 2” PROTRUDING. INSERT THE CHROME RODS INTO THE TWO OUTER HOLES IN THE BOTTOM SUPPORT. ASSEMBLE THE WEIGHT STACK (C) BY SLIDING EACH PLATE OVER THE CHROME RODS (F) AND ON TO THE BOTTOM SUPPORT.
  • Page 7 UPPER PULLEY ASSEMBLY INSTALLATION INSTALL THE 4-1/2” PULLEY (G) INTO THE UPPER PULLEY FRAME (A), USING M10 x 75MM BOLT (I), PULLEY BUSHINGS (H), AND M10 LOCKNUT (K). REMOVE THE BOLTS, NUTS, AND WASHERS THAT HOLD THE UPPER PULLEY FRAME ASSEMBLY TO THE BODY.
  • Page 8 UPPER CABLE INSTALLATION UPPER PULLEY FRAME REMOVED FOR CLARITY NOTE: UPPER CABLE IS SHORTER THAN THE BOTTOM CABLE FLOATING PULLEY ASSEMBLY INSTALL UPPER CABLE OVER FRONT PULLEY, BACK TO REAR PULLEY, DOWN TO TOP PULLEY OF FLOATING PULLEY ASSEMBLY, UP TO STACK ASSEMBLY PULLEY AND DOWN TO SELECTOR ROD ASSEMBLY.
  • Page 9 LOWER CABLE INSTALLATION INSTALL LOWER CABLE UNDER FRONT PULLEY AND BACK TO REAR PULLEY. CONTINUE UP AND OVER LOWER PULLEY OF FLOATING PULLEY ASSEMBLY. ATTACH SNAP HOOK TO END OF CABLE AND THEN TO CONNECTING CHAIN. ATTACH SNAP HOOK TO THE OTHER END OF THE CHAIN AND THEN TO FRAME POLE BRACKET.

  • Page 10: Safety Notice

    SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
