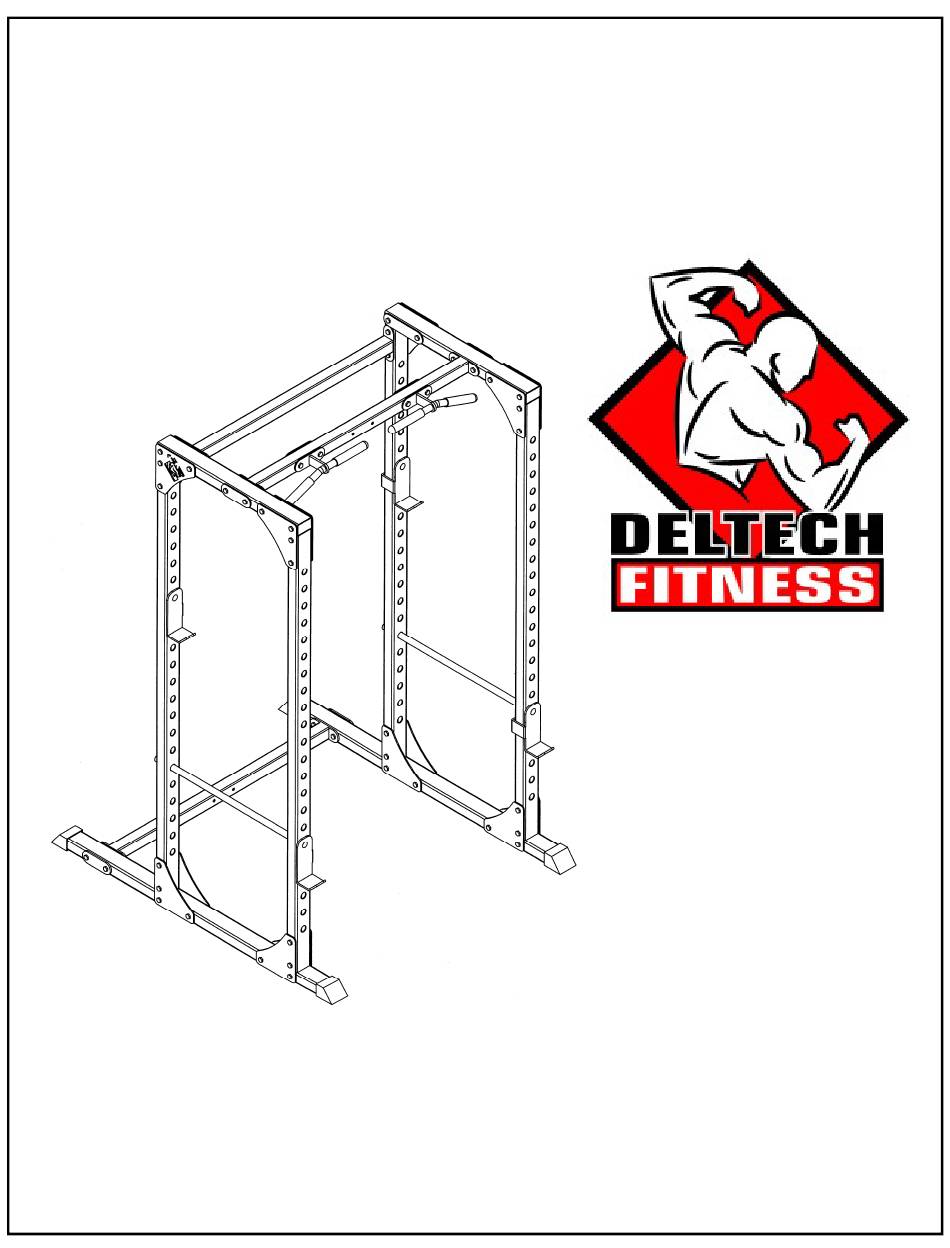

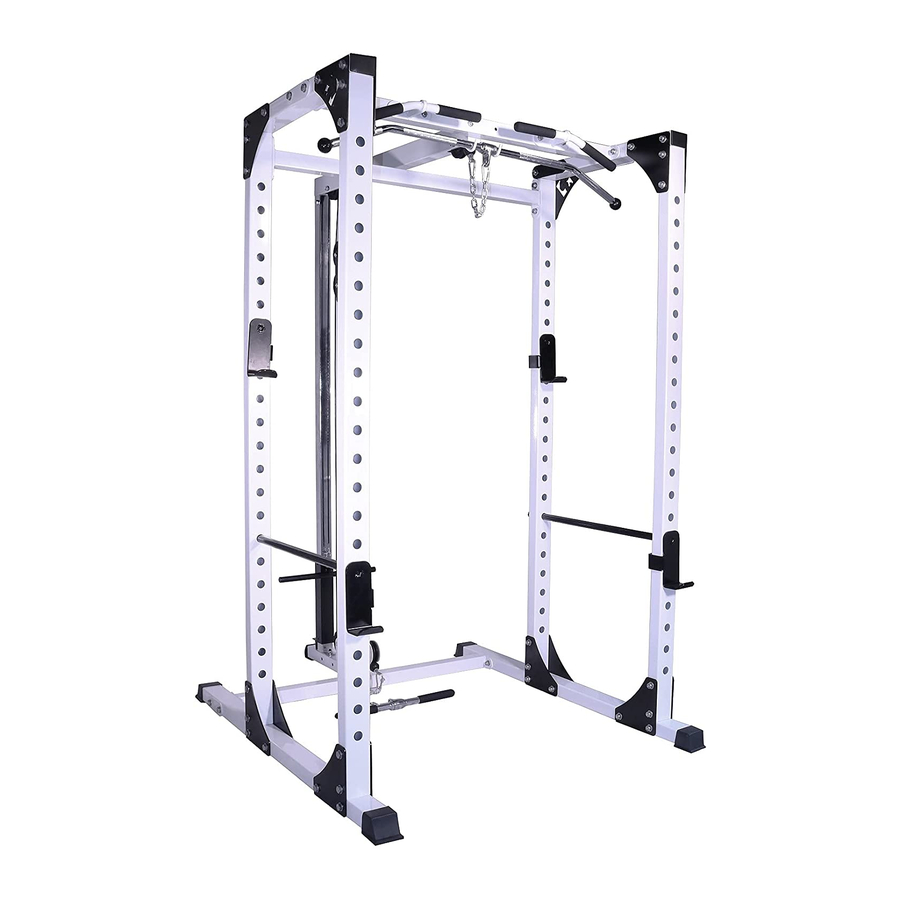

- Page 1 DF820/DF825 POWER RACK Assembly Manual (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
-
Page 2: Box Contents
QTY 1 EACH QTY 1 QTY 6 (2 WITH LOGO) BOX 3 BOX 3 BOX 3 BOX 3 BOX 3 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533... - Page 3 M12 WASHER M10 WASHER M10 x 75MM BOLT QTY 40 QTY 80 QTY 8 QTY 4 M10 LOCKNUT QTY 4 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 4 TOOLS REQUIRED: WRENCHES OR METRIC SOCKET SET ATTACH THE BOTTOM CROSSMEMBER (B) TO THE BOTTOM FRAME SUPPORTS (F) USING THE M12 x 100MM BOLTS (P), SHORT FLANGES (I), M12 WASHERS (R), AND M12 LOCKNUTS (S). DO NOT TIGHTEN NUTS AND BOLTS AT THIS TIME. WAIT UNTIL FRAME IS FULLY ASSEMBLED.
- Page 5 ATTACH THE UPRIGHTS (A) TO THE BOTTOM FRAME SUPPORTS USING THE M12 x 100MM BOLTS (P), CORNER FLANGES (K), M12 WASHERS (R), AND M12 LOCKNUTS (S). REPEAT FOR OPPOSITE SIDE. FRAME ASSEMBLY...
- Page 6 INSERT RECTANGULAR CAP (N) INTO ENDS OF TOP FRAME SUPPORTS (E). PLACE THE TOP FRAME SUPPORTS (E) ON TOP OF THE UPRIGHTS. FRAME ASSEMBLY...
- Page 7 INSTALL LOGO CORNER FLANGE HERE AND ON OUTER FRONT OF OPPOSITE SIDE OF POWER RACK INSTALL CORNER BRACKET (K) IN REAR USING THE 2 TOP BOLT HOLES WITH M12 x 100MM BOLTS (P), M12 WASHERS (R), LONG FLANGE (J) AND M12 LOCKNUTS (S).
- Page 8 ATTACH REAR TOP CROSSMEMBER (C) WITH M12 x 100MM BOLTS (P), M12 WASHERS (R), AND M12 LOCKNUTS (S). CROSSMEMBER INSTALLATION...
- Page 9 ATTACH FRONT TOP CROSSMEMBER (D) WITH M12 x 100MM BOLTS (P), M12 WASHERS(R), SHORT FLANGE (I), AND M12 LOCKNUTS (S). AT THIS POINT, TIGHTEN ALL NUTS AND BOLTS SECURELY. THE LOCKNUTS USED ON THIS RACK HAVE A NYLON INSERT AND YOU MUST USE ENOUGH FORCE TO TIGHTEN THEM ON TO THE BOLT.
- Page 10 SLIDE HANDLE GRIPS (O) ON TO CHIN-UP HANDLES. CHIN-UP HANDLES INSTALLATION...
- Page 11 ATTACH CHIN-UP HANDLES (H) WITH M10 x 75MM BOLTS (Q), M10 WASHERS(T), SHORT FLANGE (I), AND M10 LOCKNUTS (U). CHIN-UP HANDLES INSTALLATION...
- Page 12 INSERT SPOTTER RODS (G) TO DESIRED HEIGHT, MAKING SURE THAT THEY ARE IN THE SAME NUMBER HOLE IN THE FRONT AND BACK. SLIDE IN UNTIL BAR CATCH CONTACTS FRONT UPRIGHT. ROTATE BAR CATCH TO LOCK IT INTO PLACE. REPEAT FOR OPPOSITE SIDE. SPOTTER ROD INSTALLATION...
- Page 13 INSERT BAR CATCHES (L) TO DESIRED HEIGHT. SLIDE IN UNTIL IT CONTACTS UPRIGHT. ROTATE BAR CATCH TO LOCK IT INTO PLACE. REPEAT FOR OPPOSITE SIDE. BAR CATCH INSTALLATION...
-
Page 14: Safety Notice
SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
