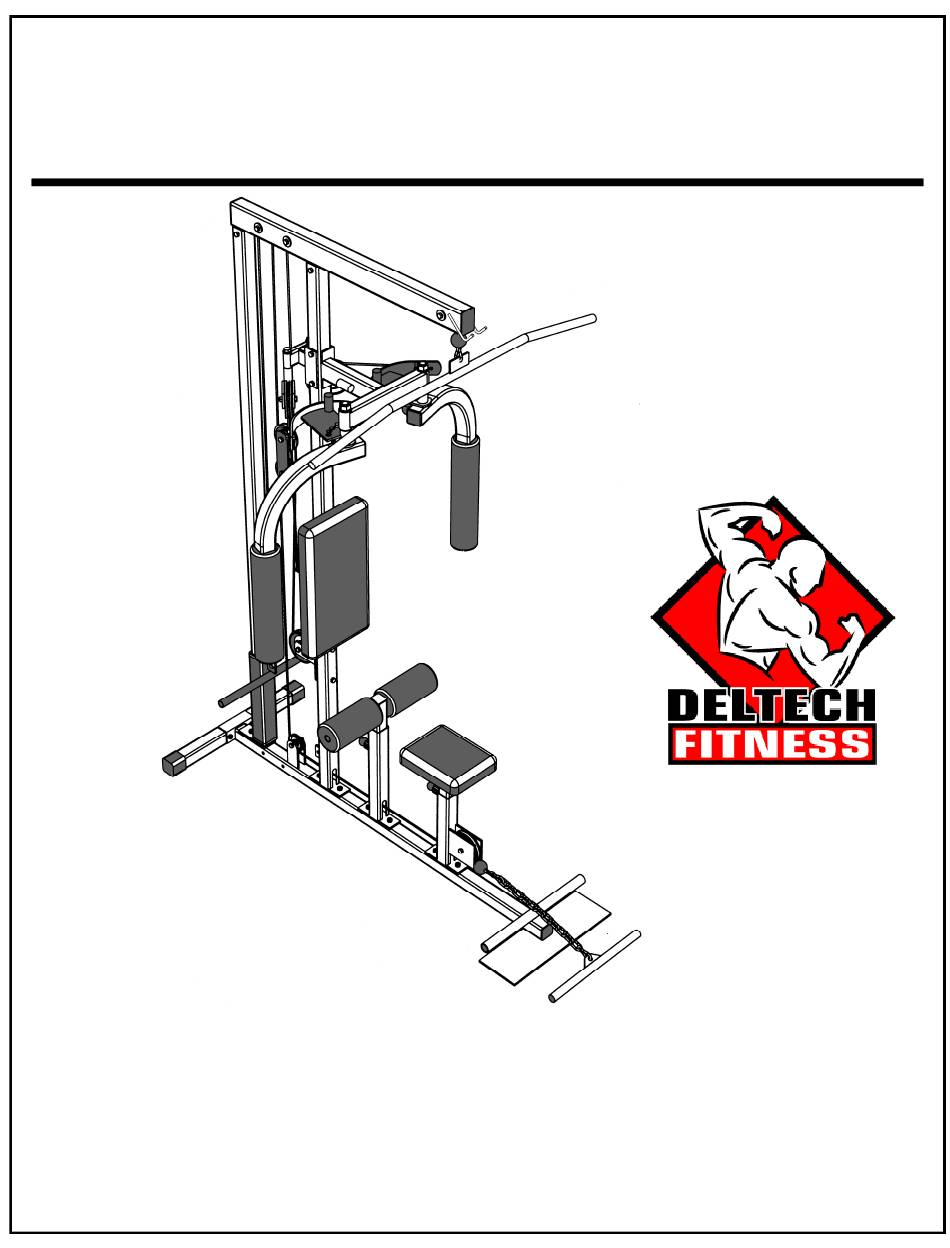

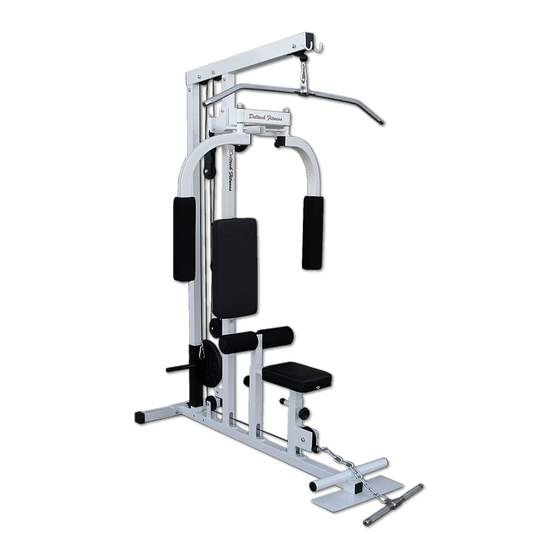

ASSEMBLY INSTRUCTIONS FOR
THE DF930 LAT. MACHINE
700 LB WEIGHT CAPACITY
The DF908 consists of the DF906 Lat
Machine and the DF832 Pec Attachment
(888) 258-0533
FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY
*NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Deltech Fitness DF930
Summary of Contents for Deltech Fitness DF930
- Page 1 The DF908 consists of the DF906 Lat Machine and the DF832 Pec Attachment (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 2 REVOLVING CHROME ROW BAR QTY 1 ASSEMBLY REVOLVING CHROME INSTRUCTIONS LAT CABLE LAT BAR QTY 1 QTY 2 QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 3 LEG PAD TUBE ROLLER PAD FLANGE BOTTOM PULLEY HARDWARE PACK QTY 1 QTY 2 QTY 2 FRAME QTY 1 QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 4 3-1/2” PULLEY PULLEY BUSHING SNAP HOOK QTY 3 QTY 6 QTY 5 (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 5 HARDWARE M10 x 76MM BOLT M10 x 43MM BOLT CHAIN M10 x 67MM QTY 5 QTY 4 QTY 1 CARRIAGE BOLT QTY 9 M10 WASHER M10 LOCKNUT RUBBER M10 x 25MM BOLT QTY 16 QTY 25 BUMPER QTY 6 QTY 1 OLYMPIC ADAPTER REDUCER QTY 2...
- Page 6 BOTTOM FRAME ASSEMBLY (NOTE: THE NUTS USED ON THIS BENCH ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT.) TOOLS REQUIRED: METRIC WRENCHES OR SOCKET SET Some components may be pre-installed from the factory (SEE INSET) ASSEMBLE THE 4 ½” PULLEY (Y) INTO THE BOTTOM PULLEY FRAME (R) USING THE M10 x 43 BOLT (GG), M10 WASHERS (II), AND M10 LOCKNUT (JJ).
- Page 7 SEAT FRAME ASSEMBLY ATTACH THE SEAT PAD (H) TO THE SEAT BRACKET (I) USING THE M10 x 25MM BOLTS (HH) AND THE M10 FLAT WASHERS (II). THEN SLIDE THE SEAT BRACKET (I) INTO THE SEAT SUPPORT (J). (WAIT TO COMPLETE THE FOLLOWING STEP UNTIL THE CABLES ARE INSTALLED) INSTALL THE 4 ½”...
- Page 8 LEG HOLD DOWN ASSEMBLY SLIDE THE HOLD-DOWN TUBE (L) INTO THE HOLD-DOWN SUPPORT (M) NEXT SLIDE THE LEG PAD TUBE (O) INTO THE HOLD-DOWN TUBE (L). THEN SLIDE THE ROLLER PADS (P) OVER THE LEG PAD TUBE (O) AND INSERT THE PLASTIC CAPS (U).
- Page 9 WEIGHT SLIDE ASSEMBLY INSTALL THE REDUCERS (MM) INTO EACH END OF WEIGHT SLIDE (K). SCREW THE RUBBER BUMPER (MM) INTO BOTTOM FLANGE. A SPRAY LUBRICANT IS RECOMMENDED FOR THE INNER SURFACE OF THE REDUCERS TO ENSURE SMOOTH MOVEMENT OF THE WEIGHT SLIDE.
- Page 10 FLOATING PULLEY ASSEMBLY ASSEMBLE THE FLOATING PULLEY ASSEMBLY BY USING 4-1/2” PULLEYS (Y), FLANGES (Q), M10 x 43 BOLTS (GG), M10 WASHERS (II), AND M10 LOCKNUTS (JJ).
- Page 11 MAIN FRAME ASSEMBLY WEIGHT SLIDE ASSY (NOTE: THE NUTS USED ON THIS BENCH ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT.) INSTALL THE WEIGHT SLIDE ASSEMBLY ONTO THE BACK SUPPORT (A) (*NOTE THIS STEP IS NOT NEEDED IF YOU ARE INSTALLING THE DF935 STACK KIT) NEXT ASSEMBLE THE UPPER PULLEY FRAME (G) ONTO THE FRONT AND BACK SUP- PORTS (A,B) USING THE M10 x 25MM BOLTS(HH) AND M10 WASHERS (II) .
- Page 12 FINAL ASSEMBLY MAIN FRAME ASSY LEG HOLDDOWN ASSY SEAT FRAME ASSY BOTTOM FRAME ASSY LAY THE BOTTOM FRAME ASSEMBLY ON ITS SIDE. ATTACH THE MAIN FRAME ASSEMBLY, THE LEG HOLDDOWN ASSEMBLY, AND THE SEAT FRAME ASSEM- BLY USING THE M10 x 67MM CARRIAGE BOLTS (EE), M10 WASHERS (II), AND M10 LOCKNUTS (JJ).
- Page 13 CABLE INSTALLATION USE THE CHAIN HERE FOR TRICEP EXERCISES. USE THE CHAIN HERE FOR CURLS AND SHOULDER SHRUGS. ATTACH THE CABLES (NOTE THE CABLES ARE THE SAME LENGTH). NOW ATTACH THE LAT BAR AND ROW BAR USING THE SNAP HOOKS (CC). USE THE CHAIN (DD) WITH THE ROW BAR OR LAT BAR TO EXTEND THE CABLE LENGTH FOR CURLS OR TRICEP EXERCISES.
- Page 14 ASSEMBLY INSTRUCTIONS FOR THE DF832 PEC ATTACHMENT (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 15 DF832 BOX CONTENTS ARM MOUNT SWIVEL PULLEY FIXED PULLEY SWIVEL PULLEY QTY 1 MOUNT BRACKET BRACKET BRACKET QTY 1 QTY 1 QTY 2 RIGHT HAND CAM LEFT HAND CAM FLOATING PULLEY ARM PAD QTY 1 QTY 1 BRACKET QTY 2 QTY 1 CABLE BACKREST PAD...
- Page 16 M10 LOCK NUT QTY 2 QTY 2 QTY 2 QTY 8 (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 17 ARM & PULLEY MOUNT INSTALLATION FRONT OF MACHINE TOOLS REQUIRED: WRENCHES OR METRIC SOCKET SET ASSEMBLE THE ARM MOUNT (A) AND THE SWIVEL PULLEY MOUNT BRACKET (D) TO THE FRONT SUPPORT OF THE LAT MACHINE USING THE M10 x 75MM BOLTS (R), M10 FLAT WASHERS (W) AND M10 LOCK NUTS (AA) NOTE: THE NUTS USED ON THIS PRODUCT ARE LOCK NUTS SO YOU MUST USE A WRENCH TO TIGHTEN THE BOLT.
- Page 18 CAM & ARM PAD ASSEMBLY INSTALL THE ROLLER PADS (H) ON THE ARMS (K,J). (NOTE IT MAY HELP TO TAKE A DAMP CLOTH AND WET THE ARM BEFORE SLIDING THE PAD ON THE ARM) NEXT INSTALL THE CAMS (E,F) ON THE ARMS. THERE IS A LEFT HAND AND A RIGHT HAND SIDE SO YOU WILL NEED TO LOOK AT THE DIAGRAM TO ENSURE CORRECT INSTALLATION NOW INSERT THE 2”...
- Page 19 ARM INSTALLLATION INSERT THE ARM BUSHINGS (N) INTO THE ARM MOUNT (A). NOW ASSEMBLE THE WEIGHT ARMS TO THE ARM MOUNT (A) USING THE M19 LOCKNUTS (Y)
- Page 20 SWIVEL PULLEY ASSEMBLY ASSEMBLE THE 4 ½” PULLEY (P) INTO THE SWIVEL PULLEY BRACKET (C) USING THE M10 x 50MM BOLT (S), M10 WASHERS (W), AND M10 LOCKNUT (AA). REPEAT FOR OTHER SWIVEL PULLEY ASSEMBLY. SWIVEL PULLEY INSTALLATION INSTALL THE SWIVEL PULLEY ASSEMBLIES TO THE MOUNT BRACKET USING THE M12 x 190MM BOLTS (Q), M12 WASHERS (V), AND...
- Page 21 FIXED PULLEY ASSEMBLY INSTALL THE 4 ½” PULLEY(P) INTO THE FIXED PULLEY BRACKET (B) USING THE M10 x 50MM BOLT (S) M10 WASHERS (W), AND M10 LOCK NUT (AA). FIXED PULLEY & BACKREST INSTALLATION ASSEMBLE THE BACKREST PAD (I) TO THE FRONT SUPPORT OF THE LAT MACHINE USING THE M8 x 70 BOLTS(T) AND THE M8 FLAT WASHERS (X).
- Page 22 FLOATING PULLEY ASSEMBLY ASSEMBLE THE 4 ½” PULLEY (P) TO THE FLOATING PULLEY BRACKET (G) USING THE M10 x 50MM BOLT (S), M10 WASHERS (W) AND M10 NUT (AA).
- Page 23 CABLE INSTALLATION SWIVEL PULLEY ASSEMBLIES FIGURE A FLOATING PULLEY ASSEMBLY ATTACH THE PEC CABLE TO THE CAM ON THE LEFT SIDE USING THE M8 x 25MM BOLT, M8 WASHERS , AND M8 LOCKNUT. (SEE FIGURE A) NOTE: THERE ARE ADJUSTMENT HOLES ON EACH CAM TO COMPENSATE FOR CABLE STRETCH AFTER THE MACHINE IS USED FOR A WHILE.
- Page 24 CABLE INSTALLATION RE-ATTACH LOWER CABLE HERE DISCONNECT LOWER CABLE FROM HERE DISCONNECT THE LOWER CABLE ALREADY ATTACHED TO THE MACHINE AND RUN IT THOUGH THE FIXED PULLEY AND RE-ATTACH IT TO THE RING AT THE BOTTOM OF THE FLOATING PULLEY ASSEMBLY. MAKE SURE ALL YOUR BOLTS ARE TIGHT BEFORE USE.
- Page 25 SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
- Page 26 T-SHIRT ORDER FORM DELTECH FITNESS T - SHIRT SIZES AVAILABLE ARE M-XXL. THE COLOR OF THE SHIRTS ARE WHITE. RED AND BLACK LOGO. ONLY $12.99 DELTECH FITNESS MUSCLE SHIRT SIZES AVAILABLE M-XXL THE COLOR AVAILABLE IS BLACK. RED AND WHITE LOGO.
