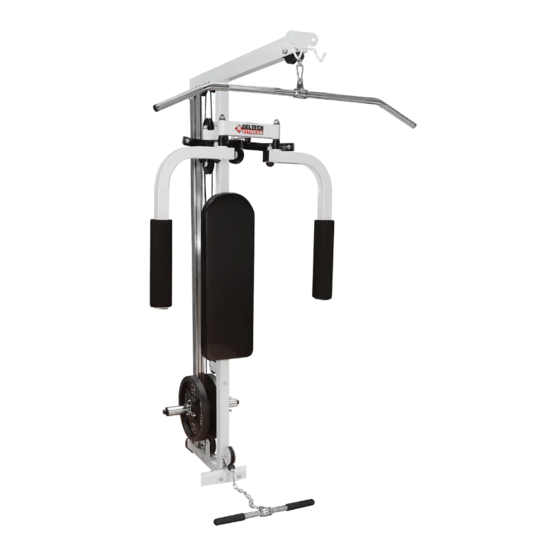

Deltech Fitness DF832 Assembly Manual

Pec attachment
Hide thumbs Also See for DF832:

Advertisement

Quick Links

Download this manual
DF832
PEC ATTACHMENT
Assembly Manual
ASSEMBLY VIDEOS AVAILABLE
Click on the QR Code below for your model to
access the assembly video
DF910– Lat Machine
DF908– Stack Loaded
Lat Machine
(888) 258-0533
FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY
*NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533

Advertisement

loading
Need help?

Need help?

Do you have a question about the DF832 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Deltech Fitness DF832

Summary of Contents for Deltech Fitness DF832

  • Page 1 DF910– Lat Machine DF908– Stack Loaded Lat Machine (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...

  • Page 2: Box Contents

    RIGHT HAND CAM LEFT HAND CAM FLOATING PULLEY QTY 1 QTY 1 BRACKET QTY 1 CABLE BACKREST PAD RIGHT HAND ARM LEFT HAND ARM QTY 1 QTY 1 QTY 1 QTY 1 DF832 DF832 INSTRUCTIONS HARDWARE QTY 1 QTY 1...
  • Page 3 QTY 8 QTY 18 M10 LOCK NUT CHAIN QTY 8 QTY 1 (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 4 ARM & PULLEY MOUNT INSTALLATION FRONT OF MACHINE TOOLS REQUIRED: WRENCHES OR METRIC SOCKET SET ASSEMBLE THE ARM MOUNT (A) AND THE SWIVEL PULLEY MOUNT BRACKET (D) TO THE FRONT SUPPORT OF THE LAT MACHINE USING THE M12 x 75MM BOLTS (M), M12 FLAT WASHERS (V) AND M12 LOCK NUTS (Z) NOTE: THE NUTS USED ON THIS PRODUCT ARE LOCK NUTS SO YOU MUST USE A WRENCH TO TIGHTEN THE BOLT.
  • Page 5 CAM & ARM PAD ASSEMBLY INSTALL THE CAMS (E,F) ON THE ARMS (J,K), INSERTING LARGE BUSHINGS (N) ON EACH END OF THE TUBE. THERE IS A LEFT HAND AND A RIGHT HAND SIDE SO YOU WILL NEED TO LOOK AT THE DIAGRAM TO ENSURE CORRECT INSTALLATION...
  • Page 6 ARM INSTALLLATION INSERT LARGE BUSHINGS (N) INTO THE ARM MOUNT (A). NOW ASSEMBLE THE WEIGHT ARMS TO THE ARM MOUNT (A) USING THE M19 LOCKNUTS (Y)
  • Page 7 SWIVEL PULLEY ASSEMBLY ASSEMBLE THE 3 ½” PULLEY (P) INTO THE SWIVEL PULLEY BRACKET (C) USING THE M10 x 45MM BOLT (S), M10 WASHERS (W), AND M10 LOCKNUT (AA). REPEAT FOR OTHER SWIVEL PULLEY ASSEMBLY. INSTALL SMALL BUSHINGS (O) INTO EACH END OF TUBE.
  • Page 8 FIXED PULLEY ASSEMBLY INSTALL THE 3 ½” PULLEY(P) INTO THE FIXED PULLEY BRACKET (B) USING THE M10 x 45MM BOLT (S) M10 WASHERS (W), AND M10 LOCK NUT (AA). NOTE: IF INSTALLING ON DF908, USE 4-1/2” PULLEY FIXED PULLEY & BACKREST INSTALLATION ASSEMBLE THE BACKREST PAD (I) TO THE FRONT SUPPORT OF THE LAT MACHINE USING THE M10 x 70 BOLTS...
  • Page 9 FLOATING PULLEY ASSEMBLY ASSEMBLE THE 3 ½” PULLEY (P) TO THE FLOATING PULLEY BRACKET (G) USING THE M10 x 45MM BOLT (S), M10 WASHERS (W) AND M10 NUT (AA).
  • Page 10 PEC ATTACHMENT CABLE INSTALLATION SWIVEL PULLEY ASSEMBLIES FIGURE A FLOATING PULLEY ASSEMBLY ATTACH THE PEC CABLE TO THE CAM ON THE LEFT SIDE USING THE M10 x 25MM BOLT (W), M10 WASHERS (W) , AND M10 LOCKNUT (AA). (SEE FIGURE A) NOTE: THERE ARE ADJUSTMENT HOLES ON EACH CAM TO COMPENSATE FOR CABLE STRETCH AFTER THE MACHINE IS USED FOR A WHILE.
  • Page 11 INSTRUCTIONS FOR INSTALLING ON DF838– STACK LOADED LAT ATTACHMENT REMOVE THE THE 4-1/2” PULLEY FROM THE CENTER FLANGES OF THE BOTTOM SUPPORT AND REPLACE WITH 3-1/2” PULLEY.
  • Page 12 DF838 FLOATING PULLEY ASSEMBLY REMOVE THE 4-1/2” PULLEYS FROM THE FLOATING PULLEY ASSEMBLY AND REPLACE WITH 3-1/2” PULLEYS, MAKING SURE TO INSTALL THE LOWER BOLT IN THE HOLE SPECIFIED IN THE DIAGRAM ABOVE.
  • Page 13 DF838 LOWER CABLE INSTALLATION RE-ATTACH LOWER CABLE HERE USING SNAP HOOKS AND CHAIN DISCONNECT LOWER CABLE FROM HERE DISCONNECT THE END OF THE LOWER CABLE FROM THE FLANGE ON THE FRONT SUPPORT. RECONNECT IT TO THE FLOATING PULLEY ASSEMBLY ON THE PEC DEC USING THE CHAIN AND SPRING CLIPS PROVIDED.
  • Page 14 DF908 FLOATING PULLEY ASSEMBLY INSTRUCTIONS FOR INSTALLING ON DF908– STACK LOADED LAT MACHINE MAKE SURE BOTTOM PULLEY IS MOUNTED AS SHOWN IN DIAGRAM ABOVE.
  • Page 15 DF908 LOWER CABLE INSTALLATION RE-ATTACH LOWER CABLE HERE DISCONNECT LOWER CABLE FROM HERE DISCONNECT THE END OF THE LOWER CABLE FROM THE FLANGE ON THE FRONT SUPPORT. RECONNECT IT TO THE FLOATING PULLEY ASSEMBLY ON THE PEC DEC WITH SPRING CLIP.
  • Page 16 DF830 FLOATING PULLEY ASSEMBLY INSTRUCTIONS FOR INSTALLING ON DF830– LAT ATTACHMENT MAKE SURE BOTTOM PULLEY IS MOUNTED AS SHOWN IN DIAGRAM ABOVE.
  • Page 17 DF830 LOWER CABLE INSTALLATION RE-ATTACH LOWER CABLE HERE USING SPRING CLIPS AND CHAIN DISCONNECT LOWER CABLE FROM HERE DISCONNECT THE END OF THE LOWER CABLE FROM THE FLANGE ON THE FRONT SUPPORT. RECONNECT IT TO THE FLOATING PULLEY ASSEMBLY ON THE PEC DEC USING THE CHAIN AND SPRING CLIPS PROVIDED.
  • Page 18 DF910 FLOATING PULLEY ASSEMBLY INSTRUCTIONS FOR INSTALLING ON DF910– LAT MACHINE MAKE SURE BOTTOM PULLEY IS MOUNTED AS SHOWN IN DIAGRAM ABOVE.
  • Page 19 DF910 LOWER CABLE INSTALLATION MOVE CHAIN FROM LOWER RE-ATTACH LOWER CABLE TO HERE CABLE HERE USING SPRING CLIPS DISCONNECT LOWER CABLE FROM HERE DISCONNECT THE END OF THE LOWER CABLE FROM THE FLANGE ON THE FRONT SUPPORT AND REMOVE CHAIN. RECONNECT IT TO THE FLOATING PULLEY ASSEMBLY ON THE PEC DEC USING SPRING CLIP.

  • Page 20: Safety Notice

    SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
