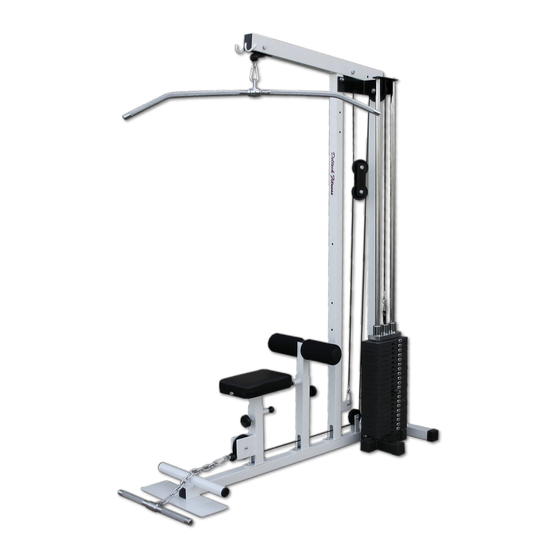

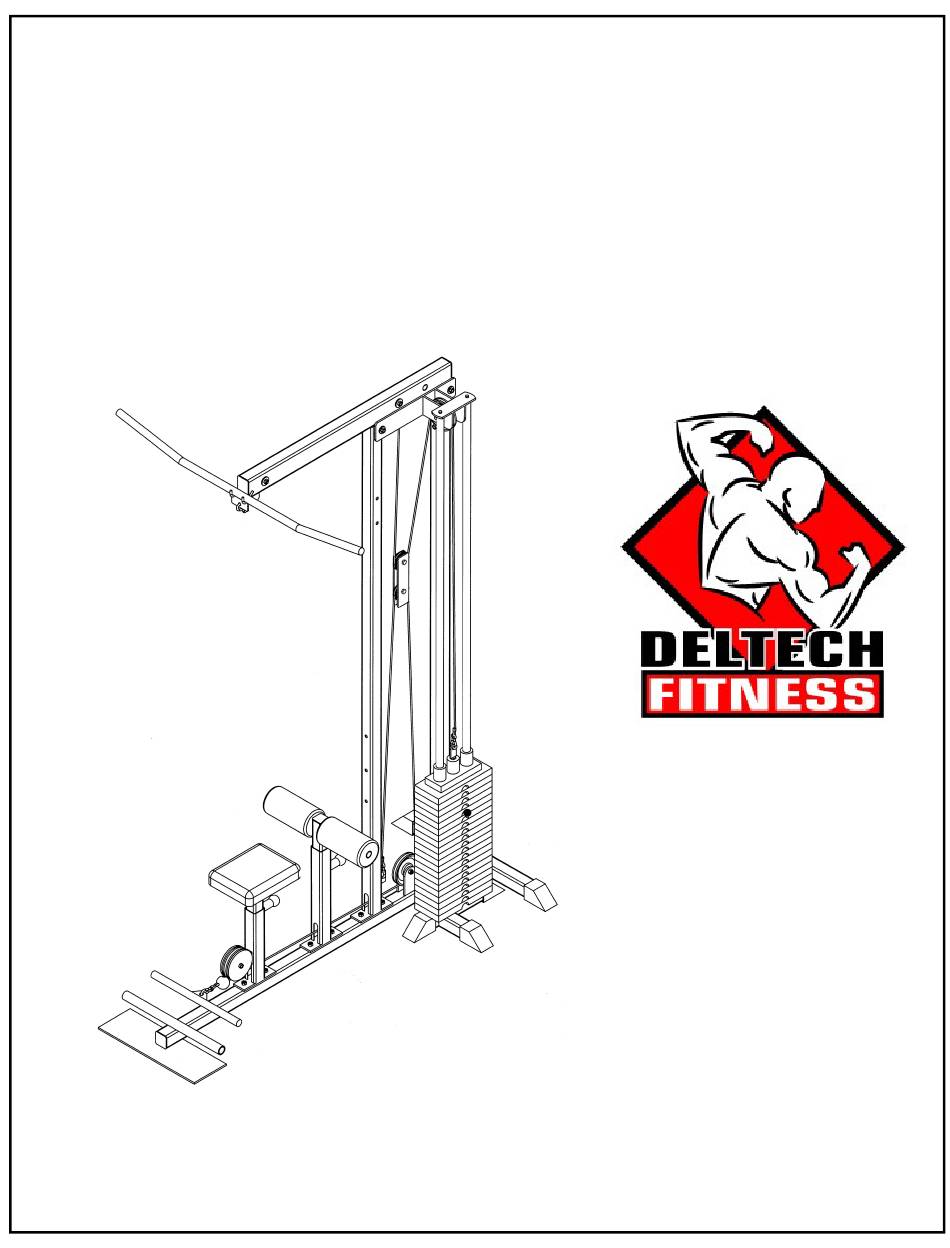

DF908
LAT PULLDOWN MACHINE
WITH 200 LB WEIGHT STACK
Assembly Manual
The DF908 consists of the DF910 Lat
Machine andthe DF935 Stack Kit
(888) 258-0533
FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY
*NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533

Advertisement

loading
Need help?

Need help?

Do you have a question about the DF908 and is the answer not in the manual?

Questions and answers

Related Manuals for Deltech Fitness DF908

Summary of Contents for Deltech Fitness DF908

  • Page 1 The DF908 consists of the DF910 Lat Machine andthe DF935 Stack Kit (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 2 QTY 1 FOOT PLATE QTY 1 LAT CABLE REVOLVING CHROME FOOT REST QTY 2 ROW BAR QTY 1 QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 3 QTY 1 TUBE QTY 1 FLANGE BOTTOM PULLEY ROLLER PAD REAR CROSSMEMBER QTY 2 FRAME QTY 2 QTY 1 QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 4 CARRIAGE BOLT FLAT HEAD BOLT QTY 2 QTY 9 QTY 3 (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 5 LAT MACHINE HARDWARE M12 LOCKNUT M10 LOCKNUT M10 WASHER M12 WASHER QTY 4 QTY 19 QTY 20 QTY 8...
  • Page 6 QTY 1 FRAME RODS QTY 1 QTY 1 QTY 2 WEIGHT STACK SELECTOR ROD TOP PLATE QTY 1 QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 7 QTY 1 QTY 2 QTY 1 WEIGHT STACK BOLT QTY 1 (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 8 QTY 1 QTY 2 QTY 1 WEIGHT STACK BOLT QTY 1 (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 9 ROTATE THE ASSEMBLY TO THE UPRIGHT POSITION AND SLIDE THE REAR CROSSMEMBER (N) INTO PLACE AND INSTALL TO THE BOTTOM FRAME USING THE M12 x 70MM BOLTS (AA), M12 WASHERS (HH), AND M12 LOCKNUTS (JJ). INSTALL THE RUBBER BOOTS (T) OVER THE ENDS OF THE CROSSMEMBER. ATTACH THE FOOT PLATE (C2) AND FOOT REST (C1) TO THE BOTTOM FRAME USING M10 x 70 MM FLAT HEAD BOLTS (FF), M10 WASHERS (II), AND M10 LOCK- NUTS (KK).

  • Page 10: Seat Frame Assembly

    SEAT FRAME ASSEMBLY ATTACH THE SEAT PAD (H) TO THE SEAT BRACKET (I) USING THE M10 x 20MM BOLTS (EE) AND M10 FLAT WASHERS (II). THEN SLIDE THE SEAT BRACKET (I) INTO THE SEAT SUPPORT (J). INSTALL THE 3 ½” PULLEY (V) INTO THE SEAT SUPPORT TUBE (J) USING THE M10 x 45MM BOLT (DD) , M10 WASHERS (II), AND M10 LOCK NUT (KK).
  • Page 11 BOTTOM PULLEY FRAME ASSEMBLY ASSEMBLE THE 4 ½” PULLEY (U) INTO THE BOTTOM PULLEY FRAME (R) USING THE M10 x 45MM BOLT (DD), M10 WASHERS (II), AND M10 LOCKNUT (KK).
  • Page 12 LEG HOLD DOWN ASSEMBLY SLIDE THE HOLD-DOWN TUBE (L) INTO THE HOLD-DOWN SUPPORT (M) . LOCK INTO PLACE WITH PULL-PIN. SLIDE THE ROLLER PADS (P) OVER THE LEG PAD TUBE AND INSERT THE MUSH- ROOM CAPS (S). TAP INTO PLACE WITH A RUBBER HAMMER.
  • Page 13 ASSEMBLE THE UPPER PULLEY FRAME (G) ONTO THE FRONT AND REAR SUPPORTS USING THE M12 x 65MM BOLTS(BB), AND M12 WASHERS (HH). DO NOT INSTALL WASHERS AND LOCKNUTS ON BOLTS AT THIS TIME.
  • Page 14 UPPER PULLEY ASSEMBLY INSTALL 3-1/2” PULLEY (V) INTO UPPER PULLEY FRAME (MM) USING M10 x 75MM BOLT (SS), PULLEY BUSHINGS (W), AND M10 NUT (TT). DO NOT OVER- TIGHTEN NUT.
  • Page 15 UPPER PULLEY ASSEMBLY INSTALLATION INSTALL THE UPPER PULLEY ASSEMBLY (MM) TO THE FRONT AND REAR SUPPORT USING M12 WASHERS (HH), AND M12 LOCKNUTS (JJ).
  • Page 16 WEIGHT STACK FRAME ASSEMBLY INSTALL THE RUBBER SHOES (LL) ON TO THE BOTTOM SUPPORT(LL). ATTACH THE BOTTOM SUPPORT (LL) TO THE LAT MACHINE USING THE M10 x 75MM BOLTS (SS) M10 FLAT WASHERS (TT) AND THE M10 LOCK NUTS (UU).

  • Page 17: Weight Stack Assembly

    WEIGHT STACK ASSEMBLY INSTALL THE RUBBER DOUGHNUTS (WW) ONTO THE BOTTOM OF THE WEIGHT STACK RODS (NN) , LEAVING APPROXIMATELY 2” PROTRUDING. INSERT THE WEIGHT STACK RODS INTO THE TWO OUTER HOLES IN THE BOTTOM FRAME.
  • Page 18 WEIGHT STACK ASSEMBLY LEAN WEIGHT STACK RODS OUT SLIGHTLY AND BEGIN INSTALLING WEIGHT STACK PLATES (OO), USING TWO OUTER HOLES ON EACH WEIGHT STACK PLATE. SLIDE EACH WEGIHT STACK DOWN BEFORE INSTALLING THE NEXT. THERE ARE 19 WEIGHT STACK PLATES.
  • Page 19 WEIGHT STACK ASSEMBLY LEAN WEIGHT STACK RODS OUT SLIGHTLY AND BEGIN INSTALLING WEIGHT STACK PLATES (OO), USING TWO OUTER HOLES ON EACH WEIGHT STACK PLATE. SLIDE EACH WEGIHT STACK DOWN BEFORE INSTALLING THE NEXT. THERE ARE 19 WEIGHT STACK PLATES.
  • Page 20 WEIGHT STACK ASSEMBLY INSTALL TOP WEIGHT PLATE ASSEMBLY USING TWO OUTER HOLES OVER WEIGHT STACK RODS. SLIDE DOWN AND INSERT SELECTOR ROD INTO WEIGHT PLATE STACK.
  • Page 21 WEIGHT STACK ASSEMBLY ROTATE WEIGHT STACK RODS UP TOWARDS THE UPPER PULLEY ASSEMBLY. INSTALL M10 x 25MM BOLTS (YY) INTO TOP OF WEIGHT STACK RODS.

  • Page 22: Floating Pulley Assembly

    FLOATING PULLEY ASSEMBLY ASSEMBLE THE FLOATING PULLEY ASSEMBLY USING THE 4-1/2” PULLEYS (U), THE PULLEY FLANGES (Q), THE M10 x 45MM BOLTS (DD), THE M10 FLAT WASHERS (II), AND THE M10 LOCKNUTS (KK).
  • Page 23 UPPER CABLE INSTALLATION BOTH CABLES ARE THE SAME LENGTH. STARTING WITH THE CABLE END WITHOUT THE BALL, INSERT CABLE INTO FRONT OPENING OF THE UPPER PULLEY FRAME AND FEED IT TOWARDS THE BACK. PULL CABLE END OUT THROUGH REAR OPENING.
  • Page 24 UPPER CABLE INSTALLATION INSERT 3-1/2” PULLEY INTO FRONT OPENING OF UPPER PULLEY FRAME AND INSTALL USING THE M10 x 70MM BOLT (CC), PULLEY BUSHINGS (W), AND M10 LOCKNUTS (KK). REPEAT FOR MIDDLE PULLEY.
  • Page 25 UPPER CABLE INSTALLATION UPPER PULLEY FRAME REMOVED FOR CLARITY INSTALL UPPER CABLE AROUND TOP PULLEY OF FLOATING PULLEY ASSEMBLY AND THEN OVER PULLEY ON WEIGHT STACK. CONNECT CABLE TO WEIGHT STACK BOLT WITH SNAP HOOK. CABLE LENGTH CAN BE ADJUSTED BY TIGHTENING OR LOOSENING WEIGHT STACK BOLT.
  • Page 26 LOWER CABLE INSTALLATION KEEPER BAR STARTING WITH THE CABLE END WITHOUT THE BALL, INSERT CABLE UNDER 3-1/2” PULLEY ON SEAT FRAME. MAKE SURE THAT CABLE IS BELOW PULLEY AND ABOVE KEEPER BAR ON BOTTOM OF PULLEY FRAME (SEE INSET PICTURE)
  • Page 27 LOWER CABLE INSTALLATION FEED CABLE THROUGH OPENINGS IN SEAT SUPPORT, HOLD-DOWN SUPPORT, AND FRONT SUPPORT. INSTALL CABLE AROUND 4-1/2” LOWER PULLEY, UP AND AROUND BOTTOM PULLEY OF FLOATING PULLEY ASSEMBLY AND DOWN TO MOUNTING FLANGE AT BOTTOM OF FRONT SUPPORT. ATTACH SNAP HOOK TO END OF CABLE AND ATTACH TO MOUNTING FLANGE.
  • Page 28 LAT BAR INSTALLATION ATTACH LAT BAR TO UPPER CABLE WITH SNAP HOOK. MOVE TO CRADLE WHEN NOT IN USE. LOW ROW BAR INSTALLATION ATTACH LOW ROW BAR TO LOWER CABLE WITH 2 SNAP HOOKS AND CHAIN. YOU CAN ALSO USE THIS CHAIN ON THE HIGH PULLEY TO DO TRICEP EXERCISES.
  • Page 29 WEIGHT STACK PIN INSTALLATION INSERT WEIGHT STACK PIN (VV) INTO DESIRED SETTING ON WEIGHT STACK.

  • Page 30: Safety Notice

    SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU.
