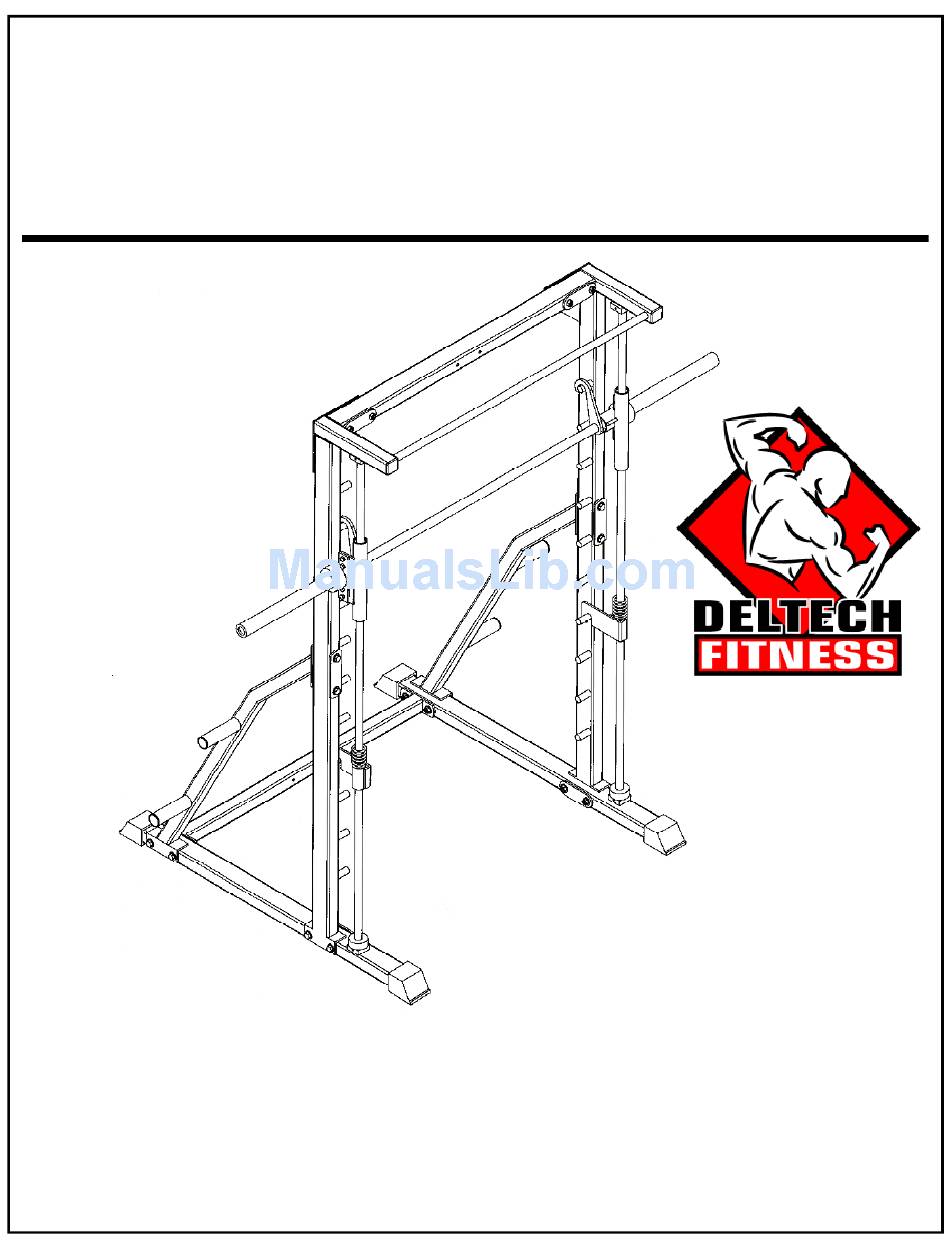

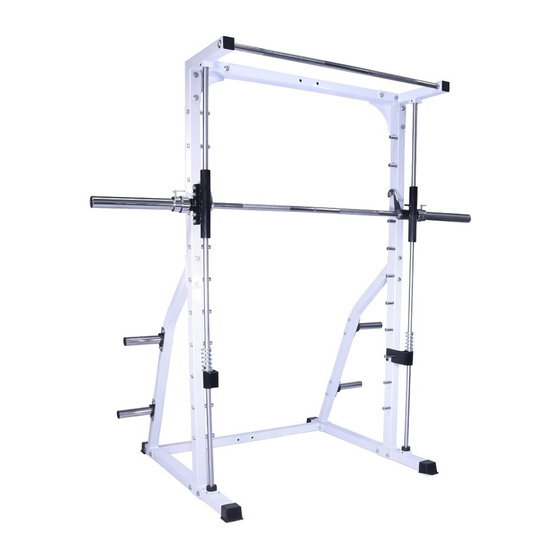

ASSEMBLY INSTRUCTIONS FOR
THE DF4900 LINEAR BEARING
SMITH MACHINE
(888) 258-0533
FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY
*NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533

Advertisement

loading
Need help?

Need help?

Do you have a question about the DF4900 and is the answer not in the manual?

Questions and answers

Related Manuals for Deltech Fitness DF4900

Summary of Contents for Deltech Fitness DF4900

  • Page 1 ASSEMBLY INSTRUCTIONS FOR THE DF4900 LINEAR BEARING SMITH MACHINE (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...

  • Page 2: Box Contents

    QTY 1 LH FOOT RH FOOT CROSSMEMBER TOP FRAME QTY 1 QTY 1 QTY 1 QTY 1 PULL-UP BAR QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 3 LH & RH GUIDE ROD COLLAR RH & LH SMITH BAR COLLAR CATCH QTY 1 EACH QTY 1 EACH QTY 1 EACH *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
  • Page 4 QTY 8 QTY 20 QTY 40 QTY 16 CHROME SPRING HEX WRENCH CORNER FLANGE QTY 2 QTY 1 QTY 2 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...

  • Page 5: Frame Assembly

    FRAME ASSEMBLY (NOTE: THE NUTS USED ON THIS PRODUCT ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT) ASSEMBLE THE LH FOOT (E), RH FOOT (F), CROSS MEMBER (G), AND THE LEFT AND RIGHT REAR SUPPORTS (C) AND (D), USING THE M12 x 90MM BOLTS (V), M12 WASHERS (X), AND M12 LOCK- NUTS (Z).
  • Page 6 SMITH BAR ASSEMBLY RIGHT SIDE ASSEMBLY HAS STOP PIN ASSEMBLE RH SMITH BAR COLLAR (M) AND GUIDE ROD COLLAR (N) USING THE M10 x 25MM BOLTS (W), M10 WASHERS (Y), AND M10 LOCKNUTS (AA). REPEAT FOR RH ASSEMBLY. SLIDE THE ASSEMBLY ONTO THE SMITH BAR (J). REPEAT FOR RH ASSEMBLY.
  • Page 7 GUIDE BAR INSTALLATION INSERT THE GUIDE RODS (K) INTO THE RETAINERS AT THE BOTTOM. SLIDE THE RUBBER DONUTS (S) ONTO THE GUIDE RODS AND MOVE TO THE BOTTOM. INSTALL THE RH AND LH SAFETY CATCHES (O) AND HOOK ONTO ONE OF THE CATCH PINS TO SUPPORT THE GUIDE RODS. SLIDE THE CHROME SPRINGS (BB) ONTO THE GUIDE RODS (K).
  • Page 8 SMITH BAR ASSEMBLY INSTALL WEIGHT SLEEVE (L) WITH WEIGHT SLEEVE BOLT (U) ONTO SMITH BAR (J) AND TIGHTEN WITH SUPPLIED HEX WRENCH. REPEAT FOR OPPOSITE SIDE. TOP FRAME INSTALLATION INSTALL THE TOP FRAME (H) ONTO THE UPRIGHTS AND GUIDE RODS.
  • Page 9 TOP FRAME INSTALLATION ATTACH THE TOP FRAME TO THE UPRIGHTS USING THE M12 x 90MM BOLTS (V), M12 WASHERS (X), CORNER FLANGES (DD), AND M12 LOCKNUTS (Z). REPEAT FOR OPPOSITE SIDE. TOP FRAME INSTALLATION ATTACH THE PULL-UP BAR (I) TO THE TOP FRAME USING THE PULL-UP BAR BOLTS (T), AND M12 WASHERS (X).
  • Page 10 GUIDE BAR ADJUSTMENT THE GUIDE BAR RETAINERS ARE SLOTTED TO ALLOW FOR ADJUSTMENT. USING THE SUPPLIED HEX WRENCH, TIGHTEN THE SET SCREWS ON BOTH SIDES OF THE BOTTOM RETAINER. HOLD A LEVEL AGAINST THE GUIDE ROD TO ENSURE IT IS LEVEL. IF NECESSARY ADJUST THE SET SCREWS ON THE UPPER RETAINER.

  • Page 11: Use Instructions

    USE INSTRUCTIONS 1) SET THE SPOTTERS (9) TO THE DESIRED HEIGHT FOR A SAFE WORK OUT. 2) RAISE THE BAR AND ROTATE IT OUT UNTIL THE HOOK CLEARS THE PEGS. 3) DO EXERCISES AS DESIRED. 4) WHEN FINISHED WITH THE SET, ROTATE THE BAR BACK AND SET ON PEGS. MAKE SURE THE BAR IS SECURE BEFORE LETTING GO.
