INSTALL THE REAR SUPPORT TUBE (G) TO THE BOTTOM SUPPORT (B) ALIGNING HOLES
IN FLANGE WITH PIN AND THREADED STUD. INSTALL 12MM WASHER (U) AND 12MM
NUT (S) AND TIGHTEN.
INSTALL THE FRONT SUPPORT TUBE (H) TO THE BOTTOM SUPPORT (B) ALIGNING HOLES
IN FLANGE WITH PIN AND THREADED STUD. INSTALL 12MM WASHER (U) AND 12MM
NUT (S) AND TIGHTEN.
G
S
U
B
H

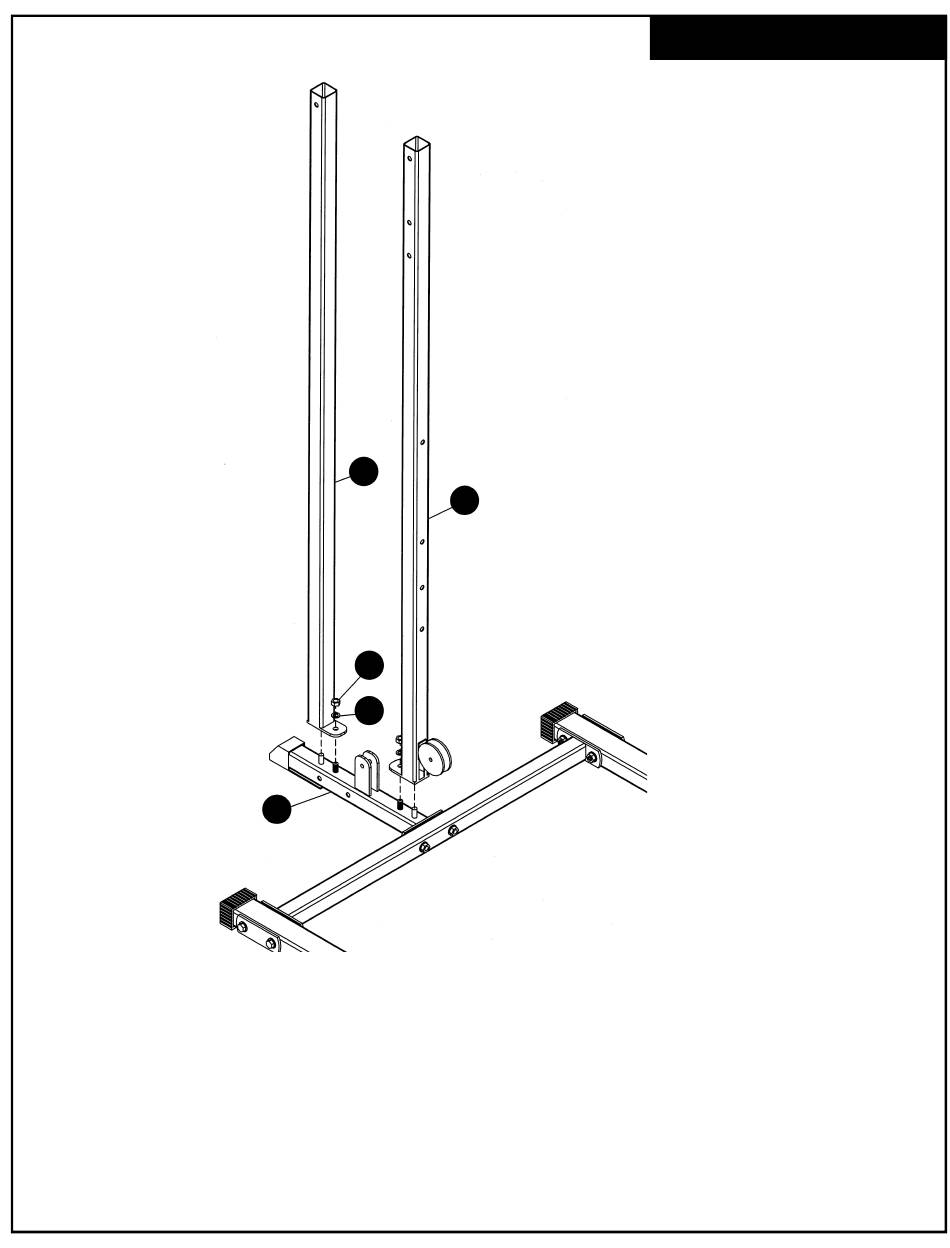

FRAME ASSEMBLY
