Connectors

Connectors
This section describes connector functionality and provides information
about mating connectors. The connector locations are shown in
Figure 2-5.

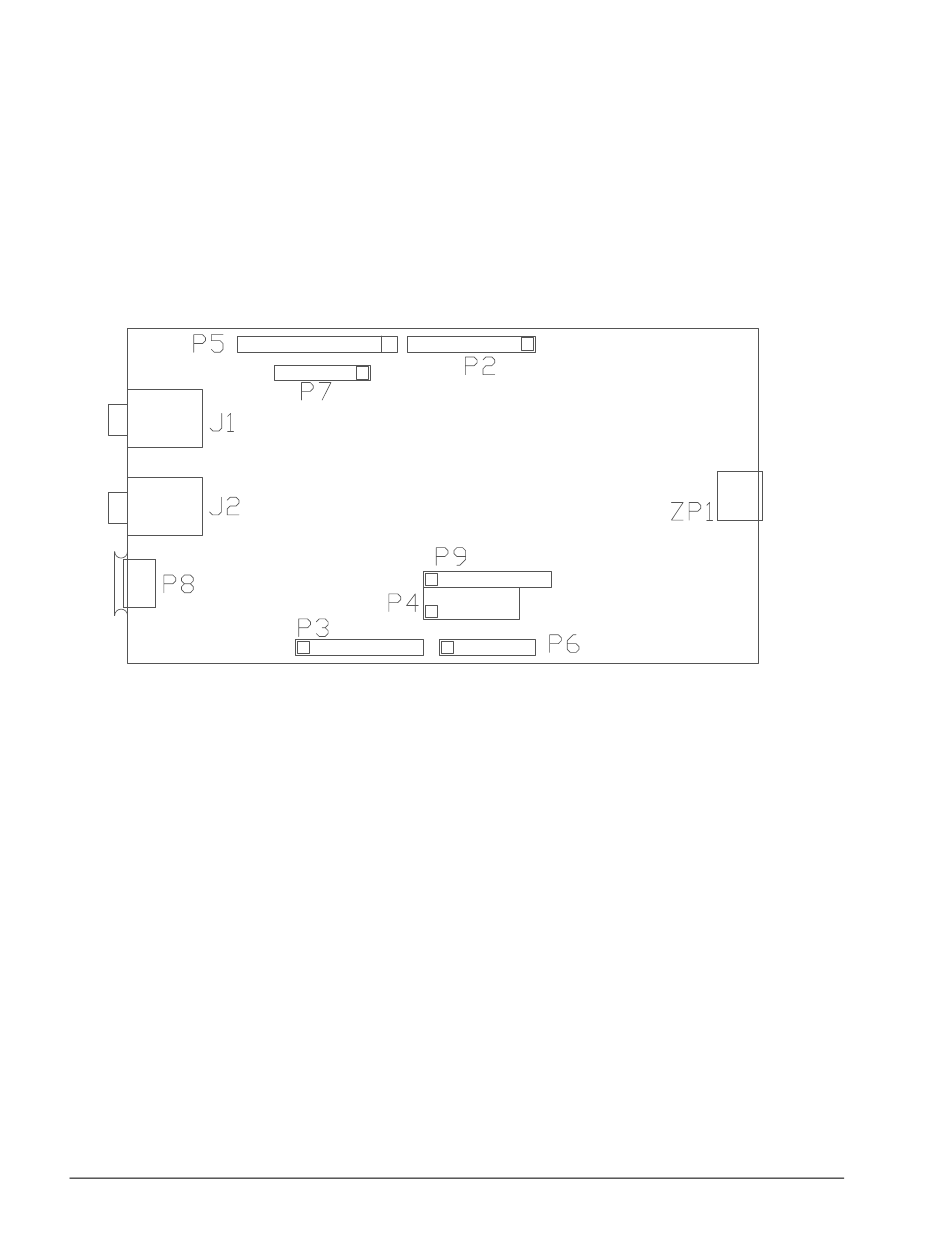

Figure 2-5. Connector Locations
Connectors
P2
boards. Not installed by default, these connectors are 0.1" stackable head-
ers that are available online.
Connectors
P1
nals that are not installed by default. See
Schematic for more details.
2-8
, , , and allow interfacing with Arduino Uno Rev 3.0
P3 P5 P6
, , and are external connection points to processor sig-
P4 P9
