Adjustments

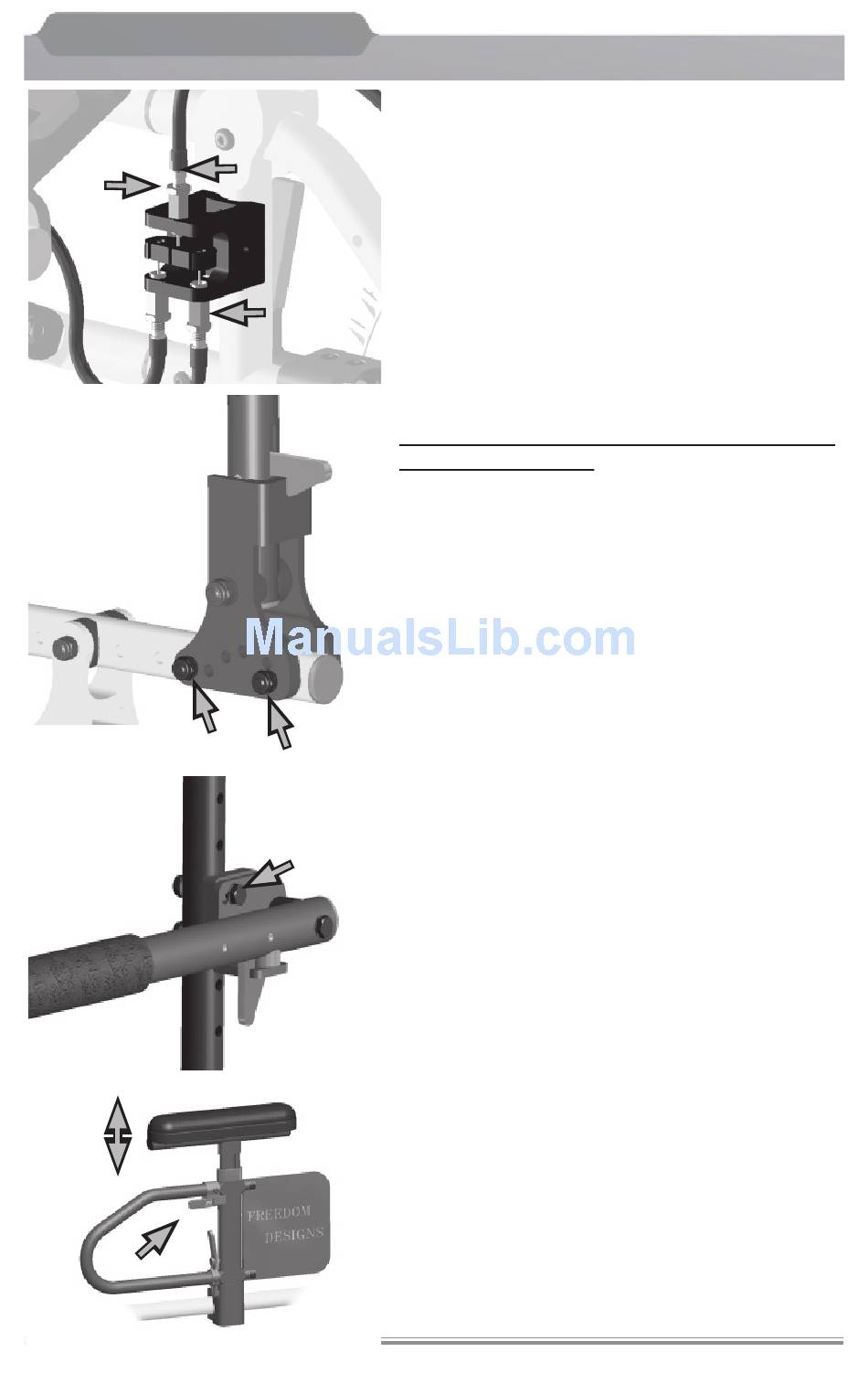

Tilt Cable Adjustment

At least one end of each cable will have a
Threaded End
Jam Nut
threaded end fi tting, adjust nut & jam nut.
Fitting
If the seat tilt locks do not release when the foot
pedal or hand lever is depressed, loosen the
jam nut and adjust the threaded end fi tting out-
ward (turn adjust nut counterclockwise). If the
lock does no hold properly adjust the threaded
Adjust Nut
end fi tting inward (turn large nut clockwise).
Re-tighten the jam nut securely.
Note:
Seat lock cables should be adjusted by a
qualified technician.
Backpost Adjustment
The angle and depth of the backposts may be
adjusted by repositioning the backpost pivot
plate in the pre-drilled holes on the frame.
Flip Arm / Locking Arm
To adjust height of armrests, loosen and remove
the bolts and nuts holding the arm to the backpost
tube. Align holes in arm with holes in backpost
tube at desired height. Re-assemble with bolts
and nuts.
"T" Arm
To adjust the height of the "T" arm, rotate lever
outward. Lift or lower arm pad to desired height
and rotate lever back to forward position to lock
in place.
30
