Summary of Contents for Atmos i View COLPO

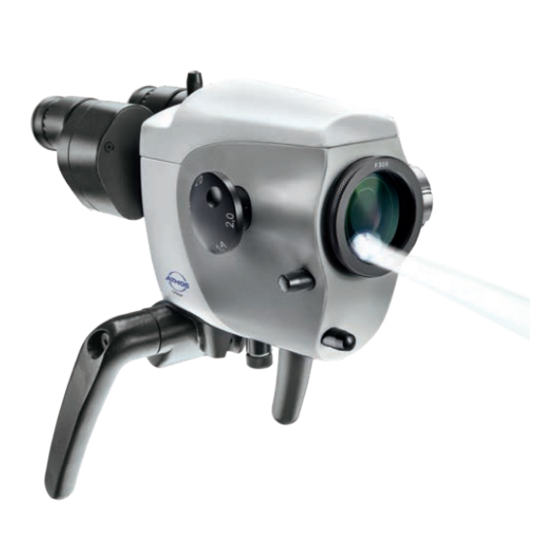

- Page 1 English ATMOS i View COLPO GA1GB.420101.0 2021-11 Index 26...
-
Page 2: Table Of Contents
Colposcope zoom and object field size....19 3.2.5 Rear view of the control device of the 4.15 Measuring scale ..........19 ATMOS i View 31 COLPO (not with an 4.16 Image and video recording .........20 integrated HD camera)........11 4.16.1 Adjusting the light mode of the integrated 3.2.6... -
Page 3: Introduction
These operating instructions serve not only for new operating personnel to be instructed in its use, but also for use as a reference manual. Reprints (also in extracts) only with permission in written form by ATMOS. These operating instructions must always be kept available near the colposcope. -
Page 4: Intended Use
1.0 Introduction 1.2 Intended use Product name: ATMOS i View 21 COLPO ATMOS i View 31 COLPO Main functions: The device is a colposcope intended to give a magnified illuminated spa- cial view on human tissue for diagnostic and treatment purposes. -
Page 5: Function
LED light source on and off despite the activated automatic light control. Due to the variety of options the ATMOS i View COLPO has to offer, the user is in a position to configure a colposcope to suit his requirements. -
Page 6: Explanation Of Pictures And Symbols
Replace ● Numeration Engage, check correct fit click Warning, pay special attention Important information Symbols ATMOS i View COLPO Serial number Reference number Date of manufacture Manufacturer Consult operating instructions Follow operating instructions Weight adjustment for the carrier arm... -
Page 7: Scope Of Supply
Record Freeze PC/USB Microscope • Prior to dispatch, the ATMOS i View COLPO was subjected to an extensive functional test and was carefully packed. Nevertheless, please compare the contents of the shipment on completeness immediately upon receipt (see delivery note). -
Page 8: For Your Safety
Devices.” the control device! • ATMOS is not liable for personal injury and damage to • The ATMOS i View COLPO is a device designed in line with property if IEC 60601-1/EN 60601-1 and is a protection class I device. -
Page 9: Setting Up And Starting Up
3.0 Setting up and starting up 3.1 Overview ATMOS i View 21 COLPO ATMOS i View 31 COLPO Examination colposcope with an integrat- Examination colposcope with an integrat- Description ed, fanless, high-transmission, high-perfor- ed, fanless, high-transmission, high-perfor- mance LED light in the colposcope head... -
Page 10: Assembly
Potential equalization: The ATMOS i View COLPO’s supply module has a rear connection for potential equalization which can be connected to the poten- tial equalization rail in the room if need be. Hereby, user/patient safety can be increased especially in the case of a defective earth conductor. -
Page 11: Operating Elements On The Colposcope
Maßstab (scale) Konstr. - Nr:Mikolp-200-001. all dimensions in mm 3.2.5 Rear view of the control device of the ATMOS i View 31 COLPO (not with an integrated HD camera) Allgemeintoleranzen / Werkstoff (material) General tolerances DIN ISO 2768 - mK über 30 mm ±0,3... -
Page 12: Rear View Of The Control Device Of The Atmos I View 31 Colpo With An Integrated Hd Camera
3.0 Setting up and starting up 3.2.6 Rear view of the control device of the ATMOS i View 31 COLPO with an integrated HD camera HD video input. Can HD video input from HD video outlet from the vid- Connection to the foot... -
Page 13: Starting Up
• Take into consideration when setting up the colposcope that the elastic force of the arm – without colposcope head – is exceedingly strong. Operate the brake of the height adjustment carefully. • To activate the ATMOS i View COLPO, please press the on/off switch on the front side of the control device. 3.5 Operating requirements Please note that the following requirements must be adhered to for further operation after installing the device: •... -
Page 14: Starting Up At A Glance
3.0 Setting up and starting up 3.6 Starting up at a glance Adjust colposcope to initial position on the colposcope suspension by use of the fixing wheel. Adjust colposcope horizontally and vertically. Adjust all the clamps on the carrier and float arm to secure the movability of the arm in compliance with the require- ments. -
Page 15: Operation
Automatic light switching: Once the arm is in the lower position, the LED light of the colposcope switches off auto- matically. Adjusting screws 4.3 Hand grips When purchasing the ATMOS i View COLPO, you may choose between two versions of handles. 4.3.1 T-hand grip (see figure) 4.3.2... -
Page 16: Adjusting The Interocular Distance
4.0 Operation 4.4 Adjusting the interocular distance The interocular distance is adjustable between 50 and 75 • Swivel the colposcope into the work space. • Look through the eye lenses and push or pull the eye lens tubes together or apart with both hands. The interocular distance is perfectly adjusted when you look through with both eyes and a circular field is visible. -
Page 17: Exchanging The Lenses
Setting dial Grub screw 4.9 Adjusting the 5-fold magnification changer The 5-fold magnification changer from ATMOS enables free range zoom between 0.5x up to 2.0x. • Select the desired zoom factor by selecting one of the lateral rotary knobs. • Pay attention that the chosen zoom factor engages audibly with the groove. -
Page 18: Focusing
4.0 Operation 4.10 Focusing • Adjust the zoom to maximum (2.0) on the magnification unit. • Approach the object with the colposcope until the image is sharp. • If the zoom level is changed, the pre-adjusted degree of sharpness is still maintained. 4.10.1 Fine focusing The optional fine focusing allows for sensitive and precise focusing in a 17 mm range. -
Page 19: Pivoting H.a.s.i. Filter
4.0 Operation 4.12 Pivoting H.A.S.I. filter The pivoting H.A.S.I. filter gives a more contrasting and clearer view of the mucosa. • Turn the function knob by 90° in clockwise direction to swing in the filter. • By turning the knob by 90° in counterclockwise direc- Pivoting H.A.S.I. -
Page 20: Image And Video Recording
4.16 Image and video recording Integrated camera: If desired, an HD camera can be inte- grated in the ATMOS i View 31 COLPO. External video recorder: External video recorders can be controlled via the panel buttons if they are connected to the jack plugs “Freeze”... -
Page 21: Endoscope Adapter
Via the specially developed HD adapter, it is possible to connect a SONY digital camera with e-mount bayonet to the ATMOS i View COLPO. This camera enables you to take and archive HD resolution pictures. At dispatch, the HD adapter is covered with a cover cap. -
Page 22: Cleaning And Care
Residues can be removed with a mixture made from equal parts of ethyl alcohol and distilled water to which a drop of standard washing-up liquid is added. If fluids have penetrated the ATMOS i View COLPO, it needs to be sent in and may only be used after being checked by a person authorized by ATMOS. -
Page 23: Fogging Of Optical Surfaces
Note: Anti-fogging agents provided by eyecare professionals for use with eyeglass lenses are also suitable for the ATMOS i View COLPO’s optics. • Please observe the instructions supplied with each anti-fogging agent. Anti-fogging agents do not only ensure fog-free optics, they also clean and protect them against dirt, grease, dust, fluff, and finger- prints. -
Page 24: Maintenance And Service
• Place any used accessories with the product. devices and original spare parts. • Fill in form QD 434 “Delivery complaint / return shipment” ATMOS recommends: Work should be carried out by an au- and the respective decontamination certificate. thorized ATMOS service partner. This ensures that repairs... -
Page 25: Troubleshooting
Switch off and let cool down for 2-3 hours ATMOS i View COLPO is over- Please contact ATMOS Service heated ATMOS i View is switched off Switch on AMTOS i View COLPO at the connec- No function whatsoever tion box 5-fold magnification changer is Contact ATMOS Service... -
Page 26: Options And Accessories
Binocular straight tube 16-times, f = 160 mm 605.2000.0 45° adaption (binocular tubes) 606.1106.0 Cable (only for the ATMOS i View 31) Cable HDMI type A/C, L = 5 m (only with an integrated HD cam- 538.1902.0 era) Cable HDMI extension, L = 5 m (only with an integrated HD 008.0909.0... -
Page 27: Technical Data
CE mark Ident-Nr. (REF) 538.0000.0 ATMOS i View 21 539.0000.0 ATMOS i View 31 538.9000.0 ATMOS i View 21 PRO 539.9000.0 ATMOS i View 31 PRO 605.0000.0 ATMOS i View 21 COLPO 606.0000.0 ATMOS i View 31 COLPO Status of the Technical Data: 11.11.2020... -
Page 28: Disposal
Appliances Register), this type of device is excluded from ElektroG regulations. In order to guarantee proper disposal of your old device, please either pass on your old device to your specialized dealer or send it directly to ATMOS MedizinTechnik for profession- al disposal. -
Page 29: Notes On Emc
HF-shielded room of a magnetic resonance imaging system. The customer or user of the ATMOS i View COLPO must ensure that the device is used in a prescribed environment. Guidance and manufacturer’s declaration – key features ) Please note the Technical Data in these instructions. -
Page 30: Notes
12.0 Notes... - Page 31 12.0 Notes...
- Page 32 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Str. 16 79853 Lenzkirch / Germany Phone: +49 7653 689-0 info@atmosmed.com www.atmosmed.com...
