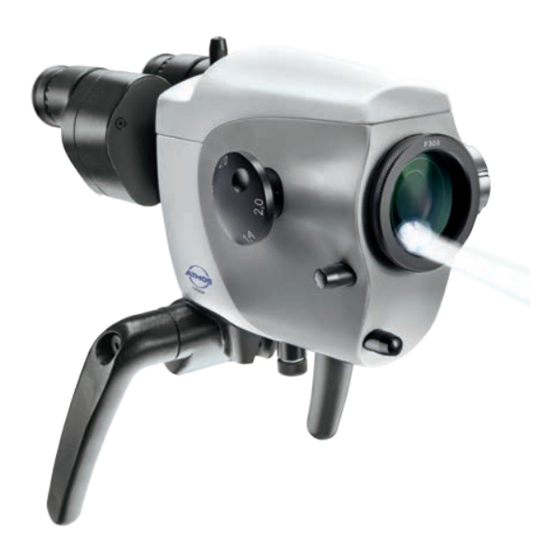

Atmos i View 21 COLPO Operating Instructions Manual

Hide thumbs Also See for i View 21 COLPO:
Table of Contents

Advertisement

Quick Links

Download this manual
English
GA1GB.420101.0
2018-04 Index 24
ATMOS
COLPO
i View
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i View 21 COLPO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atmos i View 21 COLPO

Summary of Contents for Atmos i View 21 COLPO

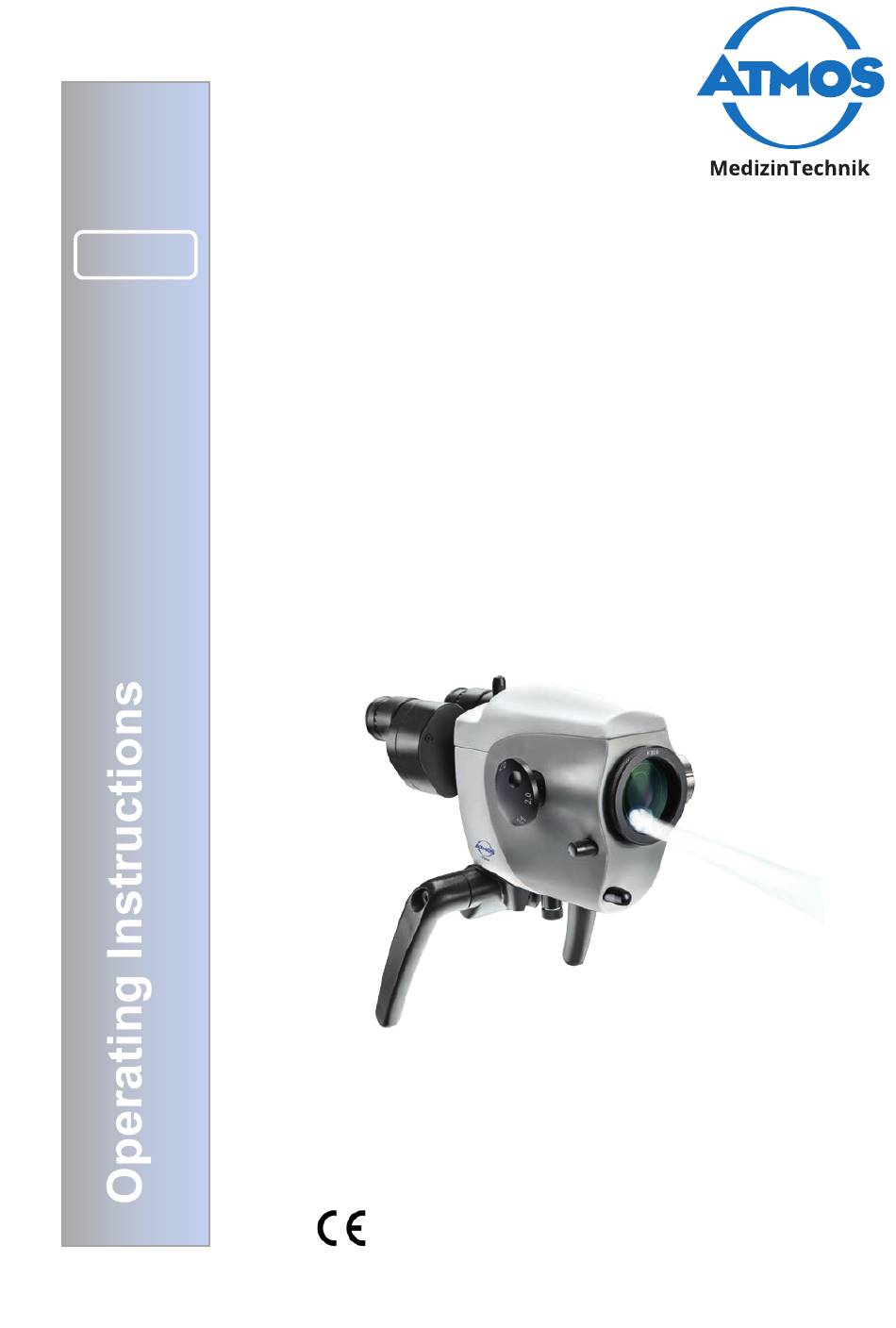

  • Page 1 English ATMOS i View ® COLPO GA1GB.420101.0 2018-04 Index 24...

  • Page 2: Table Of Contents

    (not with an integrated HD camera) ....11 4.17 Image and video recording .........20 3.2.6 Rear view of the control device of the ATMOS ® 4.17.1 Adjusting the light mode of the integrated HD View 31 COLPO with an integrated HD camera .12 camera ..............20...

  • Page 3: Introduction

    These operating instructions serve not only for new operating personnel to be instructed in its use, but also for use as a reference manual. Reprints (also in extracts) only with permission in written form by ATMOS. These operating instructions must always be kept available near the colposcope.

  • Page 4: Intended Use

    1.0 Introduction 1.2 Intended use Name: ATMOS i View 21 COLPO ® ATMOS i View 31 COLPO ® Main functions: Visualization of natural body orifices (genital area) for examinatory purposes Medical indications / Standard gynaecological examinations. Visual control of the genital area.

  • Page 5: Function

    ATMOS i View COLPO is a guarantor for best image quality. ® In connection with the mechanical support arm and the numerous connection possibilities to units and stands the ATMOS i View ® COLPO offers countless system possibilities, which can be individually adapted to suit the users environment! These operating instructions describe all functions with a maximum configuration of the ATMOS i View 31 COLPO.

  • Page 6: Explanation Of Pictures And Symbols

    Aufkleber Verbotszeichen 19.02.2013 C.Reinhardt Bearb. + Warnhinweis Gepr. Zeichnungs / Blatt ATMOS Medizin T echnik GmbH & Co. KG 060.0618.0 (sheet) Ludwig - Kegel - Str. 12, 14-16, 18 Artikel-Nr. 79853 Lenzkirch / Germany (part no.) Tel: +49 7653 689 -0 Fax: +49 7653 689 -190 Zust.

  • Page 7: Scope Of Supply

    +10...+35 °C; If damage occurs during transport: 30...95 % humidity without condensing • Document and report the transport damage. air pressure 700...1060 hPa • Send the device to ATMOS (Chapter „6.2 Sending in the device“ on page 24).

  • Page 8: For Your Safety

    IEC 60601-1-1/EN60601-1 and it is a device with Devices“. protection class I. In order to avoid the risk of electrical • ATMOS is not liable for personal injury and damage to shock, this unit may only be connected to a mains supply property if with properly installed earth conductor.

  • Page 9: Setting Up And Starting Up

    3.0 Setting up and starting up 3.1 Overview ATMOS i View 21 COLPO ATMOS i View 31 COLPO ® ® Examination colposcope with an inte- Examination colposcope with an inte- grated, fanless, high transmission, high grated, fanless, high transmission, high...

  • Page 10: Setting Up

    3.2 Assembly Please make sure that the static conditions stated by ATMOS MedizinTechnik are met (for details see the separately enclosed document „Static requirements for installing the ATMOS i View“). The fulfilment of these requirements must be confirmed by an authorized expert.

  • Page 11: Operating Elements At The Colposcope

    (start / stop) HD camera: Adjusting the light mode of the camera 3.2.4 Rear view of the control device of the ATMOS i View 21 COLPO ® Output of the power supply Connection for potential IEC power plug with fuse inlay for the electronics in the equalization performance acc.

  • Page 12: View 31 Colpo With An Integrated Hd Camera

    3.0 Setting up and starting up 3.2.6 Rear view of the control device of the ATMOS i View 31 COLPO with an integrated HD camera ® HD video input. Can HD video input from HD video outlet from the Connection to the foot...

  • Page 13: Starting Up

    • Take into consideration, when setting up the colposcope, that the elastic force of the arm – without colposcope head – is exceedingly strong. Operate the break of the height adjustment carefully. • To activate the ATMOS i View COLPO please use the power switch on the front side of the control device.

  • Page 14: Starting Up At A Glance

    3.0 Setting up and starting up 3.6 Starting up at a glance Adjust colposcope to initial position on the colposcope suspension by use of the fixing wheel. Adjust colposcope horizontally and vertically. Adjust all the clamps on the carrier and float arm to secure the movability of the arm in compliance with the requirements.

  • Page 15: Operation

    Automatic light switching: Once the arm is in the lower position the LED light switches off automatically. Adjusting screws 4.3 Hand grips When purchasing the ATMOS i View COLPO you may ® choose between two versions of handles. 4.3.1...

  • Page 16: Adjusting The Interocular Distance

    4.0 Operation 4.4 Adjusting the interocular distance The interocular distance is adjustable between 50-75 mm. • Swivel the colposcope into the work space. • Look through the eye lenses and push or pull the eye lens tubes together or apart with both hands. The interocular distance is perfectly adjusted when you look through with both eyes and a circular field is visible! 4.5 Adjusting the eye pieces...

  • Page 17: Exchanging The Lenses

    Tighten the three grub screws. Grub screw 4.9 Adjusting the 5-fold magnification changer The 5-fold magnification changer from ATMOS enables free range zoom between 0.5x up to 2.0x. • Select the desired zoom factor by selecting one of the lateral rotating knobs.

  • Page 18: Focussing

    4.0 Operation 4.10 Focussing • Adjust the zoom to maximum (2.0) on the magnification unit. • Approach the object with the colposcope until the image is sharp. • If the zoom level is changed the pre-adjusted degree of sharpness is still maintained. 4.10.1 Fine-focussing The optional fine focussing allows for sensitive and precise focussing in a 17 mm range.

  • Page 19: Pivoting H.a.s.i. Filter

    4.0 Operation 4.13 Pivoting H.A.S.I. filter The pivoting H.A.S.I. filter gives a more contrasting and clearer view of the mucosa. • Turn the function knob by 90° in clockwise direction to swing in the filter. • By turning the knob by 90° in an anti-clockwise Pivoting H.A.S.I.

  • Page 20: Image And Video Recording

    Benennung (designation) Tasterfolie Erstellt 27.03.3013 C.Reinhardt Bearb. Gepr. Zeichnungs / Blatt ATMOS Medizin T echnik GmbH & Co. KG 060.0621.0 Ludwig - Kegel - Str. 12, 14-16, 18 (sheet) Artikel-Nr. 79853 Lenzkirch / Germany (part no.) Tel: +49 7653 689 -0...

  • Page 21: Endoscope Adapter

    ATMOS Cam or other external endoscope or digital camera (third party products). The ATMOS Cam can be easily and swiftly attached to the endoscope adapter by means of a special clip seal. Other endoscope cameras which provide a standardised connection interface can also be adapted without any trouble.

  • Page 22: Cleaning And Care

    Residues can be removed with a mixture made from equal parts of ethyl alcohol and distilled water to which a drop of standard washing-up liquid is added. If fluids penetrated the ATMOS i View COLPO it needs to be sent in and may only be used after the check up of an ATMOS ® authorised person.

  • Page 23: Fogging Of Optical Surfaces

    To prevent the eyepiece optics from fogging, we recommend using an anti-fogging agent. Note: Anti-fogging agents provided by eyecare professionals for use with eyeglass lenses are also suitable for ATMOS optics. • Please observe the instructions supplied with each anti-fogging agent.

  • Page 24: Maintenance And Service

    - the advice for use in these operating instructions is not • Affix the envelope to the outside of the package. being observed, • Send the product to ATMOS or to your dealer. - assembly, new settings, alterations, extensions and repairs have not been executed by ATMOS authorised personnel.

  • Page 25: Troubleshooting

    View COLPO is hot ® Switch off and let cool down for 2-3 hours ATMOS i View COLPO is ® Please contact the ATMOS service. overheated ATMOS i View is switched off Switch on the ATMOS i View COLPO at the ®...

  • Page 26: Accessories And Options

    Lens tube Binocular straight tube 16-times, f = 160 mm 605.2000.0 45° adaption for binocular tubes 606.1106.0 Cable (only for the ATMOS i View 31) ® Video cable S-video, 5 m (not with an integrated HD camera) 008.0882.0 Cable HDMI type A/C, L = 5 m (only with an integrated HD 538.1902.0...

  • Page 27: Technical Data

    9.0 Technical data Voltage 100-240 V~ ± 10 %; 50/60 Hz Power consumption max. 45 VA Fuses 2 x T 3.15 A / 250 V Operation time Continuous operation Light intensity F 200 min. 120 kLux F 250 min. 80 kLux F 300 min.

  • Page 28: Disposal

    Register) is this type of device excluded from the ElektroG regulations. In order to guarantee a proper disposal of your old device, please either pass on your old device to your specialised dealer or send it directly to ATMOS MedizinTechnik for a professional disposal.

  • Page 29: Notes On Emc

    • The use of other accessories, other converters and cables than stated may lead to an increased emission or a reduced interference immunity of the equipment or system. 11.1 Guidelines and Manufacturer's Declaration - Emissions The ATMOS i View COLPO is intended for use in the electromagnetic environment specified below. The customer or user of the ®...
  • Page 30 Electromagnetic Environment - Guidance Level V1 = 3 V Portable and mobile communications equipment should Conducted RF IEC be separated from the ATMOS i View COLPO incl. the ® 61000-4-6 150 kHz to 80 MHz cables by no less than the distances calculated/listed...
  • Page 31 If the measured field strength at the location where the ATMOS i View COLPO is used exceeds the above compliance level, the ATMOS i View COLPO is to be ®...

  • Page 32: Medizintechnik Gmbh & Co. Kg Ludwig-Kegel-Straße

    ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Straße 16 79853 Lenzkirch / Germany Phone: +49 7653 689-0 atmos@atmosmed.de www.atmosmed.com...

This manual is also suitable for:

I view 31 colpo
