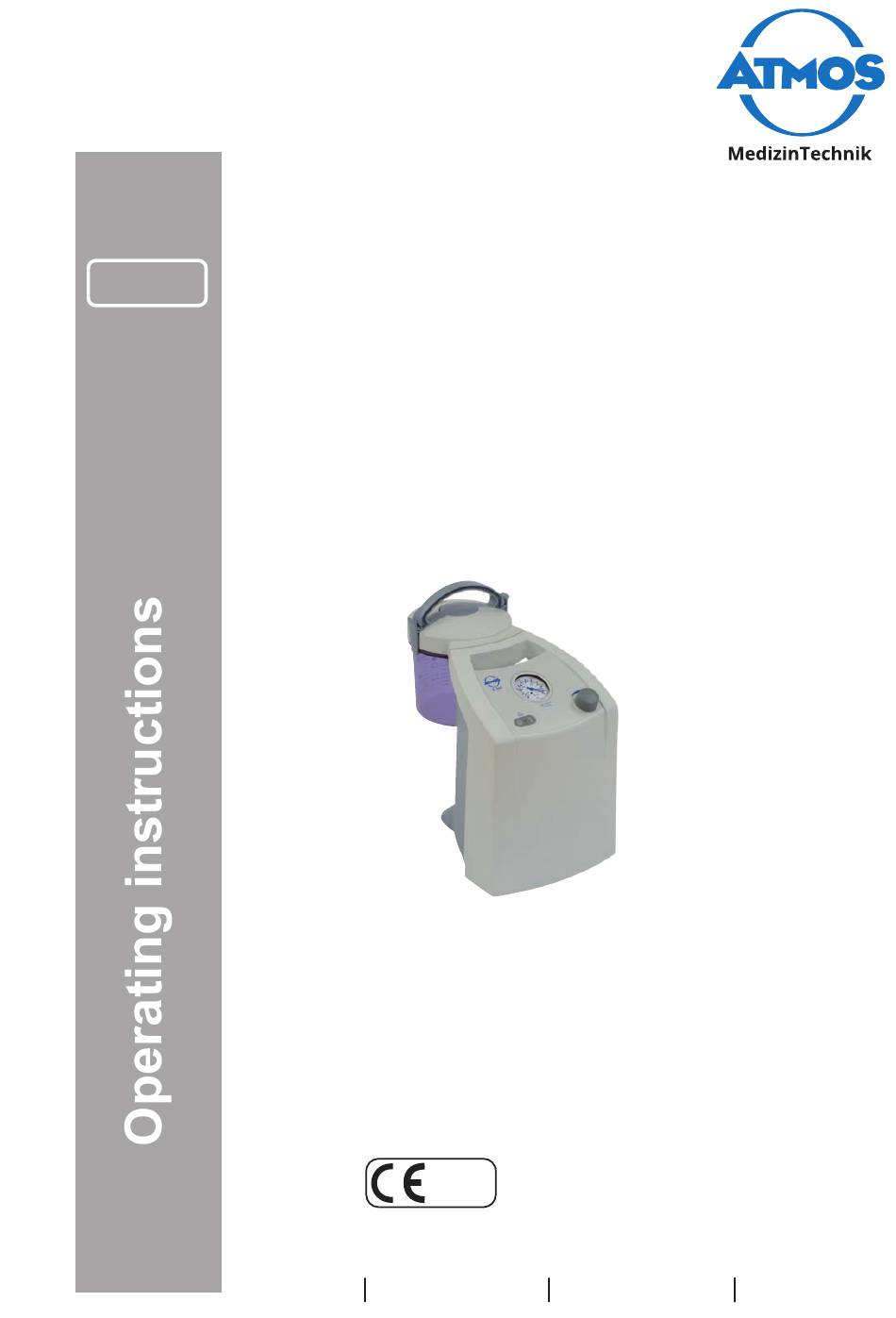

  • Page 1 English ATMOS C 361 Surgical suction device GA1EN.210101.0 0124 2020-12 Index 20 ATMOS MedizinTechnik Ludwig-Kegel-Str. 16 Tel. +49 (0) 7653 / 6 89-0 atmos@atmosmed.de GmbH & Co. KG 79853 Lenzkirch / Germany Fax +49 (0) 7653 / 6 89-190 www.atmosmed.de...

  • Page 2: Table Of Contents

    .........15 Cleaning and disinfecting the device surface15 Recommended instrument disinfectants .....15 Recommended surface disinfection ....16 Recommended cleaning agents ......16 ATMOS Maintenance ............16 MedizinTechnik GmbH & Co. KG Replacing the fuse ..........17 Ludwig-Kegel-Straße 16 Sending in the device..........17 79853 Lenzkirch Troubleshooting ..........17...

  • Page 3: Introduction

    Notes on Operating Instructions These operating instructions contain important notes on  how to operate the ATMOS C 361 safely, correctly and effectively. Therefore, they are intended not only for new operating personnel to be instructed in its use, but also for use as a reference manual. They help to avoid risks, and also to reduce repair costs and down-times.

  • Page 4: Intended Use

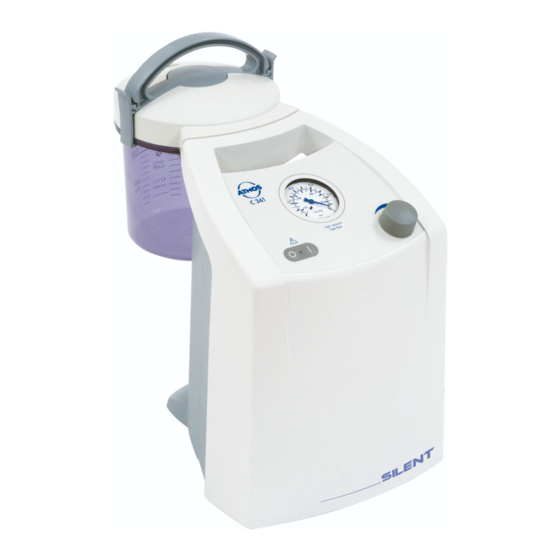

    Function ● The ATMOS C 361 is a mains-operated surgical suction device, the core of which is a high-performance dia- phragm-type pump. The pump generates a vacuum inside the hose and secretion canister system, allowing secretions to be withdrawn and collected.

  • Page 5: Explanation Of Symbols

    1.0 Introduction Explanation of symbols Attention, observe operating instructions! Serial number Order number Follow operating instructions (blue) IPX 1 Degree of protection Equipment safety fuse Potential equalisation Professional disposal Applied part type BF Eurasian conformity Alternating current GOST Certificate (Russia) Device from protection class II Device off Device on Observe the operating instructions...

  • Page 6: For Your Safety

    IEC 601-1-2 / EN 60601-1-2 „Electromagnetic compatibility - Medical ● The ATMOS C 361 may only be used in supervised operation Electrical Devices“. by qualified personnel (IEC 601-1/EN 60601-1). ● The warranty period for this device is 2 years. This period ●...

  • Page 7: Assembly

    3.0 Assembly ● Always place the device on a firm and level surface. Fig. 1. Operating elements  On/off switch with pilot lamp  Vacuum gauge  Vacuum regulator    Fig. 2. Vacuum connection: Direct-Docking-System  The vacuum connection between the pump and the se- cretion canister is created automatically as soon as the DDS canister is positioned correctly! Fig.

  • Page 8: Connection Area In The Device Base

    3.0 Assembly Connection area in the unit base Connect the power cable.  Use only power cable with angled inlet connector for non-heating appliances! ● Check that the mains voltage and mains frequency spec- ified on the device correspond to the values of the mains power supply. Fig. 4.

  • Page 9: Operation

    4.0 Operation Insert / remove the DDS bacterial and viral filter / oversuction stop  Please wear gloves while changing the DDS bacterial and viral filter! Fig. 5. Using the DDS splash protection Fig. 6. Attach / remove DDS secretion canister lid ●...

  • Page 10: Attach/Remove Dds Canister Handle

    4.0 Operation Attach DDS secretion canister handle ● Insert the DDS secretion canister handle into the grooves of the lid with the snap-in hooks open. Fig. 9. Close / open the secretion canister handle ● To close, secure the snap-in hooks under the edge of the secretion canister, and then press the clips towards the middle of the canister until they lock into place.

  • Page 11: Insert Dds Hose Adapter

    4.0 Operation Insert DDS hose adapter ● Press the required DDS hose adapter with 6 mm or 10 mm diameter into the opening “patient” on the DDS canister lid twisting slightly to ensure a tight fit. ● Twist slightly in the same manner when removing. Fig. 12. Connect hose Fig. 13. 4.10 On / Off switch ●...

  • Page 12: Suction

     Before each use, check that the DDS bacterial and viral filter / oversuction stop is dry and clean. Replace the DDS bacterial and viral filter with a new DDS bacterial and viral filter if it is discoloured, contaminated or oversucked.  Only use original ATMOS DDS bacterial and viral filters!  Never operate the device without a DDS bacterial and viral filter / oversuction stop!  Replace the DDS bacterial and viral filter every time you clean or disinfect the DDS secretion canister system.

  • Page 13: Options

    5.0 Options Trolley with standard rail ● A trolley with a standard rail which can also be used with disposable systems is available for mobile use, if neces- sary. ● Always position the trolley on a flat, stable surface. Fig. 16. 5.1.1 Securing the unit  It is only possible to ensure safe operation as a mobile suction device by using the special trolley available for use with the device.

  • Page 14: Use Of Suction Device With Disposable Systems

    5.0 Options Use of suction device with disposable systems ● Optionally, the suction device can also be used as a tabletop unit with disposable suction systems that can be attached to a standard rail. ● This requires the standard rail adapter of the respective disposable system.

  • Page 15: Cleaning And Care

    6.0 Cleaning and care General information on cleaning  Release all the hose connections, remove the DDS hose and disinfection adapter from the DDS canister lid, open the lid, empty the rinsing canister and dispose of the suction material prop- erly.

  • Page 16: Recommended Surface Disinfection

    The unit does not require any further maintenance.  At least every 24 months a repeat test of the electrical safety should be performed according to IEC 62353. In this context, ATMOS  recommends conducting an inspection in accordance with the manufacturer‘s specifications. Repairs The following may require repairs from the manufacturer or an authorized service partner.

  • Page 17: Replacing The Fuse

    Send the product to ATMOS or your dealer.  8.0 Troubleshooting The ATMOS C 361 was subjected to a thorough quality control in the factory. If there is, nevertheless, some malfunction, you possibly might solve this problem yourself if you observe the following instructions. Problem...

  • Page 18: Spare Parts And Accessories

    9.0 Spare parts and accessories Spare parts Description Article-No  DDS-canister handle, grey ......340.0055.0  DDS-canister handle, blue ......340.0326.0  Hydrophobic DDS-bacterial and viral filter/over- suction stop, disposable part, 10 pcs..340.0054.0  DDS-hose adapter set Ø 6 + 10 mm ..340.0057.0 ...

  • Page 19: Accessories

    DDS-splash protection................. 340.0056.0 DDS-hose adapter set, Ø 6 + 10 mm ............340.0057.0 9.2.2 Accessories for the ATMOS C 361 with trolley Trolley with standard rail ................320.0070.1 DDS-standard rail adapter with vacuum connection for the use of disposable systems at the unit ..........340.0059.0 Grad.

  • Page 20: Technical Data

    10.0 Technical data Suction capacity of pump 36 ± 4 l/min Max. vacuum -91 kPa (- 910 mbar or 682.5 mmHg)* @ sea level Vacuum display −1…0 bar ± 16 mbar (class 1.6), ø 63 mm Secretion canister 1.5 l or 3 l canisters made of polysulphone or 1.5 l, 2 l, 3 l Receptal®- System, also 2 canisters on trolley Hose connections...

  • Page 21: Checking/Reprocessing/Disposal

    (Used Electrical Appliances Register), this type of device is excluded from ElektroG regulations. In order to guarantee proper disposal of your old device, please either pass it on to your specialised dealer or send it directly to ATMOS Medizin- Technik GmbH &...

  • Page 22: Notes On Emc

    12.2 Guidelines and Manufacturer's Declaration - Immunity The ATMOS C 401 and ATMOS C 361 are intended for use in the electromagnetic environment specified below. The customer or user of the ATMOS C 401 and ATMOS C 361 should ensure that it is used in such an environment. IEC 60601- Test Compliance Electromagnetic Environ-...
  • Page 23 12.3 Guidelines and Manufacturer's Declaration - Immunity The ATMOS C 401 and ATMOS C 361 are intended for use in the electromagnetic environment specified below. The customer or user of the ATMOS C 401 and ATMOS C 361 should ensure that it is used in such an environment. IEC 60601- Test Compliance Electromagnetic Environment -...
  • Page 24 ATMOS C 401 and ATMOS C 361 The ATMOS C 401 and ATMOS C 361 are intended for use in the electromagnetic environment specified below. The customer or user of the ATMOS C 401 can help prevent electromagnetic interference by maintaining a mini- mum distance between portable and mobile HF communication equipment (transmitters) and the ATMOS C 401 and ATMOS C 361 as recommended below, according to the maximum output power of the communications equipment.

  • Page 25: Notes

    Notes...
  • Page 26 Notes...
  • Page 27 Notes...
  • Page 28 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Str. 16 79853 Lenzkirch / Germany Phone: +49 7653 689-0 atmos@atmosmed.com www.atmosmed.com...
