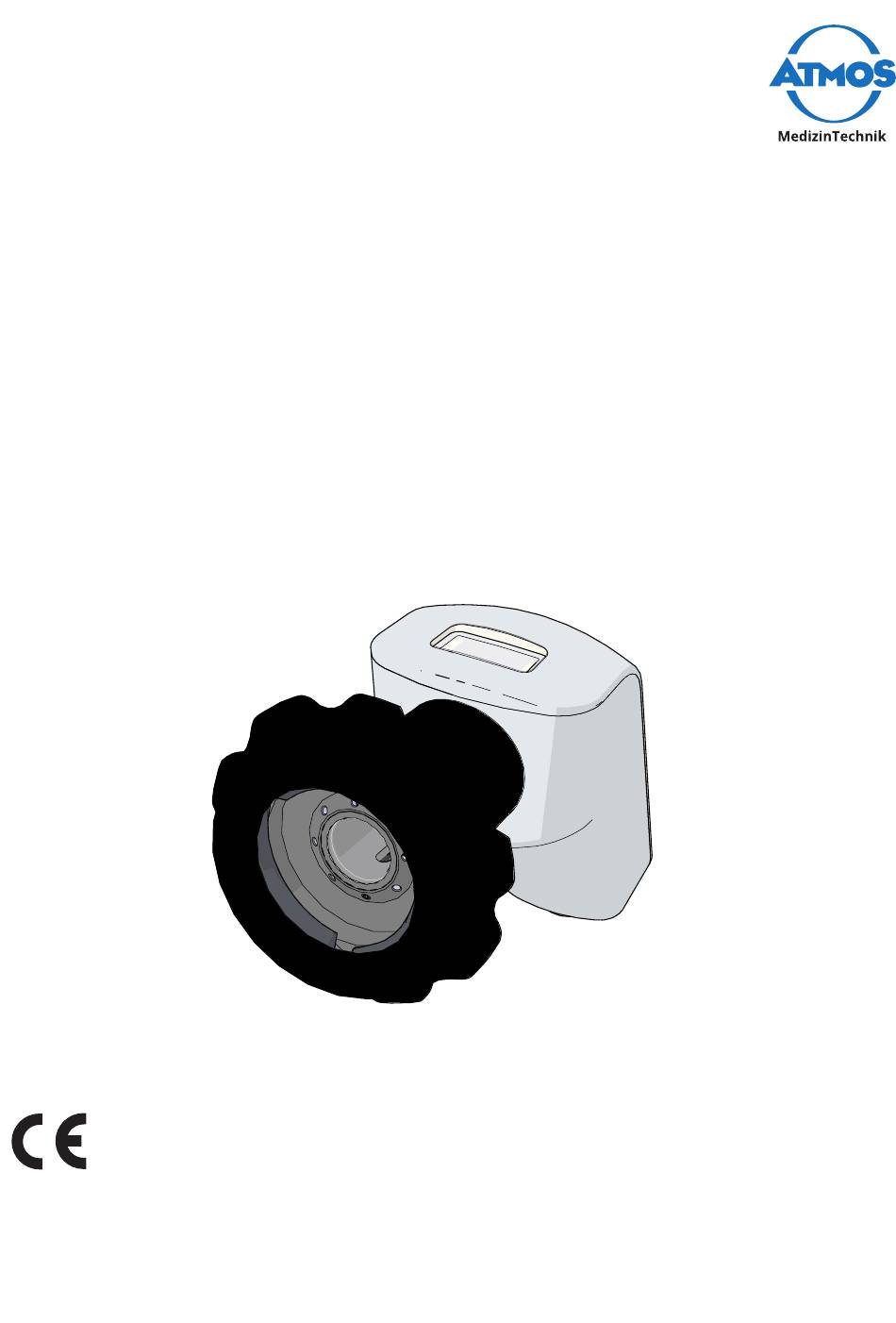

- Page 1 Operating Instructions ATMOS iQam English GA1GB.150405.0 2021-06 Index 05...
-
Page 2: Table Of Contents
Device overview ..................10 Using with other devices ................ 10 Preparing the device ................10 Installation of the Capture Suite Basic ..........11 3.5 Configuration of the ATMOS iQam in the Software ......11 Switching on ..................... 11 Settings and operation ................12 Operation ..................13 Ambient conditions during operation ..........13 Switching on the device ................ - Page 3 Spare parts ..................27 Disposal ..................... 28 Technical data .................. 29 Notices on EMC ................. 31 Further information, accessories, consumables and spare parts are available from: ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Str. 16 79853 Lenzkirch Germany Phone: +49 7653 689-0...
-
Page 4: Introduction
The Declarations of Conformity and our General Terms and Condi- tions can be viewed on our website at www.atmosmed.com. The quality management system at ATMOS has been certified accord- ing to international standard EN ISO 13485. These operating instructions are valid for the following products: • ATMOS iQam 507.6000.0 Introduction... -
Page 5: Explanation Of Pictures And Symbols
Explanation of pictures and symbols In the operating instructions DANGER Warning of a danger that will result in immediate fatal or serious injury. Ob- serve the necessary measures. WARNING Warning of a danger that can cause fatal or serious injury. Observe the neces- sary measures. -
Page 6: Intended Use
Order number IP68 Degree of protection Protection class (EN 60601-1) ll Professional disposal Intended use Name: ATMOS iQam Medical indications / Imaging of diagnostic endoscopy in ENT medicine application: Specification of the Endoscopic camera for the digitalization of the endo- main function:... -
Page 7: Function

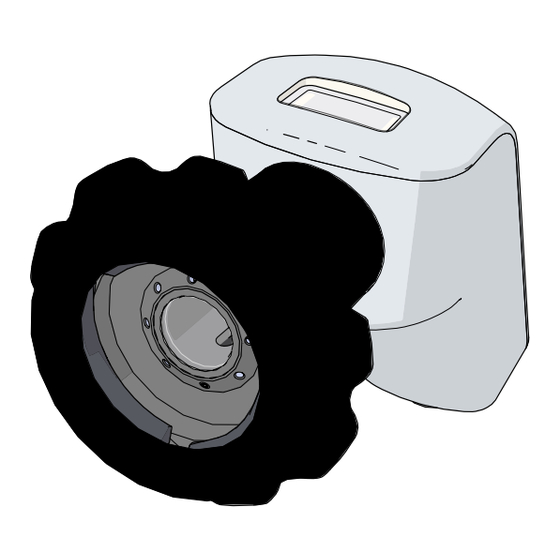

Function The ATMOS iQam is a camera for digitizing an endoscopic image. Via the endo- scope coupler a medical endoscope can be fitted single-handedly, this is detected automatically and the optimal camera settings are used. The camera will switch on automatically when you move or change the image and will automatically go into standby mode after use. -
Page 8: Notices For Your Safety
The product uses vibration as haptic feedback. When used in combination with the ATMOS Capture Suite Basic software, the vibration can be deactivated. Danger for users, patients, and third parties Electric shock due to unsuitable power connection, incorrect handling of the product, or damage to product components Slight injuries are possible. -
Page 9: Avoiding Damage To The Device
• If the camera fails, then use the endoscope without the camera. • ATMOS recommends: Only use the original ATMOS software. Risk of infection by germs on the product! Diseases could be transmitted. • Always wear disposable gloves when using the product. -
Page 10: Setting Up And Starting Up
Using with other devices Only qualified personnel are authorized to install electrical systems. The man- ufacturer of an electrical medical system is responsible for ensuring that the performance, safety, technical data, and intended use of the ATMOS iQam are not impaired. Observe the following information when connecting the device in the required combination: •... -
Page 11: Installation Of The Capture Suite Basic
Connecting to a PC Connect the camera cable (USB connector) to a PC. Connecting to an ENT treatment unit (ATMOS S 61 Servant vision or ATMOS S 61 CORIAN® integral) Connect the camera cable (ATMOS connector plug) to the corresponding connection on the respective ENT treatment unit. -
Page 12: Settings And Operation
Settings and operation The setting options in live mode are shown in the following image: Live image saved image / video Camera settings sequences zoom in or out Options Close Photograph Video recording Start/ Stop The language, storage paths and camera sources can be set using the "Options button"... -
Page 13: Operation
Operation Ambient conditions during operation • Temperature: +10...+35 °C • Relative humidity: 20...80 % air humidity without condensa- tion • Air pressure: 700...1060 hPa Switching on the device Remove the camera from the camera mount or from the shelf. » The camera turns on. » The camera vibrates 2x. »... -
Page 14: Removing The Endoscope
4.4.2 Removing the endoscope Securely hold the endoscope and turn the release lever to the right. » The endoscope is released from the camera. Adjusting the image 4.5.1 Focusing the image Launch the software. Turn the focusing ring. 4.5.2 Zooming Launch the software. -
Page 15: Capturing A Photo
Otherwise, use a white-gray surface. Open the window camera settings Click the white balance button. Changing the settings You need the ATMOS Capture Suite software to use these functions. Observe the operating instructions for the ATMOS Capture Suite software. Operation... -
Page 16: Disabling Functions
4.9.1 Disabling functions You can disable the following functions: Auto strobo function Display of the stroboscope parameters and the corresponding camera settings while stroboscoping Haptic feedback Vibration of the camera Tap function Response when tapping camera head LED status indicator Status indicator Automatic changeover Automatic changeover of video source... -
Page 17: Changing Actions By Tapping On The Camera Head
Launch the ATMOS Capture Suite Basic software. Open the window camera settings Select the ATMOS iQam tab. Remove the check mark in the corresponding check box. 4.9.2 Changing actions by tapping on the camera head Launch the ATMOS Capture Suite Basic software. - Page 18 Reprocessing Safety instructions for reprocessing 5.1.1 General safety instructions We recommend that you always document all maintenance work and part replacements in writing. It is the responsibility of the user to ensure that the required results of cleaning and disinfection are achieved. Validation and routine monitoring of the proce- dure will usually be necessary.
-
Page 19: Further Cleaning Instructions
Unsuitable cleaning agents and disinfectants. Risk of damage to the product. • Do not use any process chemicals containing the following ingredients on plastic parts: • Chloramide or phenol derivatives 5.1.4 Further cleaning instructions Image quality could be affected even by the slightest contamination, such as fingerprints. After use, the camera can be protected from dust by storing it on the designated camera mount or by covering it. The external surfaces of optical components should only be cleaned when necessary. -
Page 20: Selecting Process Chemicals
5.3.2 Selecting process chemicals Observe the manufacturer’s specifications for the process chemicals. Product (manufacturer) Active ingredients in 100 g Cleaning agents – manual reprocessing Tristel Wipes® (Tristel Oxidizing agent Wipes GmbH) Propan-2-ol Ready-to-use neodisher® Enzymatic Liquid MediClean forte (Dr. <5 % nonionic and anionic surfactants, enzymes Concentrate Weigert) mikrozid®... -
Page 21: Procedure
Product (manufacturer) Active ingredients in 100 g Gigasept® FF Aldehydes Liquid (Schülke & Mayr) Reaction product of DMO-THF, ethanol and water, concentrate Phosphonates, anionic and non-ionic surfactants, perfumes, methylisothiazolinones Revital-Ox® Resert® Enzymatic Liquid (Steris) 2-furancarboxylic acid, hydrogen peroxide, potassium hydroxide, Concentrate phosphoric acid, 1-hydroxyethane-1, 1-diphosphonic acid Cidex OPA (ASP)®... -
Page 22: Maintenance And Service
For design reasons it is not possible to repair the ATMOS iQam on site. Always send defective devices to an authorized ATMOS Partner for repair. ATMOS does not accept any liability for damage resulting from unauthorized interventions. -
Page 23: Sending In The Device
The device must be well padded and packed in suitable packaging. Place the QD 434 "Delivery complaint / return shipment" form and the respective decontamination certificate in an envelope. Affix the envelope to the outside of the package. Send the product in to ATMOS or your dealer. Maintenance and service... -
Page 24: Troubleshooting
Error symptom Possible cause Remedy The status indicator Technical defect. Contact an authorized ATMOS lights up yellow. service partner. The camera does not Color settings are Colors may be displayed... -
Page 25: Accessories
• Selection of different cameras ATMOS patient database for processing diagnostic results. Optimizing the video signal (brightness, definition, con- trast). Scope of delivery: • Right of use for the ATMOS Capture Suite HD • Licensing via dongle ATMOS Controller for visualization 507.6200.0 High-performance compact PC for the medical environ- ment. - Page 26 Accessories ATMOS Medical Monitor 21.5” Touch 507.3128.0 The ATMOS Medical Monitor 21.5“ Touch is an especially flat compact monitor for use in the medical environment. Completely enclosed metal housing, double-coated safety glass plate, backlit keypad with power switch, status indicator, and brightness control. Remote On for the ATMOS Compact PC and ATMOS Controller.
-
Page 27: Spare Parts
Spare parts Spare part ATMOS iQam camera head 507.6036.0 Without camera cable ATMOS iQam camera cable USB 507.6028.0 For connection to a PC. For transmission of image and control information of the ATMOS iQam. Spare parts... -
Page 28: 10 Disposal
The product does not contain any hazardous materials. Clean and disinfect the product. In Germany: send the product back to ATMOS or your special- ist dealer. They will dispose of the device professionally. For other countries: Dispose of the product properly and in accordance with country-specific laws and regulations. -
Page 29: 11 Technical Data
11 Technical data ATMOS iQam Voltage 5 V (USB 2.0) Current consumption Max. 0.5A (USB 2.0; 5 V ) Power consumption Max. 2.5 W Other power sources None Fuses Other safety equipment Performance parameter 1 Performance parameter 2 Operating time Continuous operation Protective earth conductor resistance Earth leakage current... - Page 30 Protection class (EN 60601-1) Degree of protection Application parts type BF Type of protection IP 68 Classification according to Class I according to regulation 12 Annex IX, EC Directive 93/42/ CE marking GMDN code 17002 UMDNS code 17-002 MD/MDS code MDA 0204 ID No.
-
Page 31: 12 Notices On Emc
• Environment in professional healthcare facilities such as doctor’s practices, clinics, or first-aid facilities as well as operating rooms and outside of the HF-shielded room of a magnetic resonance imaging system. The customer or user of the ATMOS iQam must ensure that the device is used in a prescribed environment. Guidance and manufacturer’s declaration – key features ... - Page 32 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Straße 16 79853 Lenzkirch/Germany Phone: +49 7653 689-0 info@atmosmed.de www.atmosmed.com...
