USER MANUAL
Ascom d83 DECT Handset
2

Descriptions

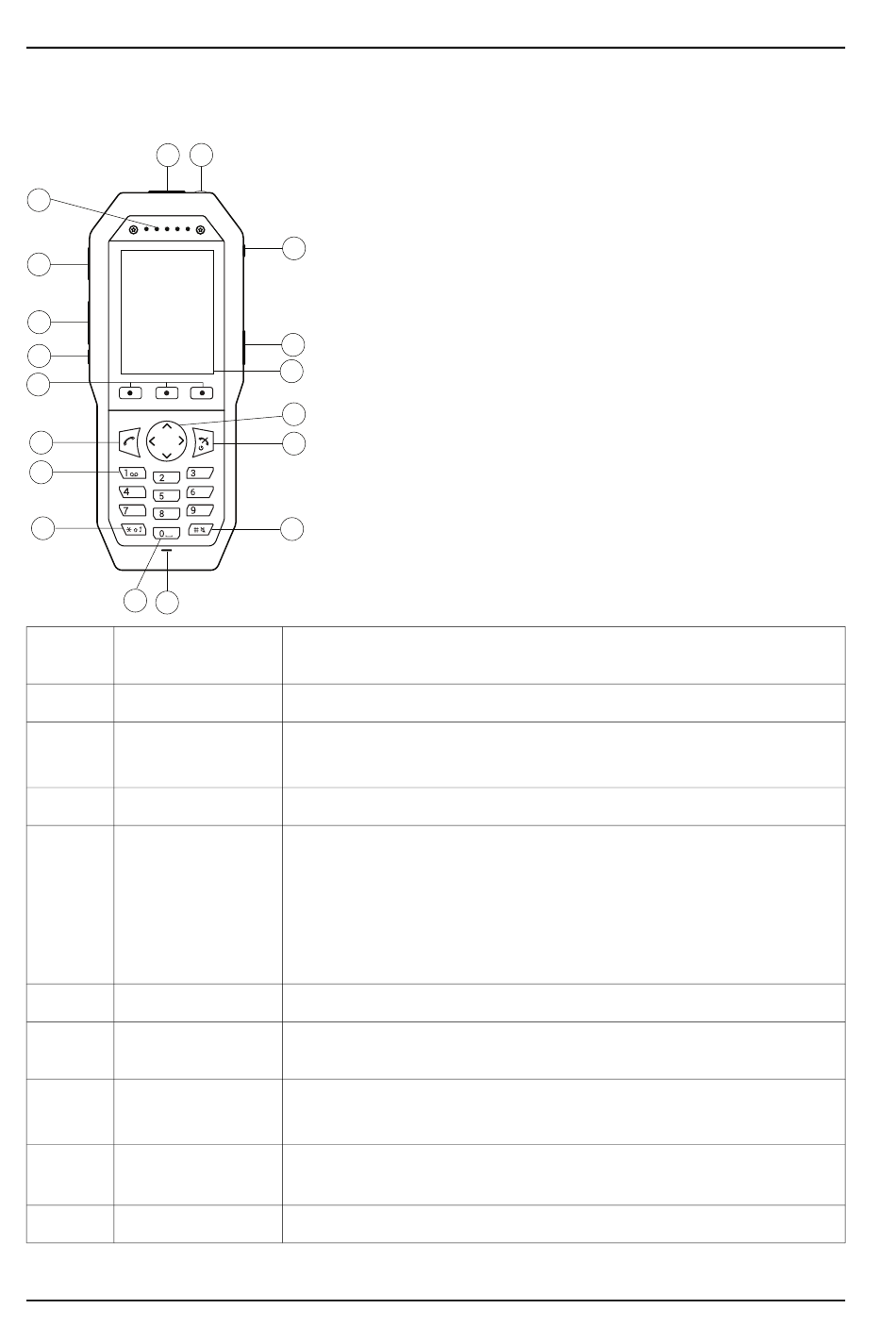

Figure 1. Description of the handset
1
18
17
16
15
14
13
12
ABC
GHI
JKL
PQRS
TUV
11
10
9
Number External
Characteristics
1 Alarm button
2 LED indicator
3 Pull-cord connector
4 Multifunction
button 2
5 Color display
6 Navigation keys
7 On-Hook key
On/off key
8 Sound off key
9 Microphone
TD 93434EN / 01 December 2021 / Ver. B
2
3
4
5
6
7
DEF
MNO
WXYZ
8
Description
Available only for Protector, the button is a push-button alarm.
Muticolor LED indicator. Available only for Messenger and Protector,
Talker has only green, orange and red colors.
Available only for Protector, it is used for pull-cord alarm functionality.
The button can be configured for different functions. The function can
be used both with long and multiple press.
Only multiple press is configured by default to put the device in sleep
mode.
NOTE: If configured, the button can be specifically used as a PTT
button.
2.4-inch TFT full color display with backlighting.
Left, right, up, and down navigation keys. These keys can be configured
for shortcuts.
Used for ending a call, returning to Idle mode, and by a long press for
switching the handset on/off.
Used for turning on/off audible signals in Idle mode, silencing the ring
signal at incoming calls, and turning on/off the microphone during calls.
Used in voice communication.
Descriptions
