Descriptions

Volume button
Navigation key

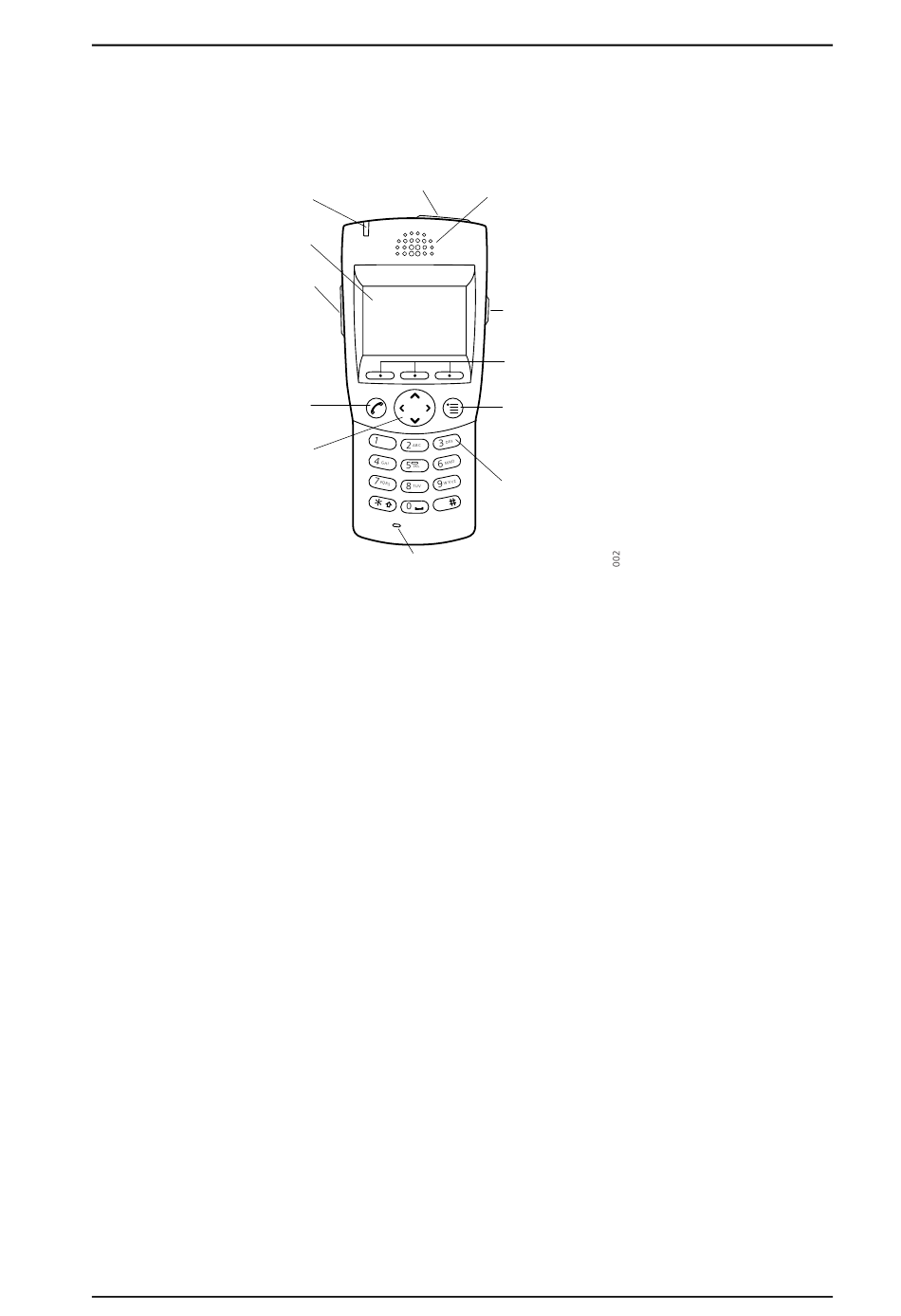

Figure 1. Description of the handset.
2.1

The 9d24 Mkll Cordless Telephone

Case
The case is made of durable PC/ABS plastic and is water, dust and soil protected. The joint
between the front and rear parts of the handset casing has a gasket made of elastic
plastic (thermoplastic polyester elastomer, TPE), as does the battery. Even the headset
connector has a tightening TPE gasket, preventing dust and water from getting inside
also when the headset is not connected.
The 9d24 Mkll Handset has the enclosure protection IP64 which means that dust (talcum
powder) and splashing water can not penetrate the handset. It also fulfils IEC 60068-2-32
procedure 1, witch means that it is tested to stand for 2 falls on each side, (totally 12 falls)
from the height of one meter onto painted concrete floor.
The alpha and numeric characters printed on the exterior of the 9d24 Mkll Handset have
been tested and found resistant to chipping, fading or wearing off when the handset is
treated with common cleaners and disinfectants or perspiration. The following chemicals
have shown no harmful effect:
3% Hydrochloric Acid
M-alcohol (70% Methylated Ethanol)
60% Chlorhexidin 0.5mg/ml
Antenna
The antennas are integrated inside the handset.
2007-02-07/ Ver. D
Figure 2.
Alarm button
LED
Display
Call key
Microphone
Loudspeaker
Mute button
Soft keys
Menu key
Alpha numeric keys
TD 92333GB
3
