3. Vehicle Connection

To get full and right diagnosis function, user needs to connect the H6 Elite tablet

and vehicle properly.

①: H6 Elite Tablet

②: Main cable

③: OBDII-16 Adapter (Select other adapters when the diagnostic port is a non-standard OBDII

16pin connector)

④: Diagnosed vehicle

Connection step:

1. Turn on the car ignition switch, and H6 Elite Tablet

2. Choose proper OBD II adapter, and connect it with the main cable and

vehicle

Open diagnosis app, and select the function for vehicle fault diagnosis

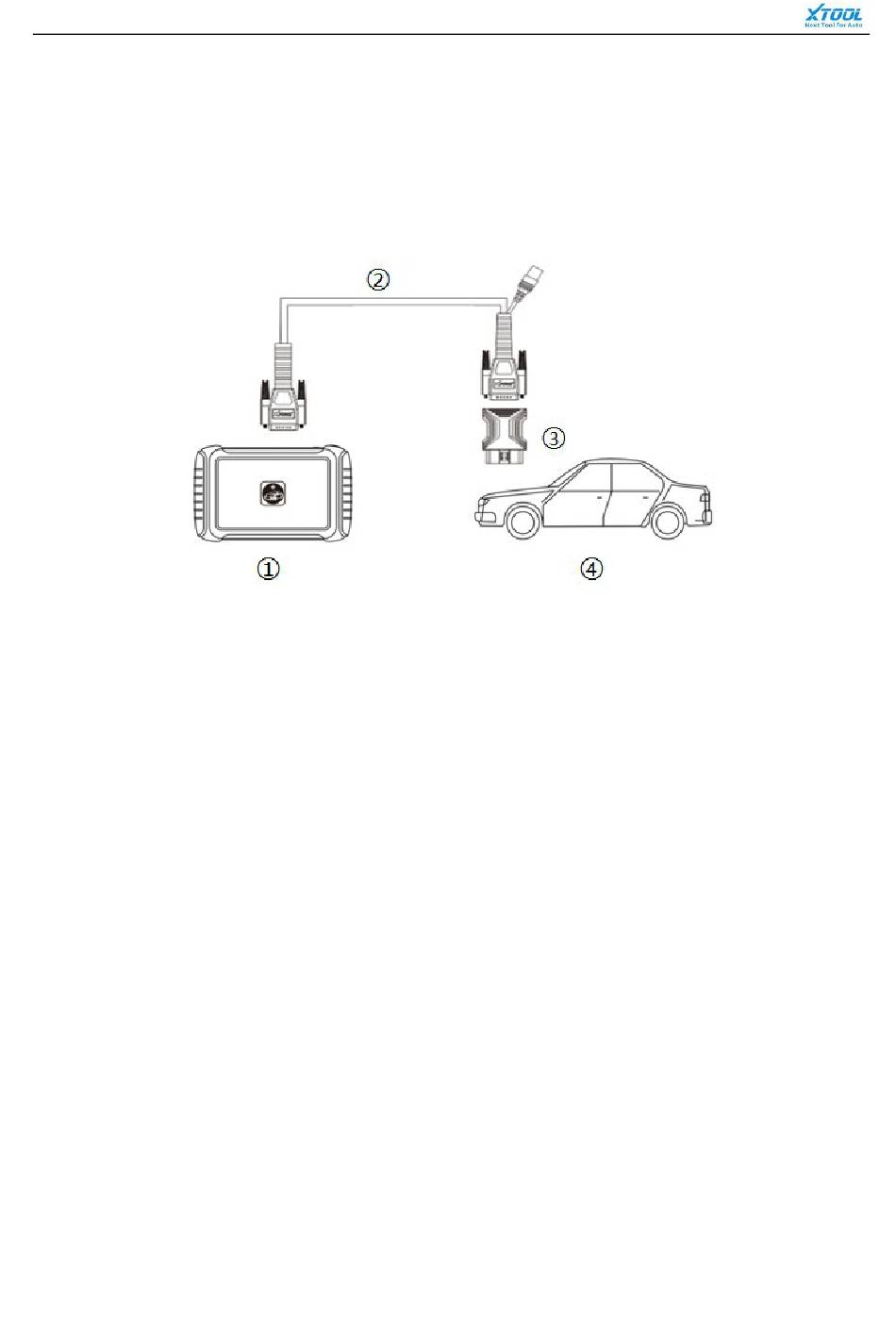

(Vehicle connection diagram)
