2.6.2 Wiring Examples
5.
6.
7.
8.
2.6.2 Wiring Examples

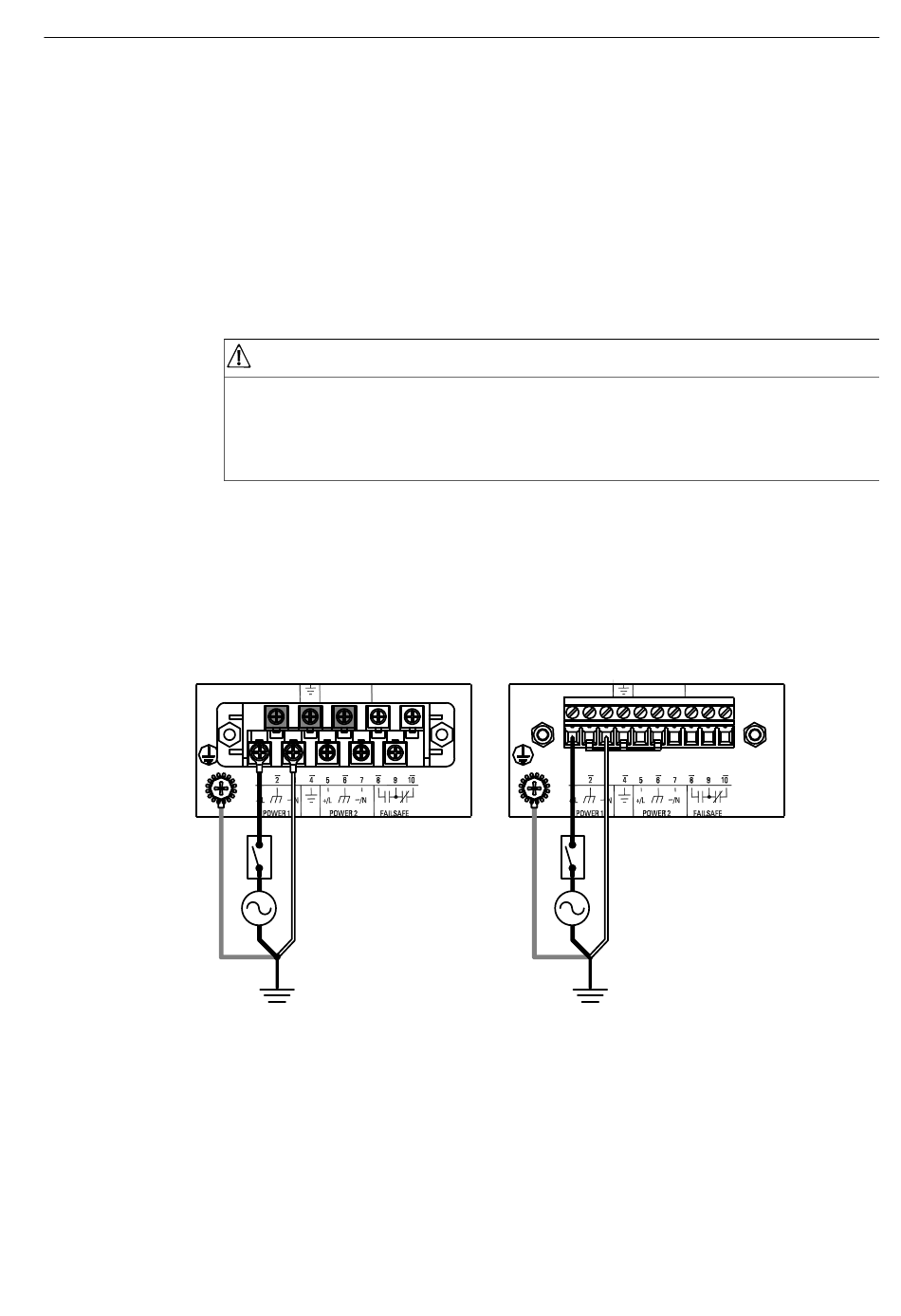

The following illustrate how to connect power to single and dual power supplies.
Figure 2.7
18
Connect the negative wire from the power source to the negative/neutral (-/N)
terminal on the terminal block.
Install the supplied metal jumper between terminals 2, 4 and 6 to connect
the surge ground terminals to the chassis ground terminal. The surge ground
terminals are used as the ground conductor for all surge and transient
suppression circuitry internal to the unit.
Connect the ground terminal on the power source to the chassis ground
terminal on the device. For more information, refer to
(Page 15)".
DANGER
Electrocution hazard – risk of death, serious personal injury and/or damage
to the device
Make sure the supplied terminal block cover is always installed before the
device is powered.
Install the terminal block cover.
Single AC Power Supply
"Grounding the Device
RUGGEDCOM RS416F
