To mount the device to a DIN rail, do the following:
1.
2.
2.3.3 Mounting the Device to a Panel
For panel installations, the RUGGEDCOM RS416F can be equipped with panel/DIN rail
adapters pre-installed on each side of the chassis. The adapters allow the device to
be attached to a panel using screws.
RUGGEDCOM RS416F
Installation Manual, 04/2021, C79000-G8976-1354-04
Align the adapters with the DIN rails and slide the device into place.
2
3
Panel/DIN Rail Adapter
1
DIN Rail
2
Screw
3

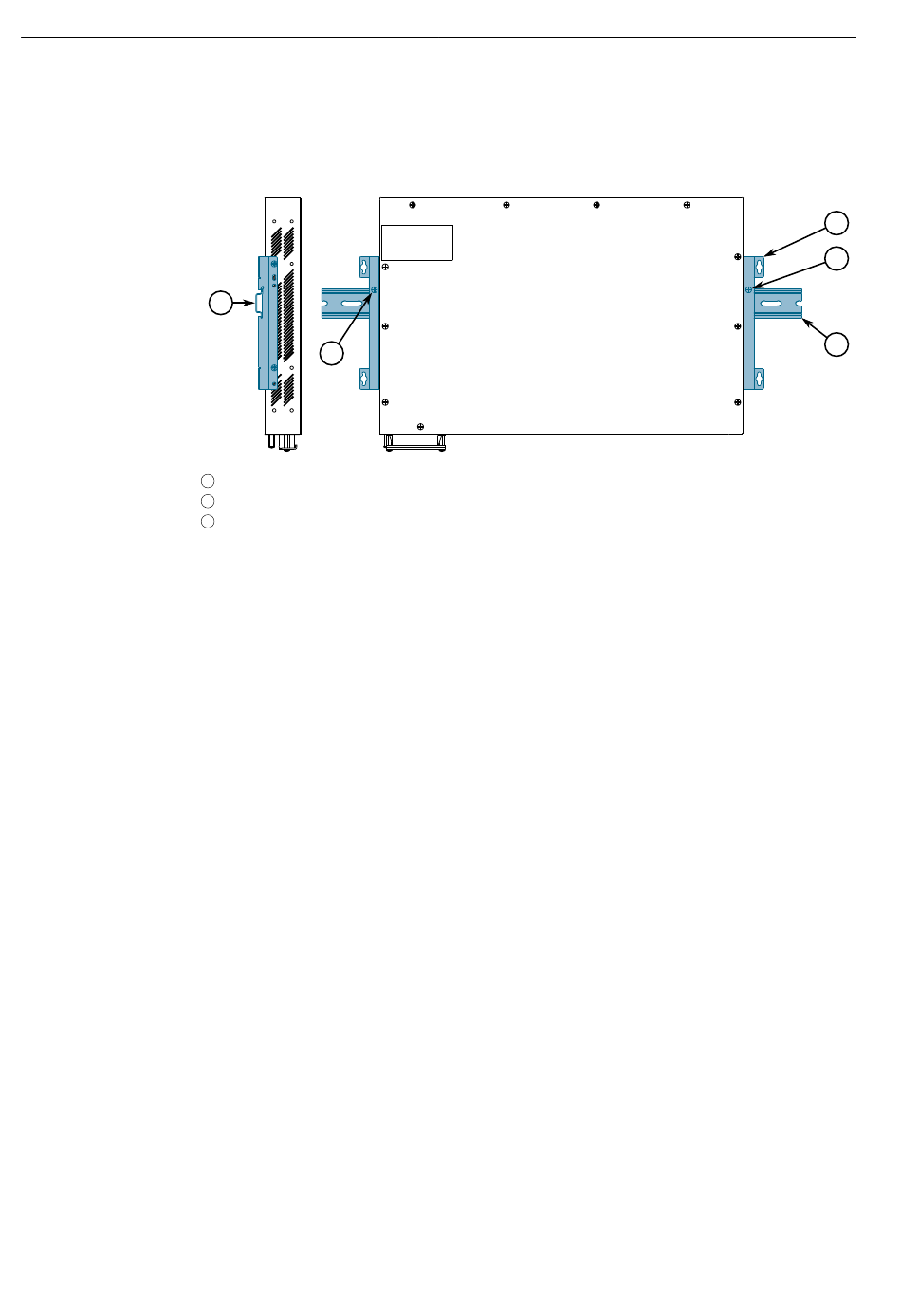

Figure 2.2 DIN Rail Mounting
Install one of the supplied screws on either side of the device to secure the
adapters to the DIN rails.
Installing Device
2.3.3 Mounting the Device to a Panel
1
3
2
13
